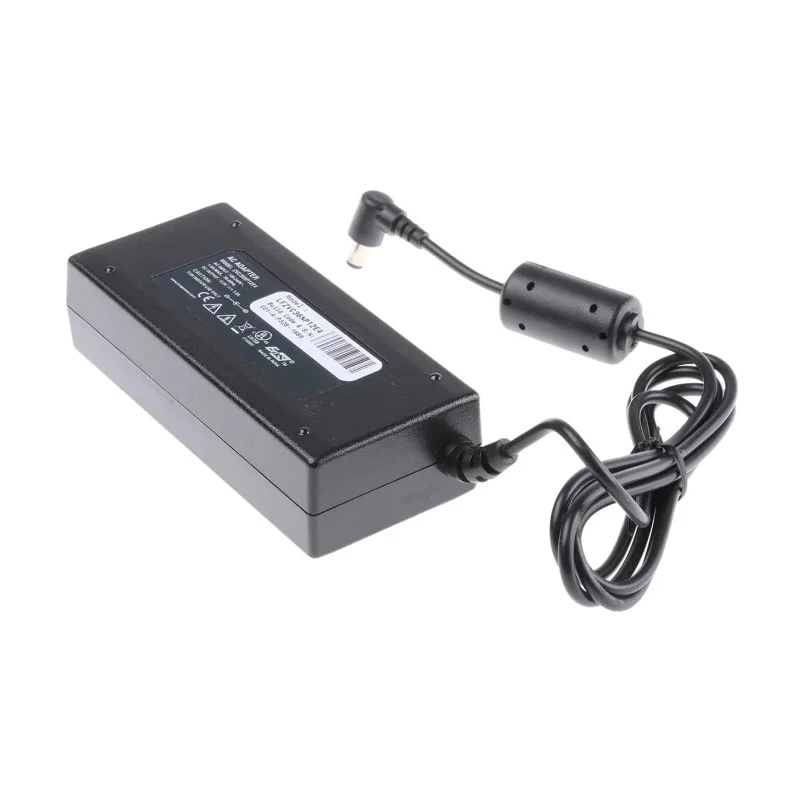

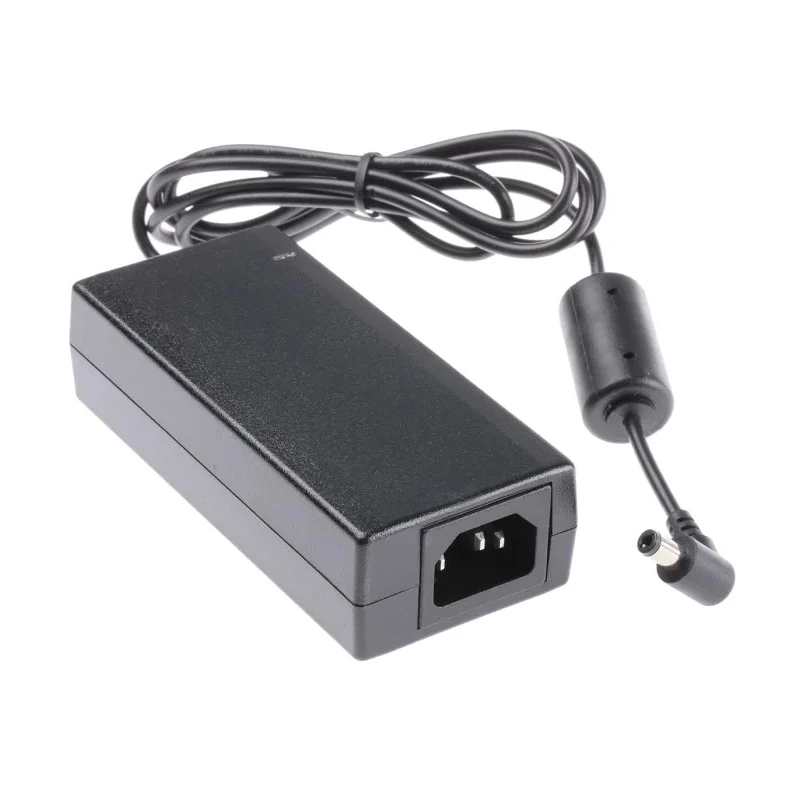

EOS 36W 12V DC Output Centre Positive Right Angle Jack Linear Power Supply AC/DC Adapter LFZVC36NP12E4

Free Delivery in India | Lowest Global Shipping Charges

EOS 36W 12V DC Output Centre Positive Right Angle Jack Linear Power Supply AC/DC Adapter LFZVC36NP12E4



Category AC/DC Adapters Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	36W
Efficiency	80%
Length	117mm
Model	LFZVC36NP12E4
Depth	31.5mm
Cable Length	1200mm
Width	53mm
Series	LFZVC36
Maximum Operating Temperature	50°C
Sub Type	Linear Power Supply
Load Regulation	5 %
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	12V dc
Standards/Approvals	ErP Compliant
Minimum Input Voltage	90V ac
Output Connector Type	2.54 x 5.54 x 9.5 mm Centre Positive - Right Angle Jack
Input Connector Type	IEC 320-C14
Adapter Current	3A
Energy Efficiency Level	V
Regulated/Unregulated	Regulated
FSP AC/DC AdapterBrand	FSP

Key Features

Compact design with dimensions 117mm x 53mm x 31.5mm.
Includes 1.2 meter output cable with right angle jack connector.
Universal input voltage range from 90V to 264V AC.
High efficiency 80% compliant with Energy Efficiency Level V.
Regulated 12V DC output at 3A with 5% load regulation.
Operates within 0°C to 50°C operating temperature range.
EMI/RFI filtered to meet EN55022-B, FCC2/15-B, CISPR22-B standards.
Suitable for laptops, multimedia, industrial, networking, and printing applications.

Product Description

EOS LFZVC36NP12E4 linear power supply AC/DC adapter provides a 36W fully regulated power output at 12V DC with a centre positive right angle jack connector (2.54 x 5.54 x 9.5 mm). It features a compact desktop design with dimensions of 117mm length, 53mm width, and 31.5mm depth, making it suitable for a wide variety of electronic components and devices.

This adapter supports universal input voltages ranging from 90V to 264V AC and incorporates an IEC 320-C14 input connector. It operates with high energy efficiency (80%, Energy Efficiency Level V) and includes protections and EMI/RFI filtering in compliance with EN55022-B, FCC2/15-B, and CISPR22-B standards to reduce interference and ensure stable operation.

The power supply delivers a regulated 3A output current with a load regulation of 5%, supporting a reliable and consistent voltage output suitable for sensitive applications. The device can operate in ambient temperatures from 0°C up to 50°C, making it versatile for industrial, laboratory, commercial, networking, and printing use cases, especially for powering laptops and multimedia devices.

Equipped with a 1.2 meter output cable terminated in a right angle jack plug, this power supply is easy to install and compatible with various equipment requiring a centre positive polarity connection.

Compact form factor with desktop power supply convenience. Wide input voltage range for global compatibility. High power efficiency reduces energy consumption and standby losses. EMI/RFI filtering ensures compliance with international standards.

Stable and regulated output suitable for sensitive electronics. Robust operating temperature range for diverse environments. Comes with 1 output and standard IEC input connection.

This EOS linear power supply is manufactured in India and designed specifically for applications needing reliable, compact, and efficient power conversion from AC to regulated DC voltage.
