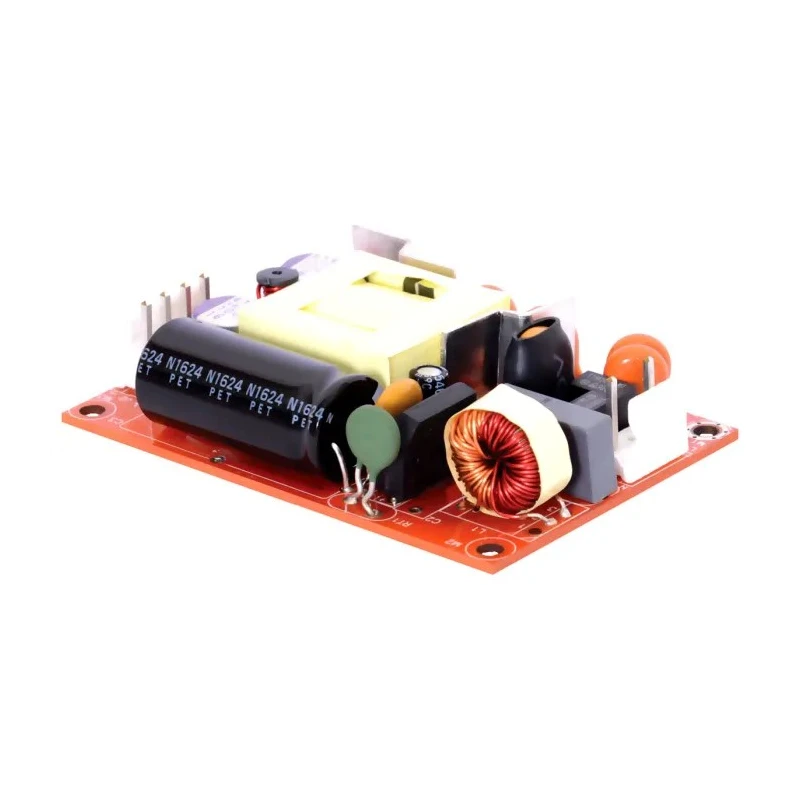

EOS 40 W Surface Mount Switching Power Supply 30V, 1.33A ULP40-1330

Free Delivery in India | Lowest Global Shipping Charges

EOS 40 W Surface Mount Switching Power Supply 30V, 1.33A ULP40-1330



Category Switching Power Supplies Brand EOS Condition New

Specifications

Country of Origin	India
Brand	EOS
Power	40W
Efficiency	85%
Length	76.2mm
Model	ULP40-1330
Depth	16.76mm
Gross Weight	100g
Width	50.8mm
Mount Type	Surface
Series	ULP
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	390V
Standards/Approvals	RoHS, NEMKO, cUL, UL
Maximum Output Voltage	30V
SMPS Output Current	1.33A
Minimum Input Voltage	264V ac

Key Features

Compact dimensions of 76.2 x 50.8 x 16.76 mm enable easy surface mounting.
Wide operating temperature range from -40°C to 70°C ensures reliable performance.
High efficiency rated at 85% reduces energy consumption and heat generation.
Maximum input voltage of 390V with a minimum input of 264V AC supports universal input.
Designed with RoHS, NEMKO, cUL, and UL approvals for industrial safety compliance.
Low standby power consumption below 0.3 W for energy-saving operation.
Covered by a 2 million hours MTBF according to Telcordia SR332 - issue 3 standards.

Product Description

The EOS ULP40-1330 is a 40 W surface mount switching power supply providing a stable 30 V output voltage and a maximum output current of 1.33 A, designed for industrial and electronic applications. Its compact form factor measuring 76.2 mm length, 50.8 mm width, and 16.76 mm depth makes it suitable for limited space environments while enabling efficient heat dissipation through convection cooling.

Operating reliably across a temperature range from -40°C to 70°C, this switch mode power supply is built to withstand harsh conditions. The device boasts a high efficiency of 85%, contributing to low energy losses and reduced thermal buildup within the powered equipment.

The power supply accepts a wide input voltage range from 264 V AC to 390 V, making it compatible with various international power systems and ensuring stability under voltage fluctuations. It complies with industry safety and environmental standards, holding RoHS, NEMKO, cUL, and UL certifications, assuring safe operation and environmental responsibility.

Designed for longevity and reliability, the EOS ULP40-1330 achieves a mean time between failure (MTBF) of 2 million hours as per Telcordia SR332 - issue 3. The unit also features low standby power consumption of less than 0.3 W, reducing overall system energy use during idle periods.

This switching power supply is ideal for industrial machinery, electronic instruments, telecommunications equipment, and other demanding environments requiring stable DC power. It can be mounted on surfaces easily due to its compact size and comes with options for cover kits to further protect the unit as needed.

Compact dimensions and surface mount design for flexible installation. Wide temperature operation range enhances reliability in harsh environments. High efficiency minimizes wasted energy and heat generation. Universal input voltage range supports global compatibility.

Certified to multiple international safety and environmental standards. Extended MTBF ensures long-term stable operation. Low standby power consumption improves energy efficiency. Explore more options within the EOS Switching Power Supplies series on EnvMart for comprehensive power solutions.
