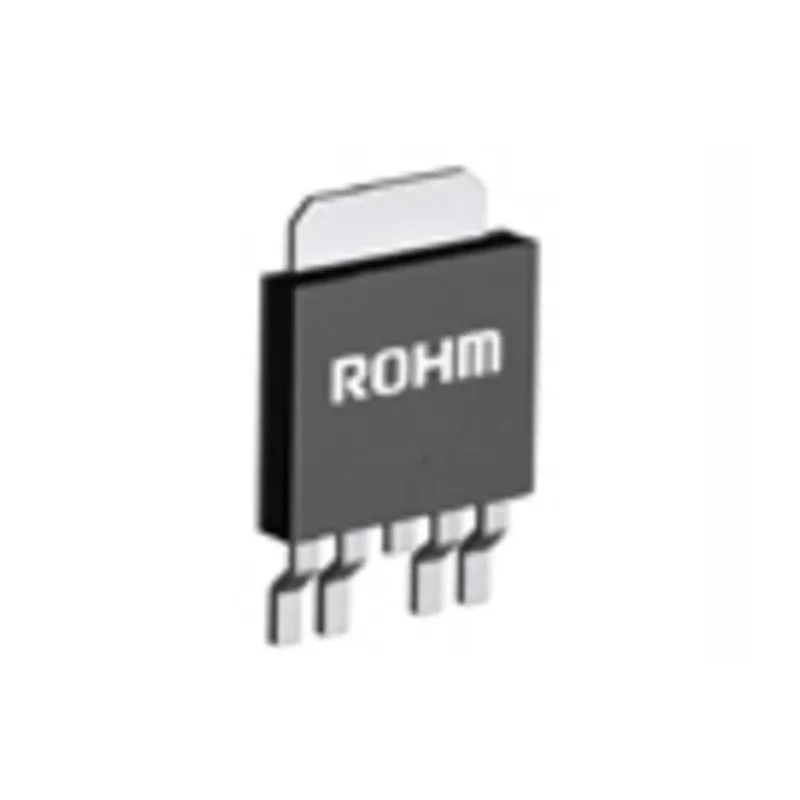

ROHM Voltage Regulator 25V HRP 5-Pin Surface Mount 2A Maximum Current BA00DD0WHFP-TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM Voltage Regulator 25V HRP 5-Pin Surface Mount 2A Maximum Current BA00DD0WHFP-TR

Name: ROHM Voltage Regulator 25V HRP 5-Pin Surface Mount 2A Maximum Current BA00DD0WHFP-TR
Brand: ROHM
SKU: 149959



Category Voltage Regulators Brand ROHM Condition New

Specifications

Country of Origin	India
Voltage	Regulators ROHM, Voltage Regulator 25V HRP 5-Pin RS Stock No
Brand	ROHM
Height	1.91mm
Length	9.4mm
Model	BA00DD0WHFP-TR
Width	9.02mm
Mount Type	Surface
Series	BA00DD0WH
Maximum Operating Temperature	125°C
Package Type	HRP
Polarity	Positive
Digital Multimeter	Handy Type
Maximum Current	2A
Maximum Input Voltage	25V
Minimum Input Voltage	3V
Pin Count	5

Key Features

Operates with a maximum input voltage of 25V and minimum of 3V.
Supports a maximum current rating of 2A with PNP output transistor.
Package type is HRP with 5 pins for easy surface mount installation.
Maximum operating temperature of 125°C supports demanding environments.
Positive polarity ensures stable operation in typical power circuits.
Integrated output current limiting circuit protects against excessive current and shorts.
Ideal for applications in consumer electronics, medical devices, industrial controls, and automotive systems.

Product Description

ROHM BA00DD0WHFP-TR Voltage Regulator 25V HRP 5-Pin is a high-performance power management IC designed to provide stable and reliable voltage regulation in a compact surface mount package. It supports up to 2A maximum output current with ultra-low saturation voltage, ensuring efficiency and thermal safety during operation.

This voltage regulator is equipped with an integrated output current limiting circuit that prevents damage under excessive current conditions, including short circuits, making it suitable for a wide range of industrial, medical, and consumer electronics applications.

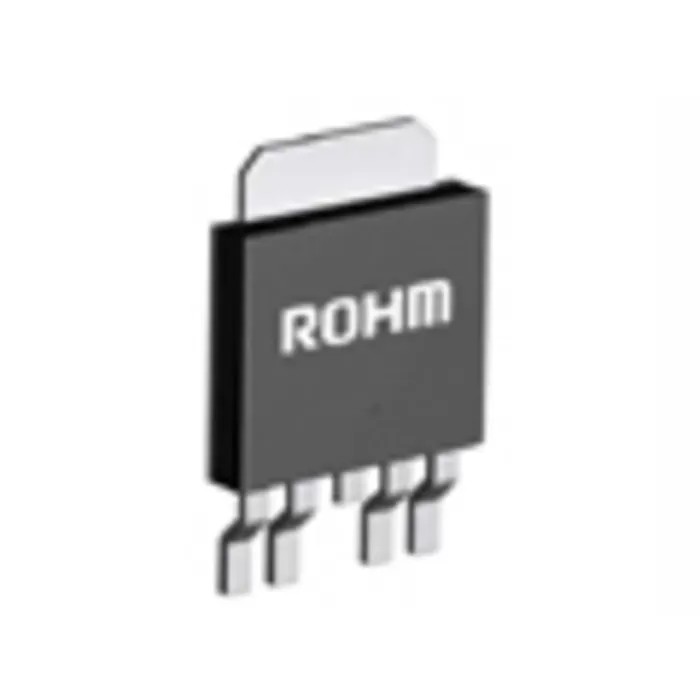

The device features a 5-pin HRP package measuring 9.4mm by 9.02mm by 1.91mm, allowing for efficient PCB layout and automated assembly in manufacturing environments.

Operating within a maximum input voltage of 25V and minimum input voltage of 3V, it is robust enough for various power supply applications, supporting operational temperatures up to 125°C, suitable for demanding conditions in industrial and automotive sectors.

Common applications include coin processing machines, air-conditioners, digital multimeters, barcode scanners, medical devices such as blood glucose meters and pulse oximeters, industrial cameras, vacuum cleaners, and more. Its positive polarity and stable voltage output make it an excellent choice for device manufacturers looking for reliable power management ICs.

Operates with a maximum input voltage of 25V and minimum of 3V. Supports a maximum current rating of 2A with PNP output transistor. Compact 5-pin HRP surface mount package. Maximum operating temperature of 125°C. Integrated current limiting circuit protects against shorts and overloads.

Suitable for industrial, medical, and consumer electronics applications. Positive polarity for stable power outputs. Compact dimensions ideal for PCB space savings. Explore EnvMart's collection of power management ICs and Voltage Regulators for high-quality components designed to meet industrial and commercial electronics manufacturing needs.
