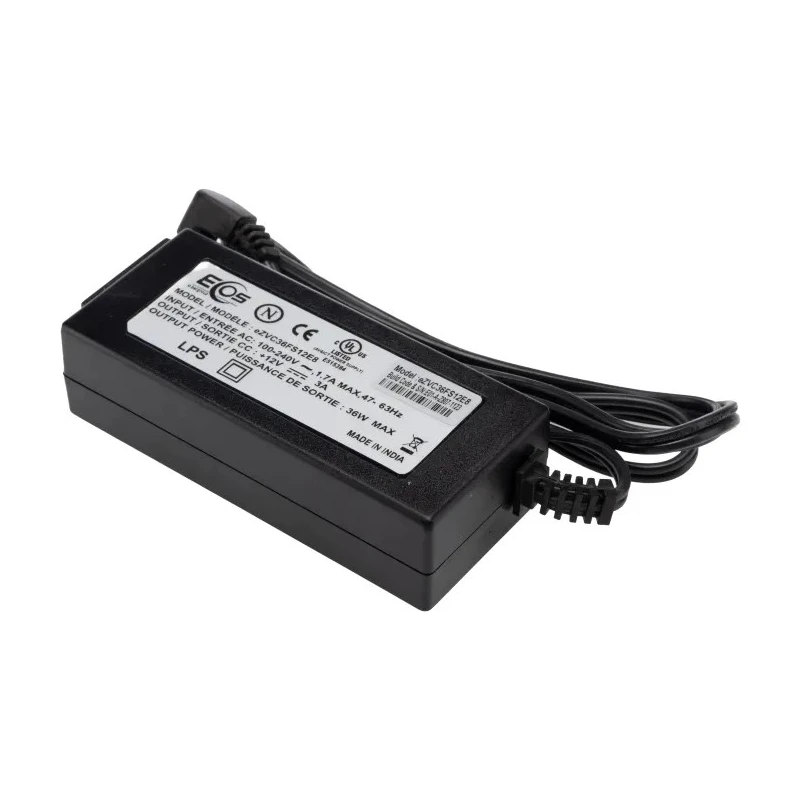

EOS 2.54 x 5.49 mm Centre Positive AC/DC Adapter 36 W 12V DC Output, 3 A CEL-22-LFeZVC36FS12E8

EOS CEL-22-LFeZVC36FS12E8 AC/DC Adapter is a desktop power supply unit designed to provide efficient and stable power output of 36 W with 12 V DC voltage and 3 A current. Its compact and ultra-miniature design with a high-quality enclosure makes it ideal for a wide range of general power applications in electronics.

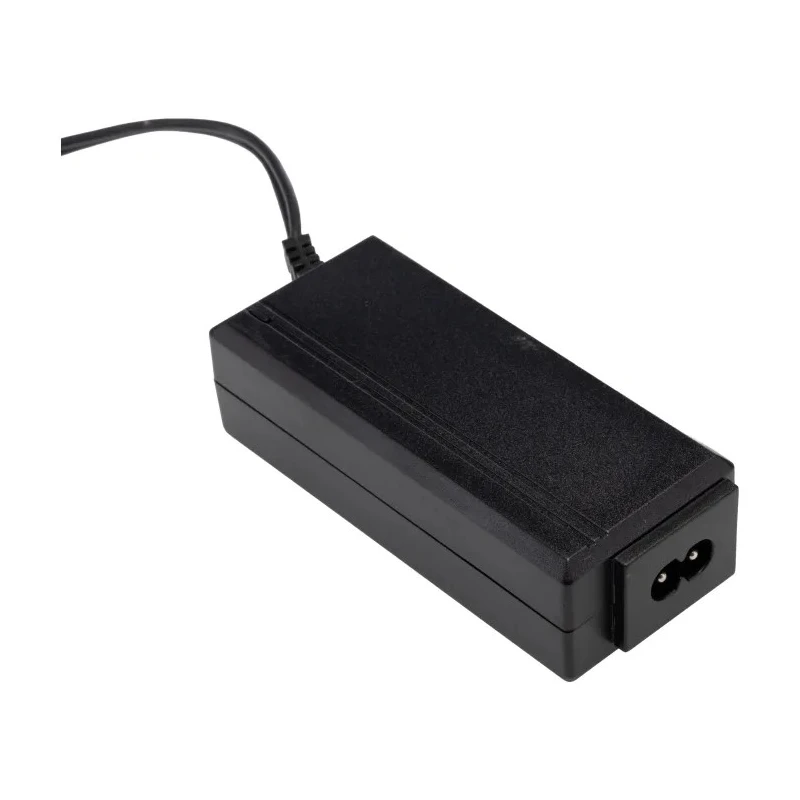

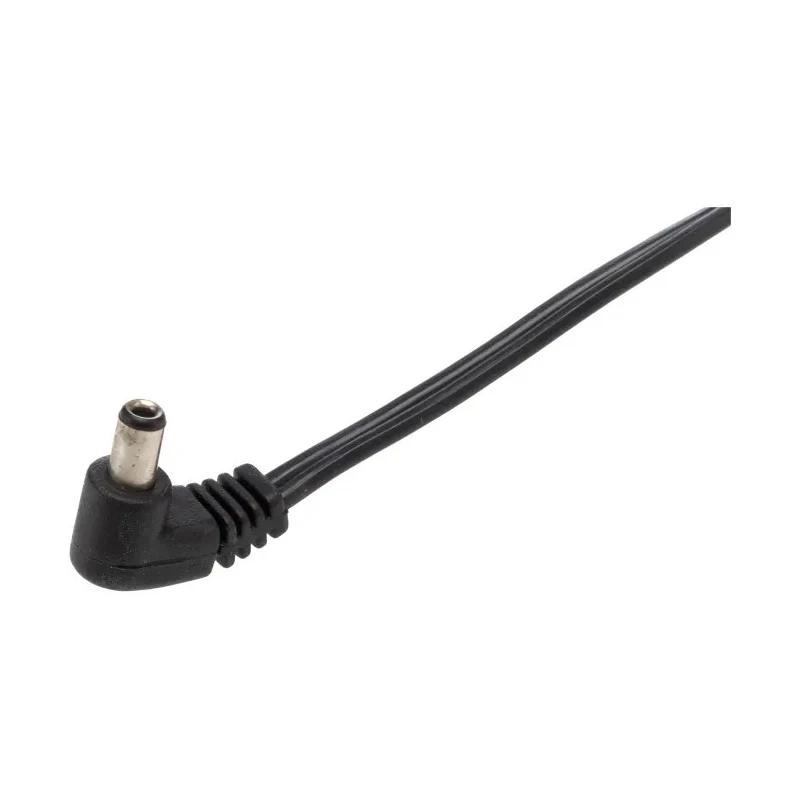

This adapter features a 2.54 x 5.49 mm centre positive output connector and an IEC 320-C8 input connector. The cable length is 1000 mm, allowing versatile and convenient connectivity. The unit operates within a temperature range of 0°C to 40°C, ensuring dependable performance under normal environmental conditions.

The EOS adapter guarantees high efficiency up to 90% and maintains load regulation within ±5%, enhancing device stability and power quality. Compliance with UL and CSA certifications ensures product safety and reliability. The energy efficiency level III rating reflects its eco-friendly design, reducing energy consumption.

This power supply supports input voltages ranging from 90 VAC to 132 VAC or 180 VAC to 264 VAC with frequency tolerance between 47 Hz and 63 Hz. Its low maximum input leakage current of less than 25 μA further highlights its safe electrical characteristics.

Designed primarily for netbook and notebook power applications, this unit excels in providing a secure 12 V DC power source with 3 A current capacity. It offers a high-quality, lightweight solution for multiple electronic power needs where a regulated DC adapter is required.

Outputs 12 V DC voltage at 3 A current for reliable power supply. Features a compact design with dimensions 88.9 x 44.7 x 24.57 mm. Equipped with a 2.54 x 5.49 mm centre positive output connector and IEC 320-C8 input connector.

Includes a 1000 mm cable length for flexible connection. Operational temperature range from 0°C to 40°C ensuring safe use in typical environments. Achieves high efficiency of 90% with load regulation ±5%. Meets UL and CSA safety standards and approvals for assured quality.

Designed with energy efficiency level III compliance. Suitable for netbook and notebook power supply applications. Manufactured in India under the EOS CEL-22 series with new product condition.

The EOS CEL-22-LFeZVC36FS12E8 AC/DC Adapter caters to industrial, laboratory, commercial, and general electronics uses requiring a reliable, regulated DC power supply. Explore more AC/DC Adapters and power supplies in the Electronics & Electricals section on EnvMart for compatible options.
