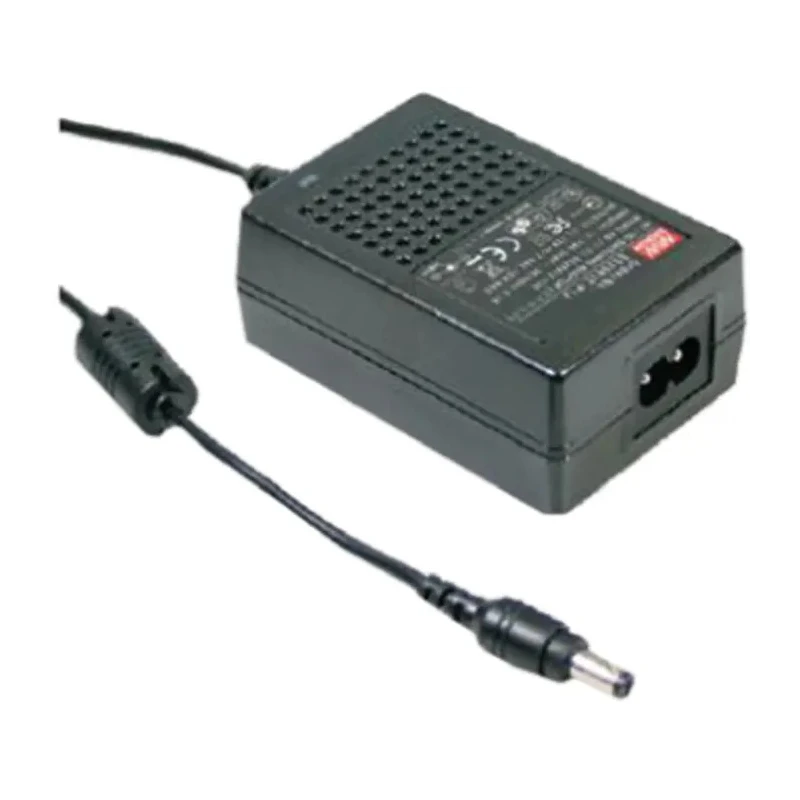

MEAN WELL Medical Grade AC/DC Adapter IEC Plug Output 12V 1.04A 18W GSM25B24-P1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM25B24-P1J |
| Cable Length | 1800mm |
| Overall Length | 79mm |
| Series | GSM25B |
| Overall Width | 54mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | IEC |
| Protections | Short circuit / Overload / Over voltage |
| Maximum Output Current | 1.04A |
| Standards/Approvals | TUV EN 60601-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 33mm |
| Minimum Output Voltage | 12V |
| Input Connector Type | IEC 320-C8 |
Key Features
- Complies with medical safety standards including TUV EN 60601-1 certification.
- Universal AC input voltage range starting from 100V AC full range.
- Equipped with IEC 320-C8 input connector and IEC output plug.
- Low leakage current less than 50 microamperes for patient contact safety.
- High efficiency of up to 88% and ErP step 2 energy saving compliant.
- Protected against short circuit, overload, and over voltage conditions.
- Enclosed in a fully plastic UL 94V-0 rated case, class II power supply without earth pin.
- Includes LED power on indicator and power consumption below 0.1W in no load conditions.
Product Description
MEAN WELL GSM25B24-P1J AC/DC adapter is a medical-grade power supply providing reliable 12V DC output at 1.04A and 18W power, suitable for sensitive medical equipment and other low leakage current applications.
This power supply meets international medical safety regulations such as ANSI/AAMI ES60601-1 and TUV EN60601-1, ensuring patient safety through low leakage current under 50 μA. It also complies with energy savings directives including ErP step 2 and EISA 2007.
The unit features universal AC input from 100V AC full range and utilizes an IEC 320-C8 two-pole inlet for connectivity. Its construction includes a fully enclosed plastic case rated UL 94V-0, offering durability and safety with a Class II rating, meaning no earth pin is required.
Protection features include short circuit, overload, and over voltage safeguards, enhancing operational reliability. No load power consumption is minimal at less than 0.1W, helping reduce standby energy use.
Applications include medical equipment requiring low leakage current, portable medical devices, home healthcare systems, and any electrical systems demanding stringent power safety and efficiency.
Complies with medical safety and energy efficiency standards. Universal AC input with IEC 320-C8 plug. Low leakage current for patient safety compliance. Robust plastic enclosure for electrical insulation and durability.
Protections against electrical faults for reliability. LED indicator for power status. Energy saving with ErP step 2 compliance. Ideal for medical and healthcare equipment power supply.
This adapter is part of MEAN WELL's GSM-B series medical power supplies known for safety and efficiency. Explore comprehensive power solutions in the AC/DC Adapter category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MEAN WELL GSM25B24-P1J provides an output voltage of 12V and a maximum output current of 1.04A, delivering a total power of 18W.
It complies with medical safety standards including TUV EN 60601-1, ensuring it meets stringent safety requirements for medical applications.
It utilizes an IEC 320-C8 two-pole inlet for connectivity, which is standard for many medical and electronic devices.
The unit is protected against short circuit, overload, and over voltage conditions, enhancing its operational reliability.
The overall dimensions of the adapter are 79mm in length, 54mm in width, and 33mm in depth.
The maximum operating temperature for the GSM25B24-P1J is 60°C, allowing it to function effectively in various environments.
The cable length is 1800mm, providing flexibility for installation and use in various settings.
The no-load power consumption is less than 0.1W, which helps in reducing standby energy use.
It is suitable for medical equipment requiring low leakage current, portable medical devices, and home healthcare systems.
The adapter is enclosed in a fully plastic case rated UL 94V-0, providing electrical insulation and safety without an earth pin.
