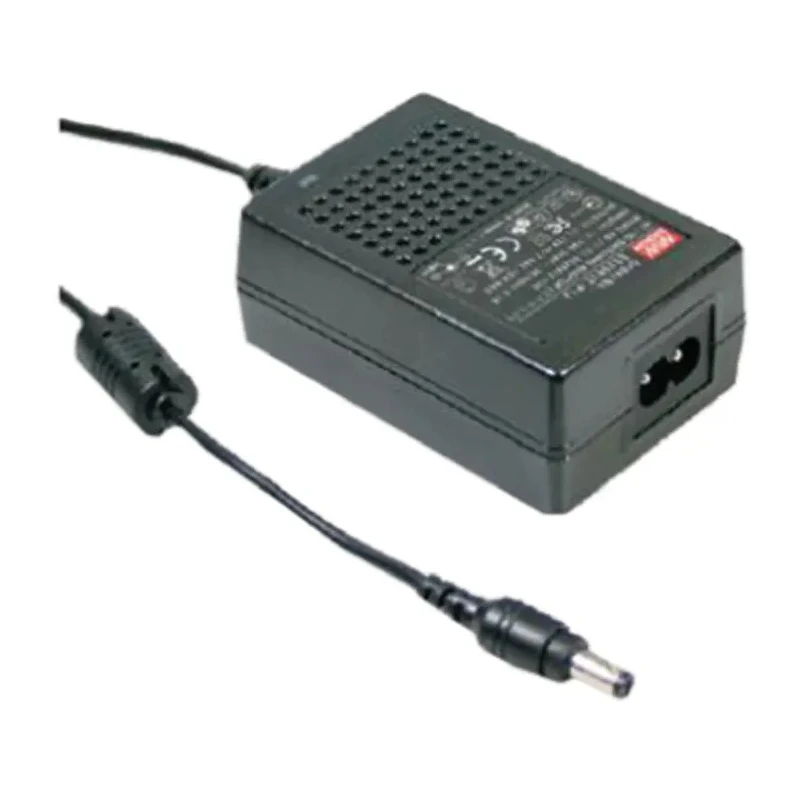

MEAN WELL 18W to 36W ErP Single Output Switch Mode Medical AC/DC Adapter IEC 264V AC 4A 5V DC GSM25B05-P1J
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM25B05-P1J |
| Cable Length | 1200mm |
| Overall Length | 79mm |
| Series | GSM25 |
| Overall Width | 54mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | IEC |
| Maximum Input Voltage | 264V ac |
| Protections | Short circuit / Overload / Over voltage |
| Maximum Output Current | 4A |
| Standards/Approvals | UL 60950-1, CE, IEC 60950-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 33mm |
| Minimum Output Voltage | 5V dc |
| Input Connector Type | IEC 320-C8 |
Key Features
- Complies with medical safety regulations with low leakage current below 50 microamps.
- Suitable for patient contact medical applications.
- Universal AC input voltage range from 100V to 264V AC.
- High efficiency up to 88% with low no load power consumption under 0.1W.
- Built-in protections for short circuit, overload, and over voltage.
- Fully enclosed plastic case with UL 94V-0 rating.
- Class II insulation design without earth pin.
- LED power indicator included.
Product Description
MEAN WELL GSM25B05-P1J is an 18W to 36W ErP single output switch mode desktop power supply designed for medical applications requiring safety and energy efficiency standards. It features a universal AC input voltage range from 100V to 264V AC via the IEC 320-C8 2-pole AC inlet. The adapter outputs a regulated 5V DC at a maximum current of 4A, suitable for powering various medical and healthcare devices.
This medical AC/DC adapter complies with international medical safety requirements including ANSI/AAMI ES60601-1 and TUV EN60601-1, ensuring very low leakage current below 50 microamps, which meets the demands of patient-contact devices. The power supply is enclosed in a fully plastic case rated UL 94V-0, providing class II insulation without an earth pin, which adds an extra layer of safety.
With high efficiency of up to 88% and a very low no load power consumption under 0.1W, the GSM25B05-P1J adapter is ErP Step 2 (Level V) and EISA 2007 compliant, contributing to energy conservation efforts. It includes comprehensive protections against short circuit, overload, and over voltage conditions to ensure device and user safety.
The adapter has overall dimensions of 79mm length, 54mm width, and 33mm depth, and features a 1200mm cable length for convenient installation. Operating temperature capability extends up to a maximum of 60°C, making it reliable for various environmental conditions.
This medical power supply is suitable for industrial, laboratory, medical, home healthcare, and commercial equipment where safety, efficiency, and regulatory compliance are critical. The package provides a dependable solution for medical power needs with a 3-year warranty from MEAN WELL.
Complies with medical safety regulations with low leakage current below 50 microamps. Suitable for patient contact medical applications. Universal AC input voltage range from 100V to 264V AC. High efficiency up to 88% with low no load power consumption under 0.1W.
Built-in protections for short circuit, overload, and over voltage. Fully enclosed plastic case with UL 94V-0 rating. Class II insulation design without earth pin. LED power indicator included. Energy saving compliant with ErP Step 2 and EISA 2007.
Explore more AC/DC Adapters and power supply solutions at EnvMart for your industrial and medical power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adapter outputs a regulated 5V DC at a maximum current of 4A.
This model complies with ANSI/AAMI ES60601-1 and TUV EN60601-1 medical safety standards.
It includes protections against short circuit, overload, and over voltage conditions.
The overall dimensions are 79mm in length, 54mm in width, and 33mm in depth.
The maximum operating temperature is 60°C.
The cable length is 1200mm.
It uses an IEC 320-C8 input connector type.
It has a high efficiency of up to 88% with low no load power consumption under 0.1W.
Yes, it is suitable for patient contact medical applications due to its low leakage current below 50 microamps.
The country of origin is India.
It is certified with UL 60950-1, CE, and IEC 60950-1 standards.
