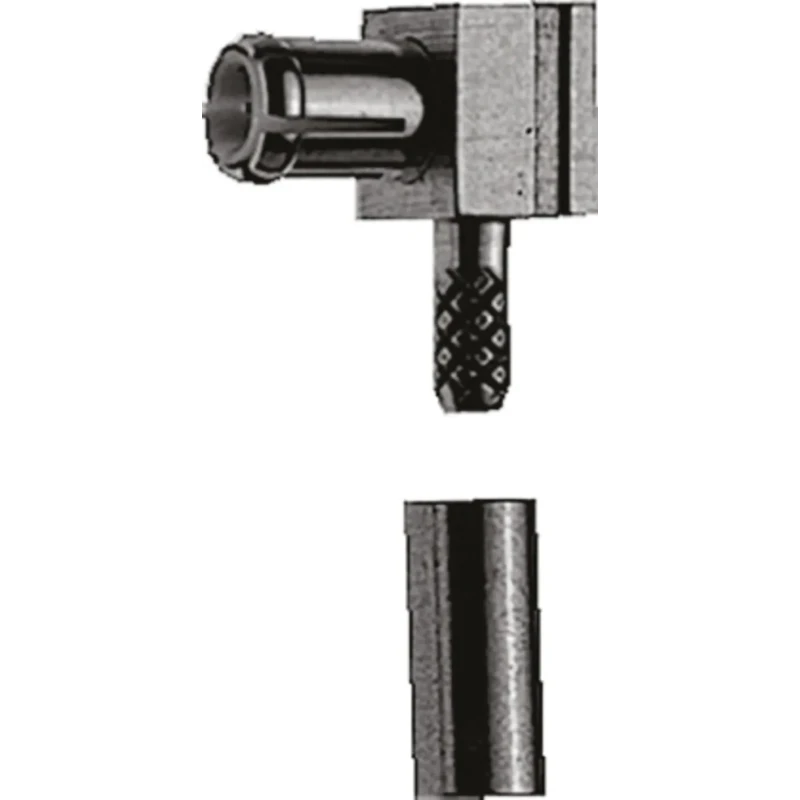

Telegartner MCX Series Coaxial Connector Cable Male MCX, 50 Ω, Right Angle Body Crimp J01270A0201
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01270A0201 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | MCX |
| Termination Type | Crimp |
| Cable Type | RG196A/U, RG178B/U |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Nickel, Gold, Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Copper Nickel Gold Alloy |
Key Features
- The connector features a right angle body with crimp termination for secure cable mounting.
- Compatible with cable types RG196A/U and RG178B/U, ensuring versatile application range.
- Operates reliably up to 6 GHz, suitable for high-frequency signal transmission.
- Body plating includes copper, nickel, and gold alloy that provides corrosion resistance.
- Contact material is brass with plating of nickel, gold, and copper to enhance electrical contact quality.
- The connector is designed for normal polarity with male connector gender.
- Minimum operating temperature is 0°C, ensuring stable performance under typical environmental conditions.
- Manufactured in Germany to high-quality standards ensuring durability and precision.
Product Description
Telegartner J01270A0201 MCX Series Coaxial Connector Cable Male MCX is a precision-engineered coaxial connector designed for cable mounting with a right angle body and crimp termination. Operating with a characteristic impedance of 50 Ω, it supports frequencies up to 6 GHz, making it ideal for high-frequency RF and microwave applications.
The connector supports cable types RG196A/U and RG178B/U, allowing flexible use in various communication and signal transmission systems. Its copper, nickel, and gold alloy body plating ensures robust corrosion resistance and long-term reliability.
The contact is crafted from brass and plated with nickel, gold, and copper to provide excellent conductivity and reduce signal loss. The connector maintains normal polarity with a male gender interface, facilitating easy and secure mating.
Designed to operate down to 0°C, this product ensures consistent performance across typical industrial and electronic environments.
Manufactured in Germany under strict quality controls, this MCX series connector caters to high precision requirements in laboratory, industrial, telecommunications, and electronic manufacturing sectors.
The connector features a right angle body with crimp termination for secure cable mounting. Compatible with cable types RG196A/U and RG178B/U, ensuring versatile application range. Operates reliably up to 6 GHz, suitable for high-frequency signal transmission.
Body plating includes copper, nickel, and gold alloy that provides corrosion resistance. Contact material is brass with plating of nickel, gold, and copper to enhance electrical contact quality. The connector is designed for normal polarity with male connector gender.
Minimum operating temperature is 0°C, ensuring stable performance under typical environmental conditions. Manufactured in Germany to high-quality standards ensuring durability and precision. This Coaxial Connector is a reliable choice for demanding RF connector applications in electronics, telecommunication, laboratory instrumentation, and manufacturing industries.
Explore more electronic components and connectors at EnvMart for all your professional industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates reliably up to 6 GHz, making it suitable for high-frequency signal transmission applications.
It is compatible with RG196A/U and RG178B/U cable types, allowing for versatile application across various communication systems.
The connector has a characteristic impedance of 50 Ω, which is standard for many RF applications.
This model features a crimp termination type, ensuring secure cable mounting.
The body plating includes a copper, nickel, and gold alloy, which provides corrosion resistance and enhances durability.
The minimum operating temperature for this connector is 0°C, ensuring stable performance in typical environmental conditions.
The contact material is brass, plated with nickel, gold, and copper to enhance electrical contact quality.
This connector is designed with a male gender interface, facilitating easy and secure mating with compatible devices.
This product is manufactured in Germany, adhering to high-quality standards.
The connector features a right angle body orientation, which can be advantageous in space-constrained installations.
This connector is part of the MCX series, which is known for its precision-engineered design for RF applications.
It is suitable for demanding RF connector applications in electronics, telecommunications, laboratory instrumentation, and manufacturing industries.
