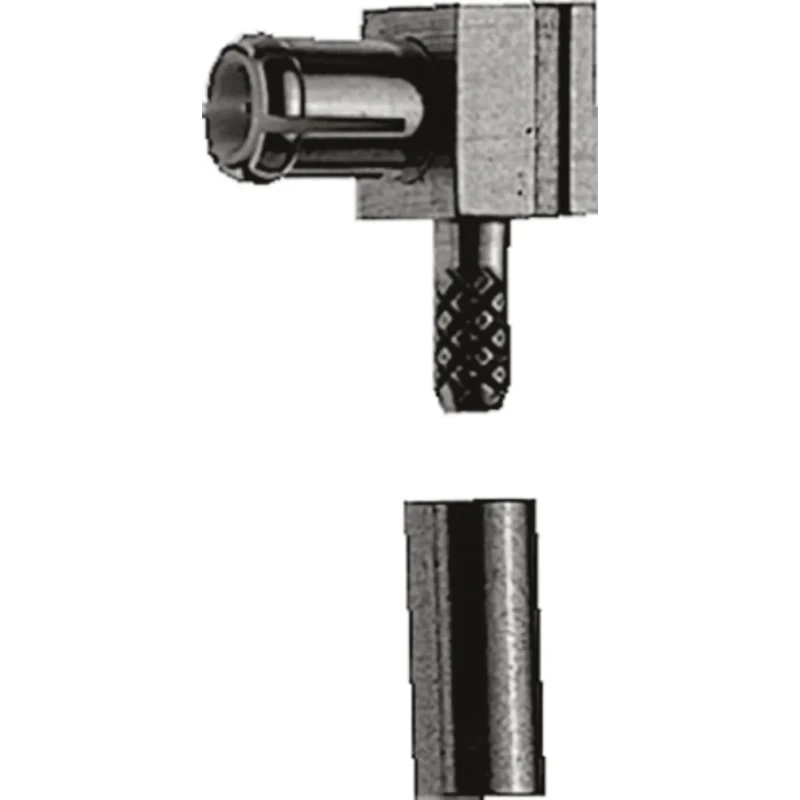

Telegartner MCX Series Coaxial Connector Cable Male MCX, 50 Ω, Right Angle Body Crimp J01270A0201
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01270A0201 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | MCX |
| Termination Type | Crimp |
| Cable Type | RG196A/U, RG178B/U |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Nickel, Gold, Copper |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Copper Nickel Gold Alloy |
Key Features
- The MCX connector type ensures compatibility with standardized RF circuits.
- Designed with brass contact material and plated with nickel, gold, and copper for enhanced conductivity and durability.
- Operates effectively up to 6GHz frequency, suitable for high-frequency signal transmission.
- Termination is via crimping, enabling secure mechanical and electrical connection with RG196A/U and RG178B/U cables.
- Body plating consists of copper, nickel, and gold alloy, providing corrosion resistance and reliability.
- Connector orientation is right angle, allowing flexible cable routing in equipment.
- Designed to operate in temperatures down to 0°C, ensuring stability in diverse environments.
- Standard size and no bulkhead option for cable mount facilitate easy integration into systems.
Product Description
Telegartner J01270A0201 MCX Series Coaxial Connector Cable is a precision-engineered male MCX coaxial connector cable designed for professional RF applications requiring 50 Ω impedance. Featuring a right angle crimp body, this connector facilitates compact and reliable installations in electronics, telecommunications, and RF signal routing.
The brass contact material with nickel, gold, and copper plating offers excellent electrical conductivity and corrosion resistance, essential for maintaining signal integrity at frequencies up to 6GHz. The connector utilizes RG196A/U and RG178B/U cable types, known for their flexibility and performance in demanding environments.
This cable connector supports a minimum operating temperature of 0°C, making it suitable for use in controlled industrial or laboratory settings. Its crimp termination type guarantees a secure and consistent mechanical and electrical connection, ensuring long-lasting performance in critical applications.
The right angle orientation of the body allows for space-saving cable routing, making this MCX connector ideal for compact RF systems and instrumentation. The body plating, consisting of a copper nickel gold alloy, delivers durability and optimal resistance to wear and corrosion.
Manufactured in Germany to rigorous standards, this product is suitable for use across industrial, laboratory, telecommunications, and electronic manufacturing sectors. Its robust design makes it a preferred choice for assembly into equipment requiring precise signal transmission.
The MCX connector type ensures compatibility with standardized RF circuits. Brass contact material with nickel, gold, and copper plating enhances conductivity and corrosion resistance. Supports operating frequencies up to 6GHz for reliable high-frequency performance.
Right angle crimp body design enables flexible cable routing and compact installations. Termination by crimping ensures secure and durable cable connections. Compatible with RG196A/U and RG178B/U cable types for versatile use.
Operates at minimum temperatures of 0°C, suitable for controlled environments. Manufactured in Germany, meeting high quality and reliability standards. Explore the Electronics Components and Coaxial Connectors category on EnvMart for a wide range of related products from reputable brands like Telegartner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This MCX connector operates effectively at frequencies up to 6GHz, suitable for high-frequency signal transmission.
It is compatible with RG196A/U and RG178B/U cable types, allowing for versatile use in RF applications.
The connector features a crimp termination type, ensuring a secure and consistent mechanical and electrical connection.
This model has a right angle orientation, which allows for flexible cable routing in compact installations.
The contact material is brass, and it is plated with nickel, gold, and copper to enhance conductivity and corrosion resistance.
It operates effectively at a minimum temperature of 0°C, making it suitable for controlled industrial or laboratory environments.
This connector is manufactured in Germany, adhering to rigorous quality and reliability standards.
The impedance rating of this connector is 50Ω, which is standard for RF applications.
It is classified as a standard size connector, designed for easy integration into various systems.
The connector is male gendered, which is standard for MCX connectors.
This connector is designed for professional RF applications, including telecommunications and RF signal routing.
The body plating consists of a copper, nickel, and gold alloy, providing durability and optimal resistance to wear and corrosion.
