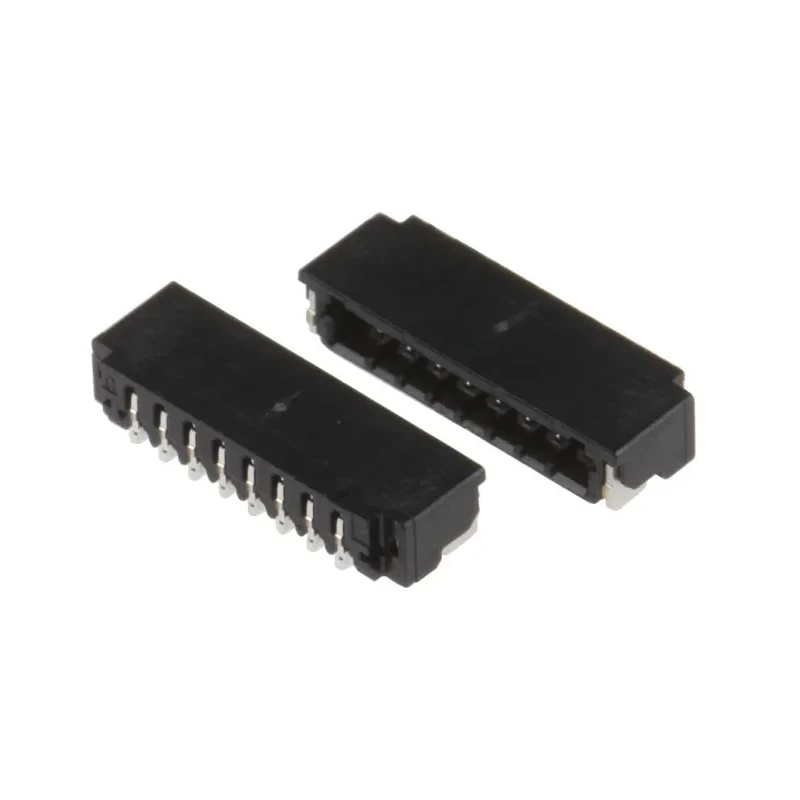

Hirose 52 Series Right Angle PCB FPC Connector, 8 Contacts, 0.8 mm Pitch, 1 Row DF52-8S-0.8H(21)

Hirose DF52-8S-0.8H(21) is a high-quality 52 Series Right Angle PCB FPC Connector designed to provide robust wire-to-board connectivity. Manufactured with a polyamide housing, this connector ensures excellent insulation and durability for electronic applications.

The connector features 8 female contacts made from copper alloy with tin plating, enhancing electrical conductivity and preventing corrosion. It supports a rated voltage of 100 V AC and current ratings ranging from 800 µA to 1.5 mA, suitable for low current PCB signal connections.

The 0.8 mm pitch combined with a compact 1.75 mm height and 4.1 mm depth makes this connector ideal for space-constrained PCB assemblies. Its right angle orientation facilitates flexible PCB layout designs and ease of cable routing.

This product is designed for surface mount technology (SMT) with single-row configuration and supports cables with insulated jacket diameters from 0.5 to 0.6 mm, compatible with AWG#28 to 32 wiring sizes. The halogen-free polyamide material further ensures environmentally friendly construction compliant with safety standards.

Key design features include high contact lance strength and a box-shaped crimp contact construction to prevent deformation and enhance reliability during cable handling and connection cycles.

Constructed with polyamide housing for durability and insulation. Features copper alloy contacts with tin plating ensuring reliable electrical connection. Designed for surface mount PCB mounting with female contact gender.

Operating temperature range from -40°C to 85°C suitable for various environments. Rated voltage of 100 V AC and current ratings of up to 1.5 mA for signal integrity. Compact sizes with 0.8 mm pitch, 1.75 mm height, and 4.1 mm depth for space-saving on PCBs.

Robust right angle orientation allows versatile PCB design and installation. Halogen-free material ensures environmental compliance and safety. Supports cables with jacket outer diameter of 0.5 to 0.6 mm and AWG#28 to 32 wires.

Designed with high contact lance strength and box-shaped crimp contacts for deformation resistance.

This connector is widely used in electronics manufacturing, including industrial, telecommunications, consumer electronics, and automotive sectors for robust and reliable PCB connections.
