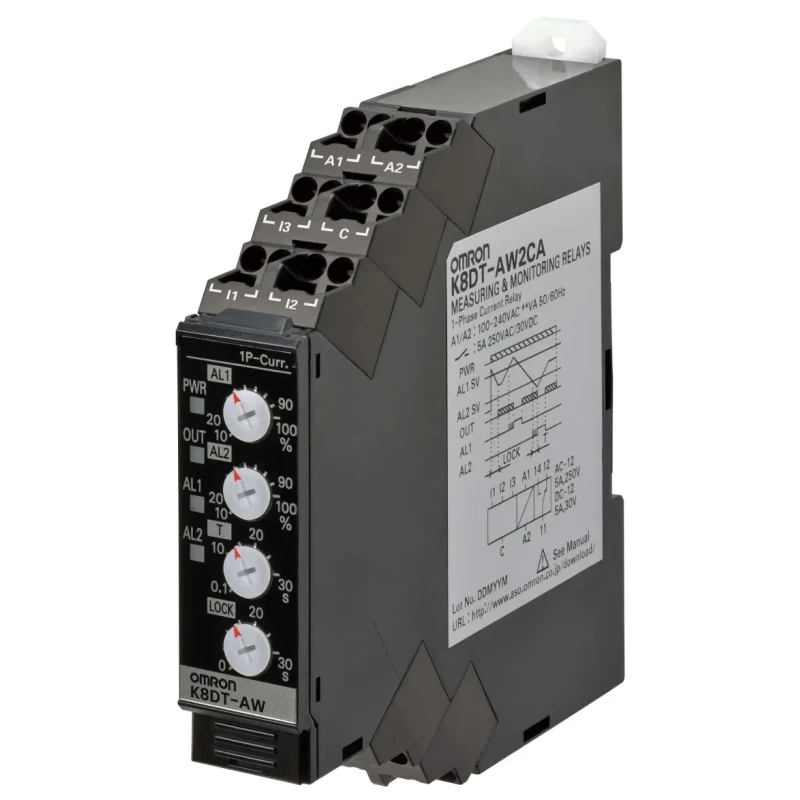

Omron Single Phase Monitoring Relay, SPDT, DIN Rail, 0.1A - 5A, 250 ms Delay, IP20 K8DT-AW2CD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Length | 90mm |
| Model | K8DT-AW2CD |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | K8DT-AW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 250 ms |
| Minimum Operating Temperature | -20°C |
| Terminal type | Push-in |
| Electrical Phase | 1 |
| Supply DC Voltage | 0 V ac |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 5A |
| Current Sensitivity | Undercurrent, Overcurrent |
| Relay Contact Current | 0.1, 5A |
Key Features
- Provides single-phase current supervision with selectable undercurrent and overcurrent detection.
- Supports current sensing range from 0.1A to 5A for versatile load monitoring.
- Features SPDT contact configuration for flexible circuit control.
- DIN rail mounting streamlines installation into control panels and automation racks.
- Fast 250 ms time delay minimizes nuisance tripping from transient spikes.
- Push-in terminals enable easy and secure wiring.
- Low power consumption at 1.8 VA preserves control circuit efficiency.
- IP20-rated enclosure protects against solid objects.
Product Description
Omron K8DT-AW2CD is a robust single-phase monitoring relay engineered for industrial automation, panel protection, and electrical supervision. Its SPDT contact configuration enables reliable make-break switching, essential for safety and process control.
With a current sensing range of 0.1A to 5A, the device is suitable for monitoring pumps, compressors, conveyors, and machine tool circuits. It can detect both overcurrent and undercurrent conditions simultaneously, providing early warning of abnormal operation or load failures.
The relay is designed for DIN rail mounting, ensuring quick installation in modern control cabinets. Its push-in terminals simplify the wiring process, minimizing installation time and errors.
A fast 250 ms time delay is integrated to reduce false alarms from brief transient spikes, thereby improving operational reliability without compromising responsiveness. The low power consumption (1.8 VA) ensures minimal impact on the control circuit load.
Single-phase current monitoring for industrial panels. Selectable undercurrent and overcurrent detection enhances protective function. Current sensing range covers critical applications from 0.1A up to 5A. SPDT output contact supports versatile circuit isolation and switching.
DIN rail mounting, push-in terminals, and IP20 enclosure deliver robust installation and protection. Operates reliably from −20 °C to 60 °C, fitting diverse application environments. Global standard compliance (EN 60947-5-1, UL 60947-5-1) supports international deployment.
Ideal for industrial, commercial, and laboratory environments where panel-mounted current supervision is required. Typical uses include motor protection, pump and compressor monitoring, conveyor control, and machine tool safety integration.
The Omron K8DT-AW2CD Monitoring Relay is part of the K8DT-AW series, offering advanced current monitoring for automation systems. Discover more Omron Monitoring Relays and industrial panel solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current sensing range from 0.1A to 5A, suitable for versatile load monitoring applications.
It features an SPDT (Single Pole Double Throw) contact configuration, allowing for flexible circuit control.
This unit is designed for DIN rail mounting, which streamlines installation into control panels and automation racks.
It has a fast time delay of 250 ms, which helps to minimize nuisance tripping from transient spikes.
This model operates reliably within a temperature range of -20 °C to 60 °C, making it suitable for diverse application environments.
It utilizes push-in terminals, which facilitate easy and secure wiring during installation.
This monitoring relay has an IP20 rating, providing protection against solid objects.
It operates on a single electrical phase (1-phase), suitable for single-phase current monitoring applications.
It is suitable for applications such as motor protection, pump and compressor monitoring, conveyor control, and machine tool safety integration.
The dimensions of this model are 90mm in height, 90mm in length, and 17.5mm in width.
It can detect both undercurrent and overcurrent conditions, providing early warning of abnormal operation or load failures.
This unit has a low power consumption of 1.8 VA, which helps preserve control circuit efficiency.
