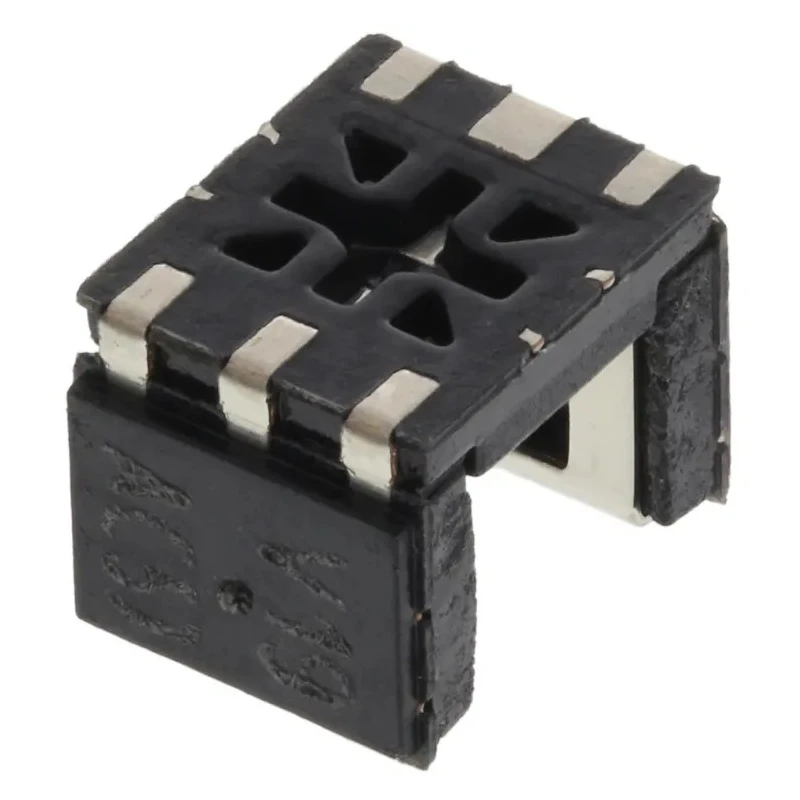

Vishay Surface Slotted Optical Switch Phototransistor Output TCPT1300X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 5.5mm |
| Model | TCPT1300X01 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 105°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Slot Width | 3mm |
| Number Of Channels | 2 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Typical Rise Time | 20μs |
| Typical Fall Time | 30μs |
| Automotive Standard | AEC-Q101 |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- Equipped with phototransistor output device for efficient signal detection.
- Surface mount leaded package ensures compatibility with PCB assembly.
- Operates reliably between -40°C and 105°C temperature range.
- Typical rise and fall times are 20μs and 30μs respectively, allowing fast response.
- Compact dimensions of 24.5mm length, 6.3mm width, and 10.8mm height facilitate design flexibility.
- Includes daylight blocking filter and 950 nm emitter wavelength for stable operation.
- Packaged in tape & reel format for automated manufacturing processes.
- Complies with RoHS standards and automotive AEC-Q101 qualification.
Product Description
Vishay TCPT1300X01 Surface Slotted Optical Switch is a high-performance phototransistor sensor designed for precise infrared detection in various electronic and industrial applications. The device features a miniature surface mount leaded package with a slot width of 3mm and 6 pins, ensuring easy integration onto printed circuit boards with automated assembly.
It operates effectively within a temperature range from -40°C to 105°C, with a robust build compliant with RoHS regulations and the automotive grade AEC-Q101 standard. The typical rise time of 20 microseconds and fall time of 30 microseconds provide a fast and reliable response to optical interruptions.
The sensor includes a daylight blocking filter to enhance signal accuracy under varying ambient light conditions. The emitter wavelength is 950 nm, optimized for infrared sensing applications. Its compact size of 24.5 x 6.3 x 10.8 mm makes it suitable for space-constrained designs.
This device is supplied on tape and reel, facilitating streamlined production workflows. It is well-suited for industrial, automotive, electronic manufacturing, measuring instruments, and control systems where optical switching, photo interruption, counting, or rotary encoding is needed.
Equipped with phototransistor output device for efficient optical signal detection. Surface mount package designed for modern PCB assembly processes. Wide operating temperature ensures suitability in harsh environments. Fast response times for accurate optical event detection.
Daylight blocking filter improves performance in exposed light conditions. Compact dimensions allow integration into tight spaces. RoHS and AEC-Q101 certified for environmental and automotive use. Tape and reel packaging supports automated manufacturing.
Applications include optical switch, photo interrupter, encoder, and counter.
Choose Vishay TCPT1300X01 Surface Slotted Optical Switch for reliable and precise optical sensing in demanding industrial and electronic applications. Browse more products in the Slotted Optical Switch category at EnvMart for comprehensive sensor solutions.
