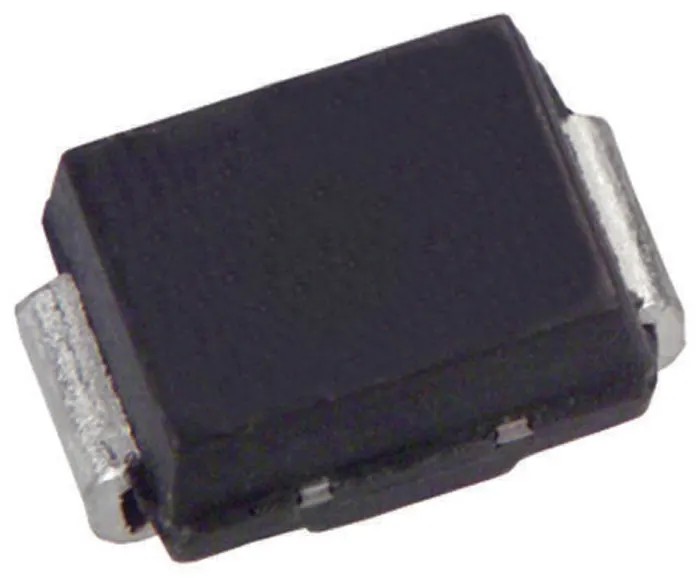

Vishay TRANSZORB TVS Diode Uni-Directional 600 W Peak Pulse Power Surface Mount 2-Pin DO-214 SMBJ22A-E3/52

Vishay SMBJ22A-E3/52 TRANSZORB® uni-directional TVS diode offers robust transient voltage suppression with a peak pulse power dissipation of 600 W. Designed in a low profile, surface mount DO-214 package with 2 pins, it delivers excellent surge protection for sensitive electronic components in demanding industrial and automotive applications.

This diode features a glass passivated chip junction and fast response time to effectively clamp voltage spikes, thereby protecting ICs, MOSFETs, and sensor units from damage due to inductive load switching and lightning transients. Its maximum reverse stand-off voltage is 22 V, with a clamping voltage of 35.5 V, ensuring reliable operation within voltage tolerance limits.

Capable of operating across a wide temperature range from -55°C up to 150°C, this TVS Diode meets the AEC-Q101 automotive standard, confirming its suitability for harsh environments. The compact physical size (4.57 mm length, 3.94 mm width, 2.24 mm height) is optimal for high-density PCB layouts and automated surface mount assembly processes.

Applications include protection of consumer electronics, industrial control systems, telecommunications equipment, and computing devices against voltage surges and electrostatic discharge (ESD). It effectively safeguards sensitive circuits, enhancing product reliability and longevity.

Uni-directional configuration for focused transient voltage suppression. 600 W peak pulse power capability with a 10/1000 µs waveform. Surface mount DO-214 package with 2 pins for easy PCB integration. Glass passivated chip junction for enhanced durability.

Meets automotive AEC-Q101 standard for quality assurance. Wide operating temperature range from -55°C to 150°C. Low incremental surge resistance ensures efficient protection. ESD protection included for safeguarding against electrostatic discharges.

Compact size suitable for automated manufacturing environments. Ideal for protecting electronics in industrial, automotive, and telecommunications fields. Explore the Vishay range and other semiconductor components on EnvMart for reliable electronic protection solutions tailored to your application needs.
