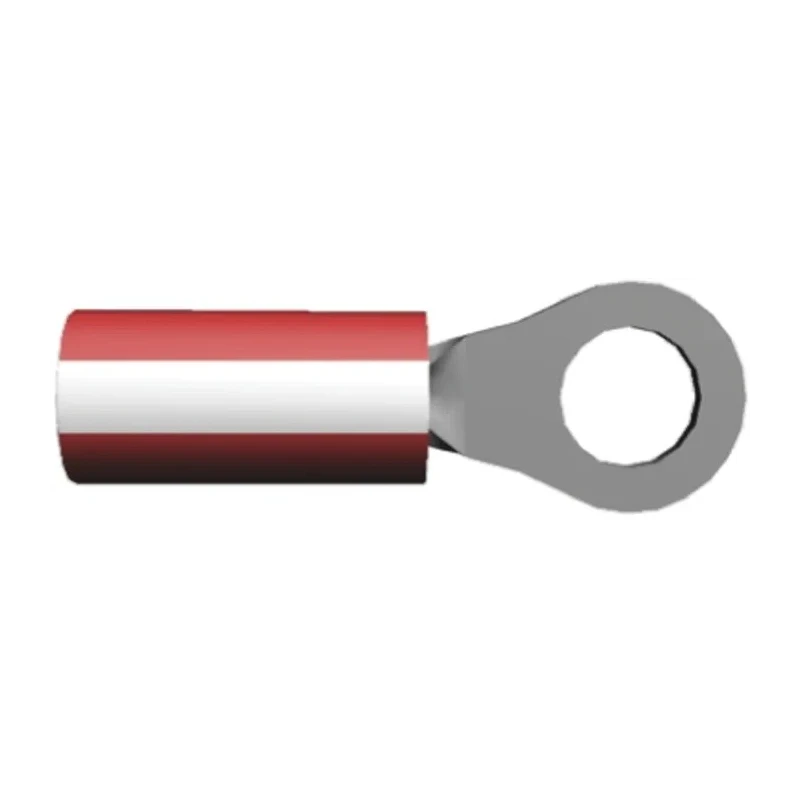

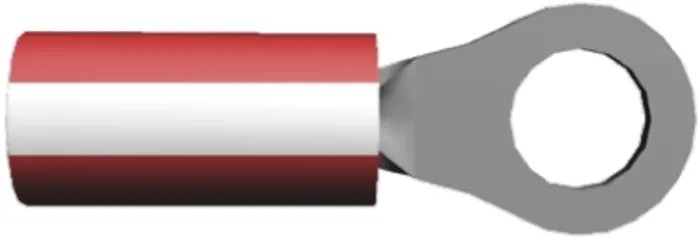

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 26 AWG to 16 AWG Wire Size Nylon Insulation Red White 1-320551-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red, White |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 21.44mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed from high conductivity copper for reliable electrical performance.
- Features nylon insulated, colour-coded sleeves for quick wire size identification.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Copper sleeve inside barrel improves wire insulation support and prevents fraying.
- Designed with funnelled wire entry to allow fast and easy wire insertion.
- Compatible with various wiring applications including instrumentation, lighting, and aerospace.
- Operates reliably up to a maximum temperature of 105°C.
Product Description
TE Connectivity 1-320551-4 PIDG insulated ring terminals provide dependable wire connections for industrial and electronic applications. Featuring a high conductivity copper body and copper sleeve, these terminals ensure excellent electrical contact and mechanical strength. The precision serrations inside the wire barrel provide enhanced tensile strength after crimping, while the nylon insulated outer sleeve offers protection and colour coding for easy wire size identification.
This ring terminal supports wire sizes from 26 AWG to 16 AWG and fits M4 stud sizes, making it versatile for a wide range of wiring tasks in industrial, aerospace, control instrumentation, lighting, power supply, panel boxes, motors, and appliance manufacturing environments. The insulated design helps to maintain circuit integrity and safety by preventing accidental wire exposure and fraying.
The funnelled entry promotes fast and efficient wire insertion during high-speed production, reducing assembly time. These terminals do not claim specific industry approvals but meet the typical reliability standards required for demanding circuit environments.
High conductivity copper body and barrel for excellent performance. Copper sleeve reinforcement inside barrel enhances wire insulation support. Serrated wire barrel for optimal contact and tensile strength post-crimp. Colour coded nylon outer sleeve for wire size identification and insulation.
Funnelled wire entry prevents turned back wire strands for quick insertion. Rated for operating temperatures up to 105°C. Suitable for industrial, manufacturing, aerospace, automotive, and electrical power circuits. Set contains one piece of TE Connectivity PIDG insulated Ring Terminal M4 stud size 26 AWG to 16 AWG wire size with red and white nylon insulation.
Explore more solutions in the Power Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes from 26 AWG to 16 AWG.
It operates reliably up to a maximum temperature of 105°C.
The terminal features a high conductivity copper body and a nylon insulation for protection.
This model is compatible with M4 stud sizes.
It is designed with funnelled wire entry, which allows for fast and easy wire insertion.
The overall length of this terminal is 21.44 mm.
The inner ring diameter is 4.34 mm and the outer ring diameter is 7.92 mm.
It features nylon insulation that is color-coded for quick wire size identification.
The contact material is copper, which ensures reliable electrical performance.
The thickness of the terminal is 0.79 mm.
It is suitable for various applications including industrial, aerospace, control instrumentation, and lighting.
The serrated wire barrel provides enhanced tensile strength after crimping.
