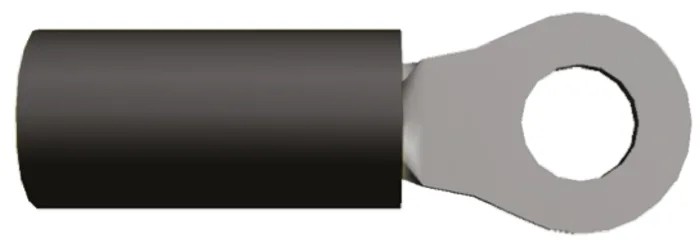

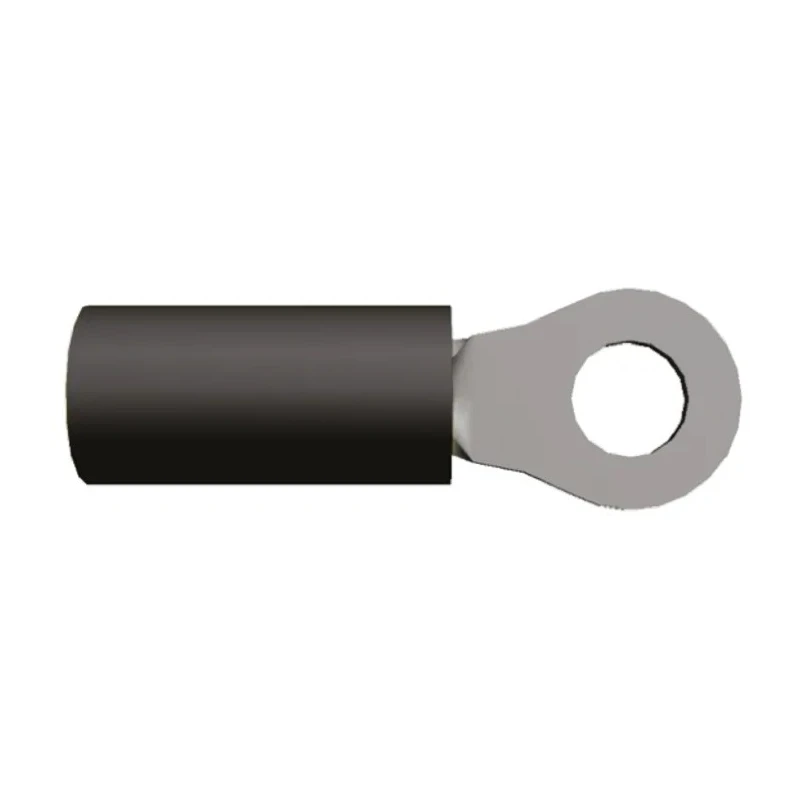

TE Connectivity PIDG STRATO-THERM Insulated Ring Terminal M5 Stud Size 12 AWG to 10 AWG Wire Black 50845-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 1.07mm |
| Model | 50845-2 |
| Insulation | Insulated |
| Overall Length | 1.083in |
| Contact Material | Copper |
| Series | PIDG, STRATO-THERM |
| Maximum Operating Temperature | 288°C |
| Insulation Material | Polytetrafluoroethylene |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.375in |
| Inner Ring Diameter | 0.197in |
| Stud Size | M5 |
Key Features
- Constructed with copper contact material plated with nickel for durability.
- Features polytetrafluoroethylene insulation delivering high temperature resistance up to 288°C.
- Inner ring diameter of 0.197 inches and outer ring diameter of 0.375 inches.
- Overall length measures 1.083 inches with a thickness of 1.07 mm for mechanical robustness.
- Designed for electrical and electronic applications requiring secure and efficient wire terminations.
- Color coded black insulation sleeve for easy identification.
- Engineered for industrial, manufacturing, power distribution, and electrical assembly use cases.
- Manufactured in the United States ensuring quality and compliance.
Product Description
TE Connectivity 50845-2 PIDG STRATO-THERM Insulated Ring Terminal is an advanced wire crimp terminal designed to provide maximum contact and tensile strength after crimping. It consists of a precision-formed copper wire barrel with serrations, plated in nickel, and encased in a black polytetrafluoroethylene (PTFE) insulation sleeve that resists high temperatures up to 288°C.
This ring terminal features an M5 stud size suitable for wire sizes ranging from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²), with an inner ring diameter of 0.197 inches and an outer ring diameter of 0.375 inches. Its overall length is 1.083 inches and thickness is 1.07 mm, providing a compact and robust form factor.
This product is ideal for electrical and electronic industrial applications including manufacturing, industrial power distribution, HVAC, and commercial electrical assembly where high reliability and durability are critical.
Constructed with copper contact material plated with nickel for corrosion resistance. Polytetrafluoroethylene insulation material offers excellent electrical insulation and thermal resistance. High-temperature operation capability up to 288°C enables use in demanding environments.
Designed specifically for PIDG STRATO-THERM series compatible connections. Black insulation color coding ensures quick wire identification and installations. Meets standard form factor and performance requirements for ring terminals.
Made in the United States ensuring consistent manufacturing quality.
This ring terminal is supplied ready for insertion into machinery and electrical assemblies, improving production efficiency with consistent quality. It supports various industrial, laboratory, electrical power connector, and manufacturing applications requiring reliable wire terminations.
Explore the complete range of TE Connectivity Ring Terminals and related power connector components in our Electronics & Electricals category for precise and dependable connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 288°C, allowing it to perform in high-temperature environments.
This terminal is designed for wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
The inner ring diameter is 0.197 inches and the outer ring diameter is 0.375 inches, providing a secure fit for M5 studs.
It is constructed with a copper contact material that is plated with nickel for corrosion resistance, and it features a polytetrafluoroethylene (PTFE) insulation sleeve.
The overall length of this terminal is 1.083 inches, and its thickness is 1.07 mm, contributing to its compact design.
This model is suitable for electrical and electronic applications including manufacturing, industrial power distribution, HVAC, and commercial electrical assembly.
Yes, it is designed specifically for PIDG STRATO-THERM series compatible connections, ensuring reliable performance in those applications.
The insulation sleeve is black, which aids in quick wire identification during installations.
This ring terminal is manufactured in the United States, ensuring consistent quality and compliance with standards.
The precision-formed copper wire barrel features serrations that enhance contact and tensile strength after crimping, ensuring secure wire terminations.
It uses polytetrafluoroethylene (PTFE) insulation, which provides excellent electrical insulation and thermal resistance.
The stud size for this terminal is M5, making it suitable for various industrial applications that require secure connections.
