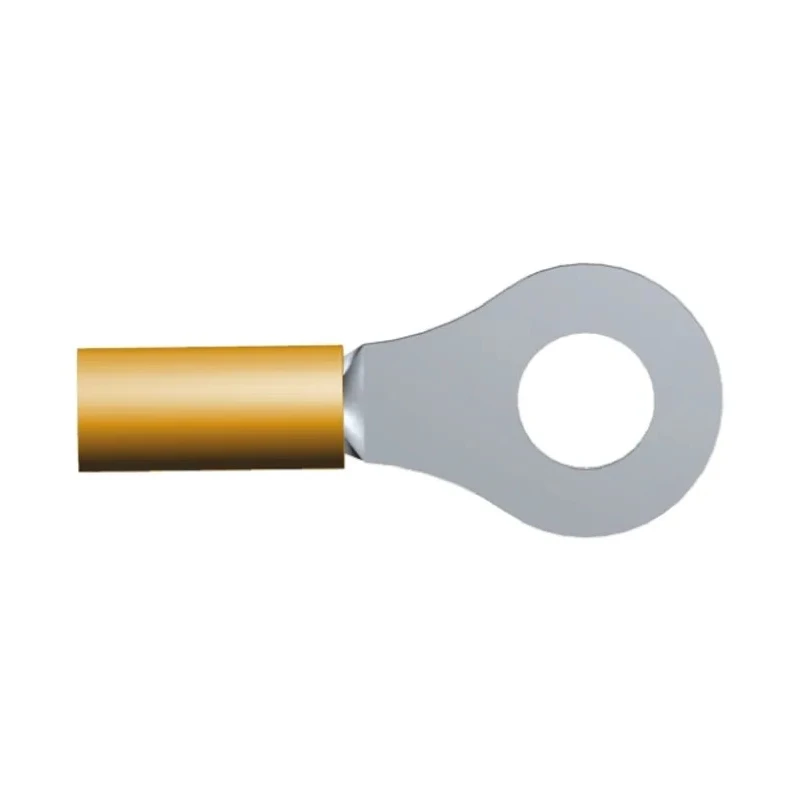

TE Connectivity DG STRATO-THERM Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Orange 322337
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| THICKNESS | 0.79mm |
| Model | 322337 |
| Insulation | Insulated |
| Overall Length | 20.6mm |
| Contact Material | Nickel |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 649°C |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with solid nickel contact material for high corrosion resistance.
- Insulated design provides electrical insulation and mechanical protection.
- Suitable for wire sizes ranging from 16 AWG to 14 AWG (1mm² to 2.6mm²).
- Maximum operating temperature up to 649°C for demanding environments.
- Features orange color coded insulating sleeve for identification.
- Overall length measures 20.6mm with ring thickness of 0.79mm.
- Compatible with M4 stud size mounting.
- Nickel plating ensures excellent conductivity and durability.
Product Description
TE Connectivity 322337 DG STRATO-THERM insulated ring terminal is engineered for industrial and electronic assembly applications requiring reliable, high-temperature performance and secure wire termination.
This ring terminal features solid nickel contact material combined with nickel plating, ensuring enhanced corrosion resistance and robust electrical contact. Its orange color-coded insulation sleeve supports mechanical protection and electrical insulation.
Designed for wire sizes between 16 AWG and 14 AWG (corresponding to 1mm² to 2.6mm²), it effectively terminates into M4 stud sizes, allowing secure mechanical fastening. The overall length of 20.6mm and ring thickness of 0.79mm contribute to its sturdy construction suited for demanding installations.
The terminal's maximum operating temperature reaches 649°C, ideal for applications in industrial, electronic components, power and connectors sectors involving elevated heat environments. Compliance with RoHS standards ensures it meets environmental safety regulations and restrictions on hazardous substances.
The DG STRATO-THERM series by TE Connectivity focuses on high temperature ring tongue crimp terminals with color-coded sleeves facilitating easy identification and integration into wiring harnesses and electrical assemblies.
Constructed using solid nickel for robust electrical connection and mechanical strength. Insulated design significantly reduces risk of electrical shorts and mechanical damage. Wide temperature operating range caters to industrial and electronics manufacturing requirements.
M4 stud compatible for versatile mounting options. Orange insulation sleeve color improves wiring system organization and troubleshooting.
This insulated ring terminal is widely used in power distribution, automotive, industrial equipment, electronics manufacturing, and HVAC systems for secure wiring connections under high temperature and corrosive conditions.
Explore TE Connectivity products and related Ring Terminals on EnvMart for high-quality, reliable electrical connector solutions suitable for diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this insulated ring terminal is 649°C, making it suitable for demanding environments.
This model is compatible with wire sizes ranging from 16 AWG to 14 AWG, which corresponds to 1mm² to 2.6mm².
The terminal is designed to be compatible with M4 stud size mounting, allowing for secure mechanical fastening.
It is constructed with solid nickel contact material and features nickel plating, ensuring enhanced corrosion resistance and robust electrical contact.
The overall length of this terminal is 20.6mm, with a ring thickness of 0.79mm and an outer ring diameter of 8.71mm.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations and restrictions on hazardous substances.
The insulating sleeve of this terminal is orange, which aids in identification and organization within wiring systems.
This model is widely used in power distribution, automotive, industrial equipment, electronics manufacturing, and HVAC systems for secure wiring connections.
The inner ring diameter is 4.34mm, and the outer ring diameter is 8.71mm, contributing to its compatibility with M4 studs.
The insulated design provides electrical insulation and mechanical protection, significantly reducing the risk of electrical shorts and mechanical damage.
This terminal is part of the DG STRATO-THERM series by TE Connectivity, which focuses on high temperature ring tongue crimp terminals.
The thickness of this ring terminal is 0.79mm, which contributes to its sturdy construction.
