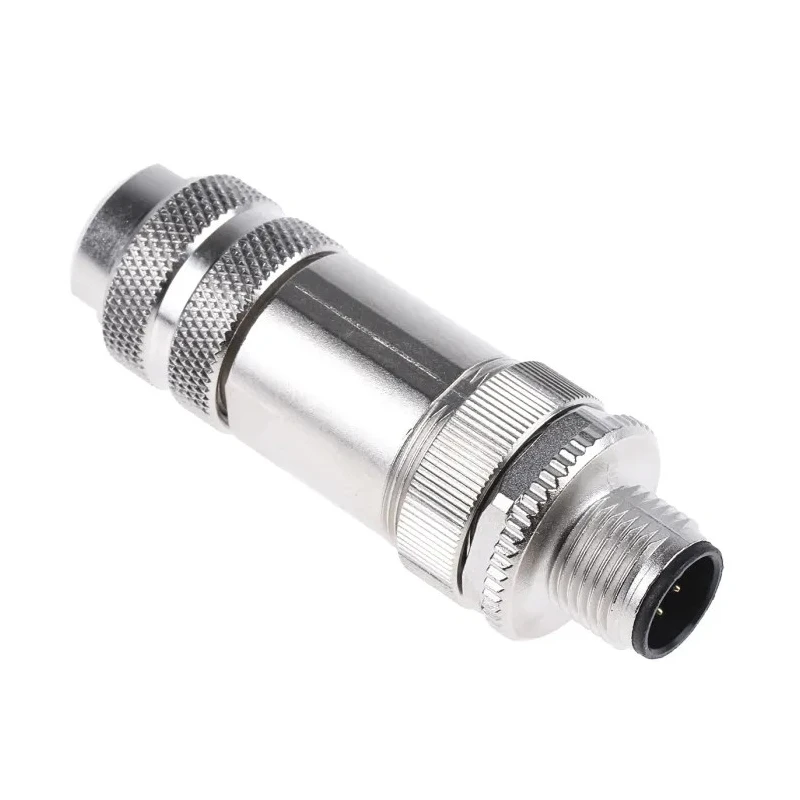

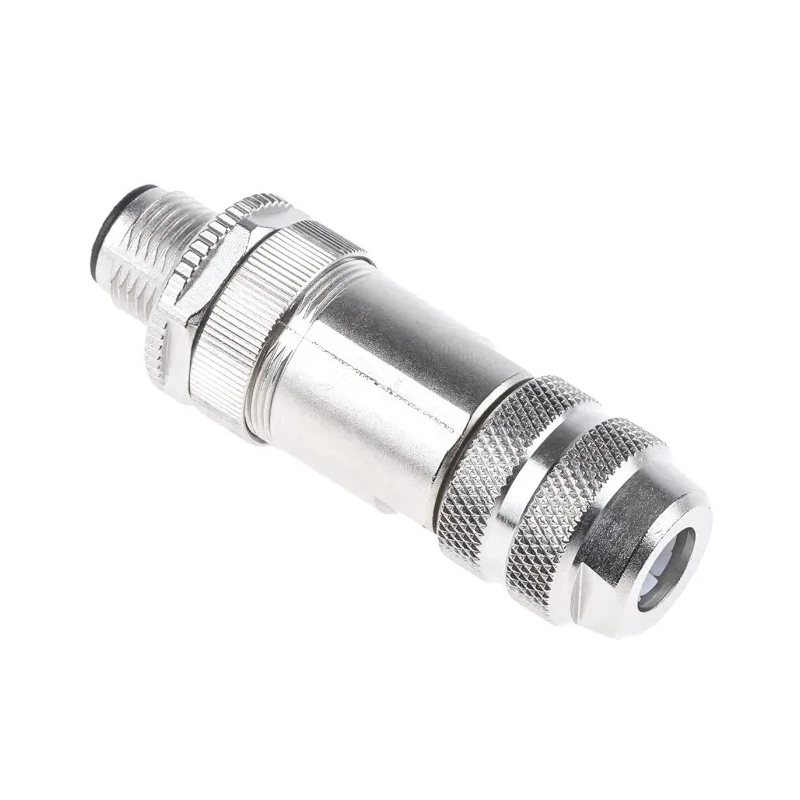

binder Circular Connector 8 Contacts Cable Mount M12 Plug Male IP67 713 Series 99-1487-812-08
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 2A |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 713 |
| Termination Type | Screw Clamp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL 2238 |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shell Size | 12 mm |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- This M12 Male Plug connector has 8 contacts for secure cable connections.
- It supports a voltage rating of 60V and up to 2A current per contact.
- The connector features screw clamp termination for reliable electrical contact.
- It has an IP67 rating ensuring protection against dust and water ingress.
- Durability exceeds 100 mating cycles for long-term industrial use.
- Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
- Housing is zinc die-cast with a polyamide insulating body for mechanical protection.
- The design includes a straight orientation and A-coding to prevent incorrect mating.
Product Description
binder 99-1487-812-08 circular connector is an 8-contact M12 cable mount plug designed for industrial applications with an IP67 rating for excellent ingress protection. This male plug connector supports a voltage of 60V and current up to 2A per contact, ensuring reliable electrical performance.
The connector has a robust zinc die-cast housing and polyamide insulating body, offering durability and mechanical stability. It features gold-plated brass contacts to provide superior conductivity and corrosion resistance. The screw clamp termination ensures secure and maintenance-friendly wiring. Its straight body orientation with A-coding prevents incorrect mating, enhancing system safety.
Engineered to withstand tough industrial environments, it operates reliably within a wide temperature range of -40°C to 85°C. The connector exceeds 100 mating cycles durability and is UL 2238 certified, verifying its safety and quality standards. Manufactured in Germany, it is suitable for process control, industrial automation, instrumentation, and commercial electronics.
The binder 713 series is trusted for applications requiring robust, shieldable, and secure cable connections. Its IP67 rating provides dust-tight sealing and protection against water jet ingress. The connector's cable outlet diameter supports 6mm to 8mm cables for versatile wiring options.
This M12 male plug connector has 8 contacts for multi-circuit connectivity. Voltage rating of 60V with current capacity of 2A per contact ensures electrical reliability. Gold-plated brass contacts and zinc die-cast housing deliver corrosion resistance and mechanical strength.
Screw clamp termination simplifies installation and maintenance. IP67 rated for protection against dust and water ingress in industrial settings. Durability over 100 mating cycles extends service life. Appropriate for industrial automation, process control, instrumentation, and commercial electronics.
Operating temperature range from -40°C to 85°C for harsh environments. UL 2238 approved ensuring compliance with recognized safety standards. Made in Germany with high-quality manufacturing standards. Explore a wide range of Industrial Circular Connectors on EnvMart for your electronics and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a voltage rating of 60V and a current capacity of up to 2A per contact.
It has an IP67 rating, providing protection against dust and water ingress.
The housing is made of die-cast zinc, and the contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.
This model operates reliably within a temperature range of -40°C to 85°C.
It features 8 contacts for multi-circuit connectivity.
It uses screw clamp termination, ensuring secure and maintenance-friendly wiring.
The connector has a straight orientation, which helps prevent incorrect mating.
The shell size of this connector is 12 mm.
It is designed to exceed 100 mating cycles, enhancing its service life in industrial applications.
Yes, it is UL 2238 certified, ensuring compliance with recognized safety standards.
It is suitable for industrial automation, process control, instrumentation, and commercial electronics.
The cable outlet diameter supports cables ranging from 6mm to 8mm.
