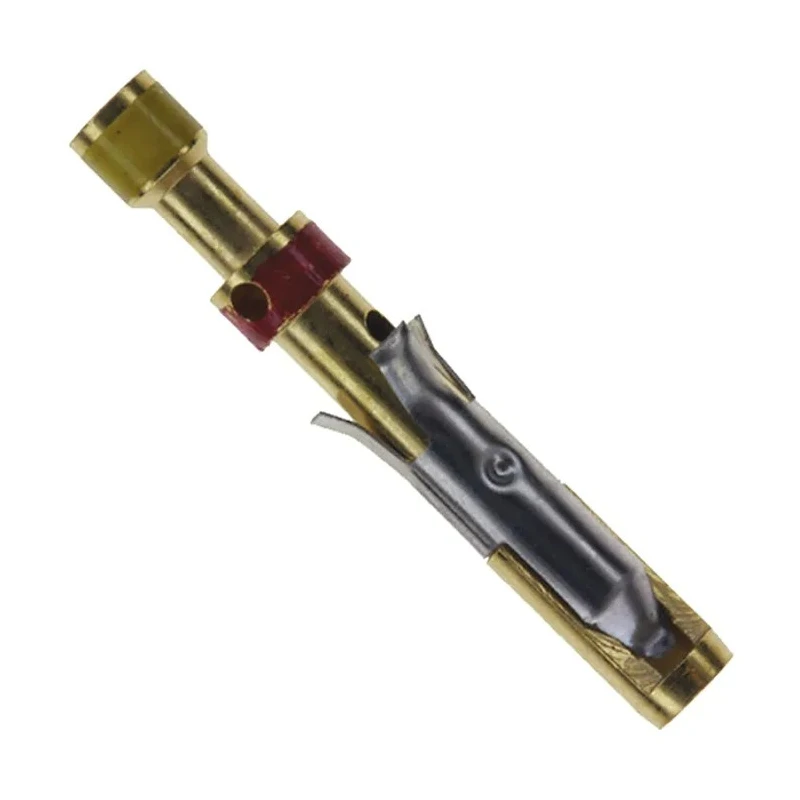

TE Connectivity Type II Series Female Crimp Terminal 24 AWG Min Crimp 20 AWG Max 13A Brass Contact Gold Plating 201580-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 20.19mm |
| Model | 201580-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Type II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | G Series and M Series Connector Housings, CPC |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- The contact is made of brass with gold plating for enhanced conductivity and corrosion resistance.
- Designed for use with G Series and M Series Connector Housings and CPC connectors.
- Operates reliably within temperature ranges of -55°C to 105°C.
- Crimp termination type allows secure electrical connections through crimping tools.
- Ideal for electronics manufacturing, assembly, and repair applications requiring dependable wire termination.
- Part of TE Connectivity's Type II series, known for high performance and durability.
Product Description
TE Connectivity 201580-1 Type II Series Female Crimp Terminal supports 24 AWG minimum and 20 AWG maximum wire sizes with a current rating of 13A. This brass contact features gold plating, improving electrical conductivity and corrosion resistance, making it suitable for demanding electrical and electronic applications.
This crimp terminal is designed for use with G Series and M Series Connector Housings and CPC connectors by TE Connectivity, offering a reliable and precise connection method through crimping. The contact length of 20.19mm facilitates proper mechanical and electrical fit in connector assemblies.
With an operating temperature range from -55°C to 105°C, this terminal can withstand harsh environmental conditions and is ideal for industrial, electronics manufacturing, automotive, and telecommunications applications.
TE Connectivity’s Type II series contacts maintain industry standards though this product carries no additional certifications. The crimp termination type requires compatible crimping tools to ensure correct assembly and optimal performance.
The contact material is durable brass with gold plating for superior electrical characteristics. Rated current capacity of 13 amperes supports various electronic systems. Compatible with specific connector housings for seamless integration.
Wide operating temperature range ensures reliability under diverse environmental conditions. Crimp termination design allows efficient and secure wire attachment. Compact length of 20.19mm fits standard connector assemblies.
Ideal for electrical wiring, PCB connections, and communications equipment.
This product is new and made to meet the exact specifications to guarantee performance. It is an essential component for companies requiring high-quality Crimp Terminals in their production lines or maintenance operations.
Explore more TE Connectivity products and related crimp contacts on EnvMart for comprehensive industrial and electronics application solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crimp terminal has a current rating of 13A, making it suitable for various electronic systems.
It supports a minimum wire size of 24 AWG and a maximum wire size of 20 AWG.
The contact is made of brass and features gold plating, which enhances electrical conductivity and corrosion resistance.
It operates reliably within a temperature range of -55°C to 105°C, allowing it to withstand harsh environmental conditions.
This terminal is designed for use with G Series and M Series Connector Housings as well as CPC connectors by TE Connectivity.
The contact length of this crimp terminal is 20.19mm, facilitating proper mechanical and electrical fit in connector assemblies.
It uses a crimp termination type, which allows for secure electrical connections through compatible crimping tools.
This product does not carry any additional certifications but maintains industry standards as part of TE Connectivity’s Type II series.
It is ideal for applications in industrial, electronics manufacturing, automotive, and telecommunications.
The minimum wire size is 0.2 mm² and the maximum wire size is 0.6 mm².
The country of origin for this crimp terminal is India.
This crimp terminal is part of the Type II series by TE Connectivity.
