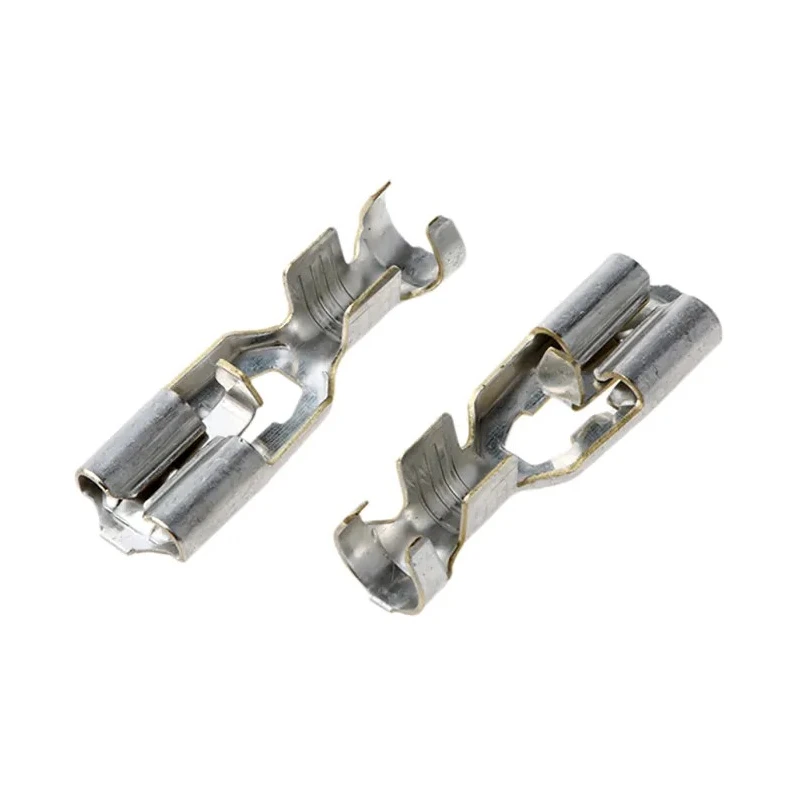

TE Connectivity Positive Lock Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 15 AWG 170335-1

TE Connectivity 170335-1 Positive Lock Uninsulated Female Spade Connector is a precision-engineered wire terminal designed for robust and secure electrical connections in industrial and commercial applications. It features a crimp termination suitable for reliable mechanical and electrical connection with 15 AWG wire sizes and supports a tab size of 6.35 x 0.81 mm.

Manufactured from high-quality brass with tin plating, this female Spade Connector offers excellent conductivity and corrosion resistance. The straight orientation with positive lock mechanism ensures a low insertion force while providing a secure snap action locking on mating tabs, which contain holes or dimples.

The uninsulated design is ideal for high-density electronic assemblies and allows for easy visual inspection of the connection. The connector supports wire gauge compatibility ranging from 20 AWG to 10 AWG, making it a versatile solution for various electrical wiring needs.

The connector length of 25.8 mm delivers a compact form factor suitable for space-constrained environments in automotive, manufacturing, electrical panel building, HVAC, and other industrial sectors. The distinct black color coding enhances wiring organization and identification.

For additional protection and insulation, users can order compatible shrouds separately in black (388-3246), natural (388-3252), or red (388-3268) colors. Constructed from brass with tin plating for reliable electrical connectivity.

Offers a straight orientation with positive snap-action locking onto mating tabs. Supports wire sizes from 20 AWG to 10 AWG ensuring versatile compatibility. Uninsulated design suitable for high-density electrical assemblies.

Overall connector length of 25.8 mm provides compact installation. Designed to accept mating tabs featuring holes or dimples for secure mechanical lock. Available in black color for easy identification in wiring harnesses.

Requires separate order for shrouds available in black, natural, and red variants.

These TE Connectivity Positive Lock connectors are widely used in electronics manufacturing, automotive wiring systems, industrial control panels, and power distribution assemblies, offering dependable connection performance and ease of assembly.
