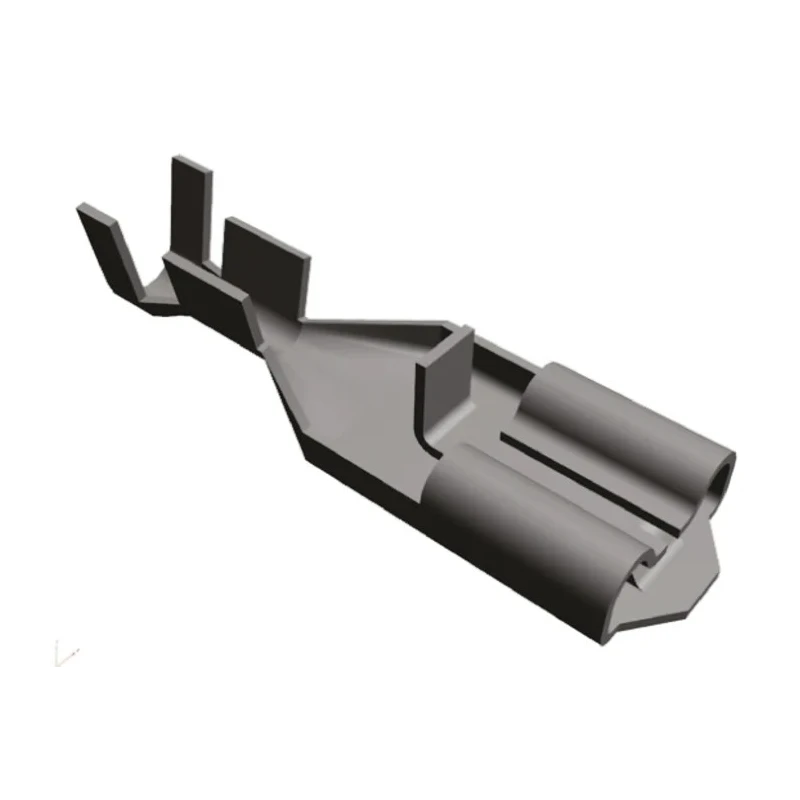

TE Connectivity Positive Lock .250 Mk II Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm 170328-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Model | 170328-1 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 25.8mm |
| Contact Material | Brass |
| Series | Positive Lock .250 Mk II |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.8mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 10AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Constructed with brass contact material plated with tin for enhanced conductivity and corrosion resistance.
- Designed with a straight orientation and black color for easy identification.
- Features a 6.35 mm wide and 0.81 mm thick tab size to fit standard male connectors.
- Uninsulated design facilitates direct connection and secure crimping.
- Overall length measures 25.8 mm for compact installation in electronic assemblies.
- Compatible with the Positive Lock .250 Mk II series for snap action locking and reduced insertion force.
- Suitable for industrial, electronic component manufacturing, and power connector applications.
- Supports wire sizes from 0.8 mm² to 2 mm² ensuring versatility across wiring needs.
Product Description
TE Connectivity 170328-1 Positive Lock .250 Mk II black uninsulated female spade connector with crimp termination is engineered for dependable electrical connections in electronic and power applications. This straight-oriented Spade Connector features brass contact material with tin plating, providing excellent electrical conductivity and resistance to corrosion over extended use. The uninsulated design allows easy inspection and secure crimping on wire sizes ranging from 0.8 mm² (18 AWG) to 2 mm² (10 AWG), making it versatile for various wiring setups.
Measuring 25.8 mm in overall length, this component fits efficiently in compact electronic assemblies and power distribution systems. The product belongs to the Positive Lock .250 Mk II series, offering reduced insertion force and a snap action locking mechanism ensuring a secure and reliable contact that only releases when an integral depressor is deflected. Finished in black, it balances functionality with easy identification in wiring harnesses and terminals.
This connector is especially suitable for industrial environments, electronics manufacturing, electrical distribution panels, and repair applications where reliable mechanical and electrical performance is vital. Please note, compatible shrouds must be ordered separately to protect the contacts and ensure additional safety in assembly.
Constructed of brass with tin plating for durability and conductivity. Uninsulated female spade design with crimp termination for secure connections. Accepts wire sizes 18 AWG to 10 AWG (0.8 mm² to 2 mm²). Straight orientation with a tab size of 6.35 x 0.81 mm for standard compatibility.
Positive Lock mechanism provides a snap-on action with reduced insertion force. Compact 25.8 mm overall length suitable for varied electronic assemblies. Compatible shrouds sold separately for extended protection. Explore our extensive range of electronic connectors and components at EnvMart to meet your industrial, manufacturing, and maintenance needs efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this connector is 6.35 mm wide and 0.81 mm thick.
This model accepts wire sizes ranging from 0.8 mm² (18 AWG) to 2 mm² (10 AWG).
The overall length of this spade connector is 25.8 mm.
The contact material is brass, which is plated with tin for enhanced conductivity and corrosion resistance.
No, this connector is uninsulated, allowing for direct connection and secure crimping.
This connector belongs to the Positive Lock .250 Mk II series.
This connector has a straight orientation.
It is suitable for industrial environments, electronics manufacturing, electrical distribution panels, and repair applications.
This model uses crimp termination for secure connections.
Yes, compatible shrouds must be ordered separately to protect the contacts and ensure additional safety in assembly.
This connector is a female spade connector.
The country of origin for this connector is India.
