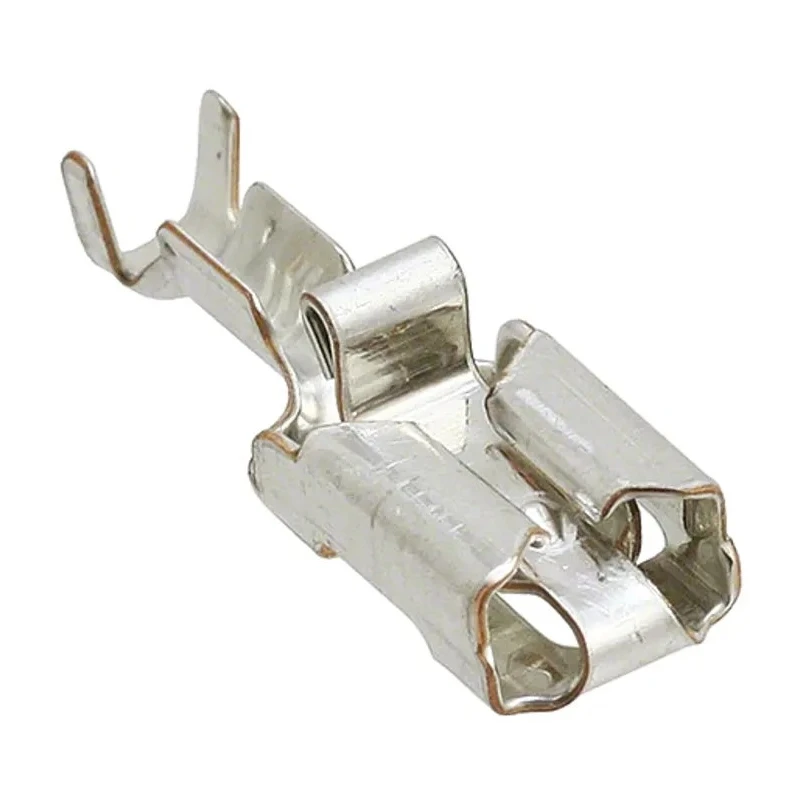

TE Connectivity Positive Lock Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 20 AWG 160773-4

TE Connectivity 160773-4 Positive Lock Black Uninsulated Female Spade Connector is a crimp termination type designed for secure and efficient electrical connections. Featuring a positive lock mechanism, this connector allows reduced insertion force and provides a reliable snap action lock onto mating tab terminals containing holes or dimples, ensuring a mechanically sound connection.

Constructed from high-quality phosphor bronze, the contact is plated with tin to enhance conductivity and protect against corrosion. It accommodates wire sizes from 20 AWG (0.5 mm²) to 15 AWG (1.5 mm²), making it versatile for various wire gauges in industrial and electronic assemblies.

The connector has a tab width of 6.35 mm and thickness of 0.81 mm, with an overall length of 22.9 mm and a straight orientation, allowing for straightforward installation in wiring systems. Its uninsulated black color design aids in organization and identification within wiring panels.

Positive Lock series connectors from TE Connectivity are common in electrical, manufacturing, automotive, and industrial applications where secure and durable wire-to-wire or wire-to-tab connections are critical. These connectors facilitate quick assembly while maintaining high reliability and electrical performance.

The design includes an integral depressor that allows disconnection only when intentionally deflected, adding an extra layer of safety against accidental disconnection. This product is intended for new installations and complies with general electronics component standards, though it does not carry specific certifications.

Set your assemblies apart with TE Connectivity's Positive Lock 250 Mk I series featuring this 160773-4 female spade connector, a trusted choice among professionals in electrical and electronic fields.

Uninsulated female Spade Connector designed for reliable electrical contact. Constructed from phosphor bronze material with tin plating for excellent conductivity and corrosion resistance. Compatible with wire sizes ranging from 20 AWG (0.5 mm²) to 15 AWG (1.5 mm²).

Positive lock mechanism ensures secure connection with snap action locking feature. Overall length of 22.9 mm with straight orientation for efficient wiring layouts. Black color coding facilitates easy identification and organization in wiring assemblies.

Suitable for industrial, electronic, and automotive electrical wiring applications. Designed to meet standard wire terminal and splice connector requirements without insulation. Explore a wide range of high-quality connectors and crimp contacts at EnvMart for all your professional electrical and electronic component needs.
