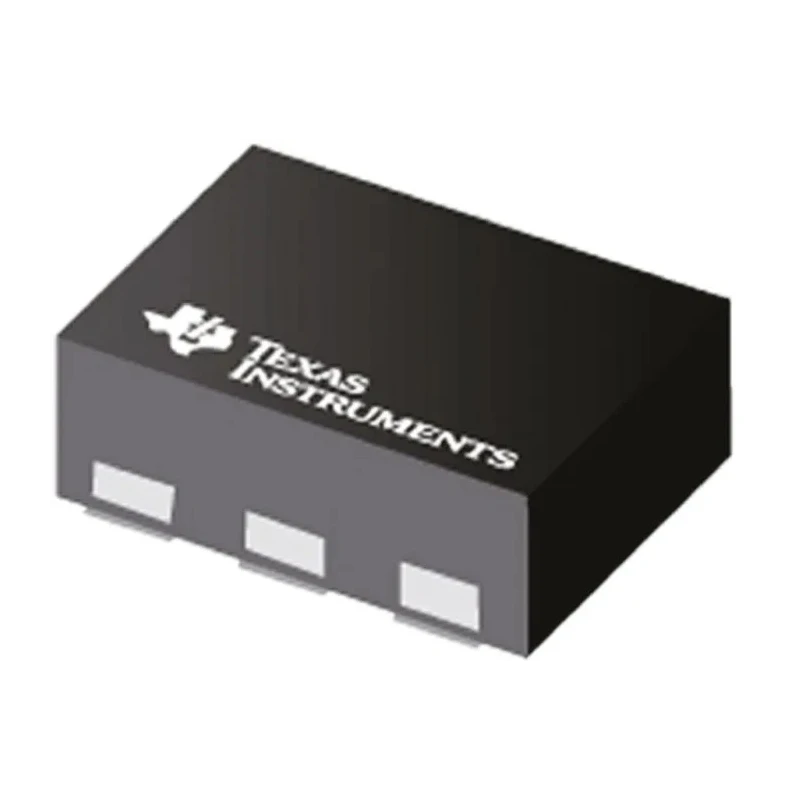

Texas Instruments 3-Element Uni-Directional TVS Diode Array 60 W, 6-Pin SON TPD4S012DRYR

Texas Instruments TPD4S012DRYR is a 3-element uni-directional TVS diode array that offers superior protection against transient voltage spikes and electrostatic discharges. This device supports a peak pulse power dissipation of 60 W, enabling it to effectively safeguard sensitive semiconductor circuits in electronics systems.

Featuring a complex diode array configuration in a compact 6-pin SON surface mount package, it provides comprehensive protection for multiple high-speed data lines such as DVI, HDMI, IEEE1394, USB, Ethernet, and video lines. The array includes three separate elements on a single chip, ensuring robust suppression against voltage transients.

With a minimum breakdown voltage of 20 V, it operates safely within the specified temperature range of -40°C to 85°C. The device's ultra-low capacitance characteristics minimize any signal distortion, making it ideal for sensitive data transmission paths. Its small footprint dimensions of 1.5 mm length, 1.05 mm width, and 0.55 mm height allow efficient mounting on compact printed circuit boards.

This TVS Diode Array fully complies with IEC61000-4-2 level 4 standards for electrostatic discharge protection, reinforcing its suitability for industrial and commercial electronic applications requiring reliable transient voltage suppression.

Complex diode array configuration ensures efficient transient voltage suppression. Uni-directional design provides reliable ESD protection for multiple data lines. Minimum breakdown voltage of 20 V safeguards sensitive electronic components.

Supports peak pulse power dissipation of 60 W and peak pulse current of 3 A. Operates reliably between -40°C to 85°C with ultra-low capacitance for high-speed data lines. Compact dimensions of 1.5 mm length, 1.05 mm width, and 0.55 mm height.

Ideal for ESD protection on DVI, HDMI, IEEE1394, USB, Ethernet, and video interfaces. Surface mount SON package with 6 pins for easy PCB integration. Includes 3 elements per chip for enhanced data line protection. Complies with IEC61000-4-2 level 4 standard for transient voltage suppression.

Widely used in electronic, telecommunications, data and video equipment to protect critical circuits and maintain system integrity in harsh electrostatic discharge environments. This product fits industrial, laboratory, manufacturing, and commercial electronic design and repair applications.
