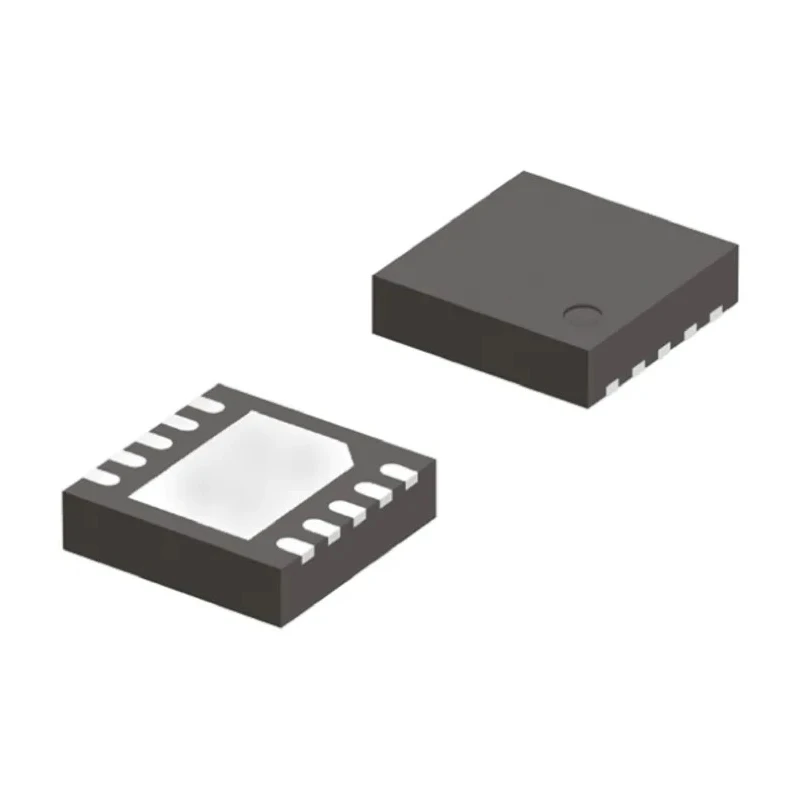

Littelfuse 4-Element Uni-Directional TVS Diode Array 10-Pin DFN SP3010-04UTG

Littelfuse SP3010-04UTG is a 4-element uni-directional Transient Voltage Suppressor (TVS) diode array housed in a compact 10-pin Dual Flat No-Lead (DFN) package. It is explicitly designed to offer protection against transient voltage surges and Electrostatic Discharge (ESD) for sensitive semiconductor devices.

This TVS diode array features a maximum reverse stand-off voltage (Vwm) of 6 volts, a clamping voltage (VC) of 12.3 volts, and can handle peak pulse currents (Ippm) up to 2 Amperes. The device maintains a low reverse leakage current of only 500 nanoamperes, enhancing energy efficiency. It is rated to operate reliably across a wide temperature range from -40°C to 125°C, which makes it well-suited for automotive as well as general industrial and electronic applications. Compliance with AEC-Q101 automotive standard underscores its quality and robustness.

The array includes 4 diode elements per chip arranged in a complex array configuration and utilizes surface mount technology for efficient circuit assembly. It measures 2.6 mm in length, 1.1 mm in width, and has a height of 0.55 mm, providing a low-profile solution ideal for space-constrained PCB designs.

This Littelfuse SP3010 series device is part of the SP30xx family of low capacitance, high-performance TVS diode arrays designed to protect circuits from transient voltages and ESD events. It finds applications in electronic components, power and connectors, and various semiconductor systems requiring transient voltage protection.

Provides low capacitance transient voltage suppression in a compact DFN package. Uni-directional diode configuration suitable for power supply and signal line protection. Designed for automotive and industrial electronics with broad operating temperature.

4-element diode design improves protection reliability in complex array setups. Surface-mount package facilitates automated, high-volume PCB assembly. Offers ESD protection for sensitive devices against voltage spikes and surges.

Compliant with AEC-Q101 automotive standards for durability and performance. Ideal for use in electronic circuits, semiconductor devices, power connectors, and industrial control equipment. Compact size supports space-saving designs in modern electronic applications.

Explore the Littelfuse product range for advanced TVS Diode Arrays and rely on EnvMart for premium electronic components suitable for laboratory, industrial, automotive, and manufacturing applications.
