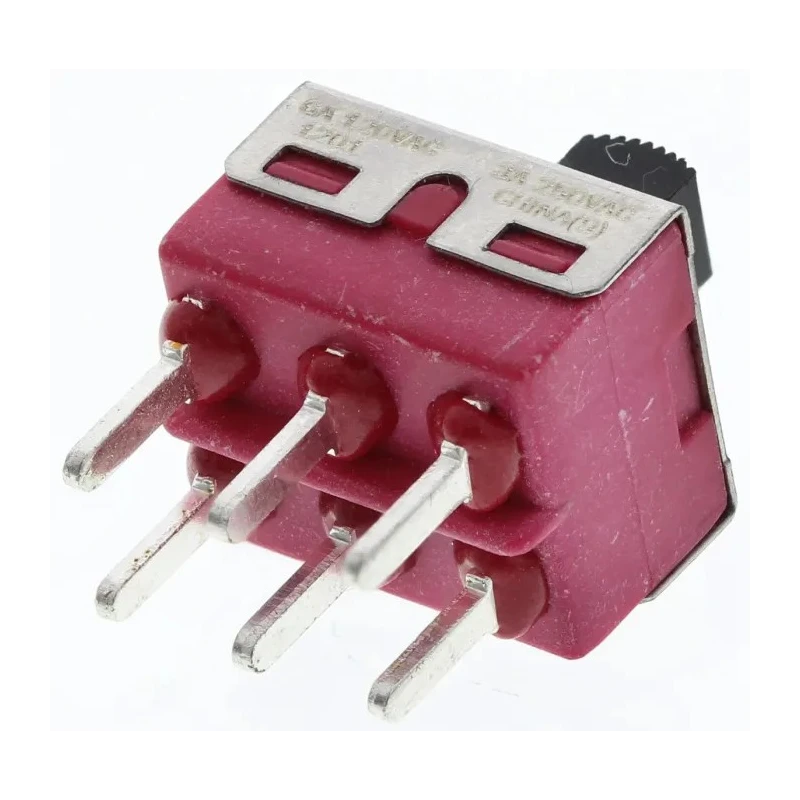

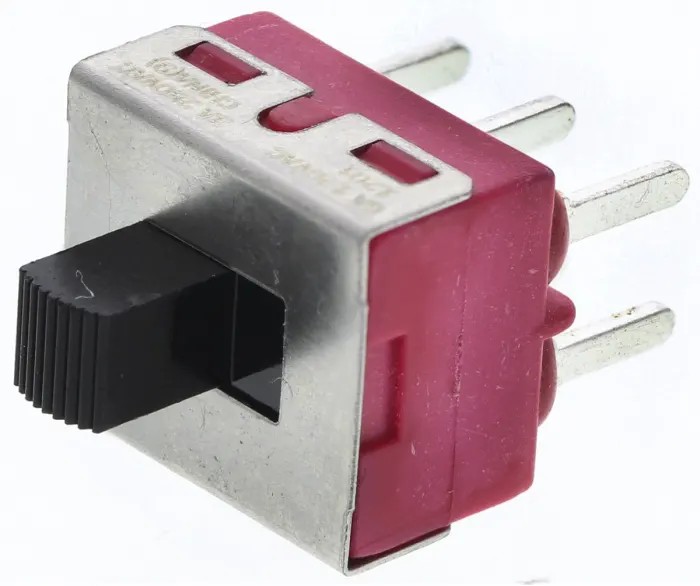

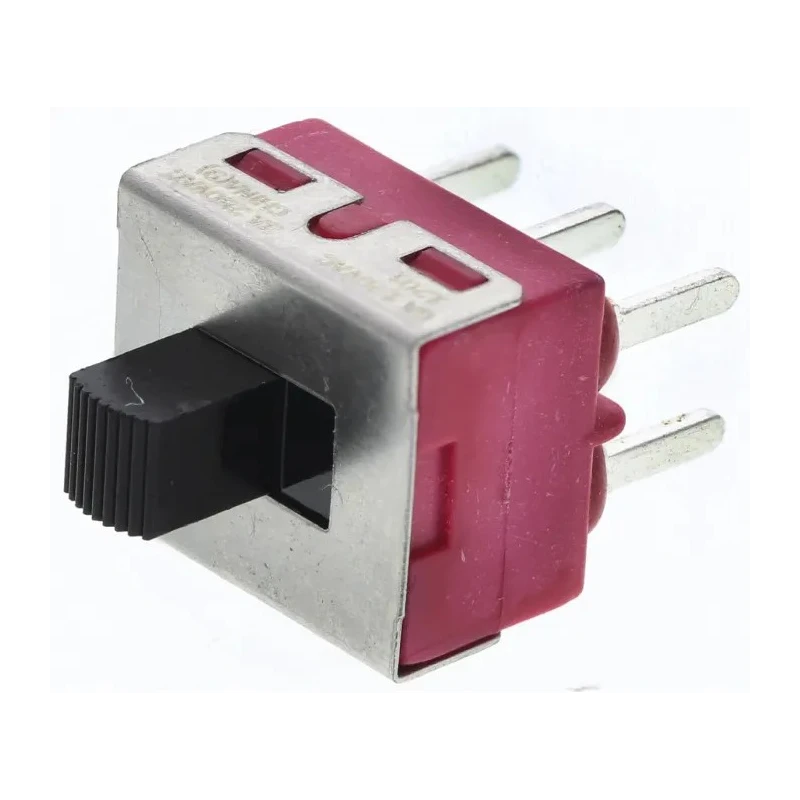

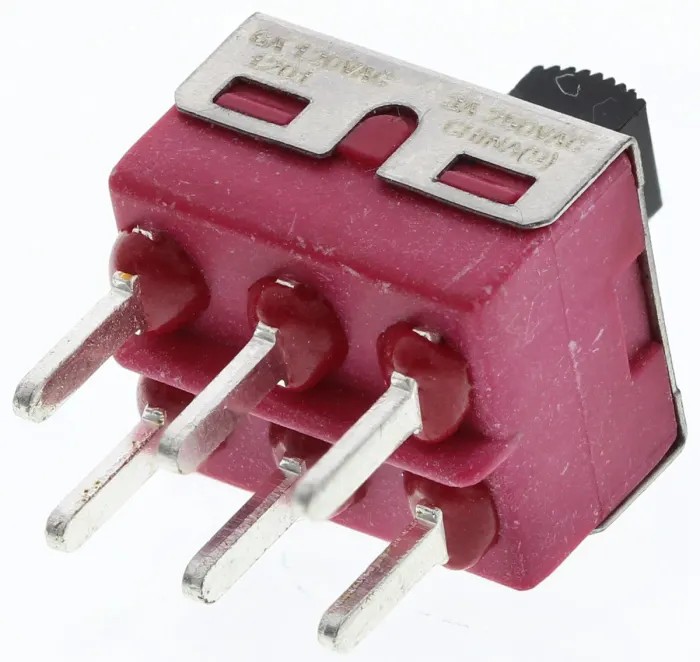

C & K PCB Slide Switch DPDT Latching 6A Nylon 28V DC 250V AC 1000 Series 1201M2S3CQE2

Free Delivery in India | Lowest Global Shipping Charges

C & K PCB Slide Switch DPDT Latching 6A Nylon 28V DC 250V AC 1000 Series 1201M2S3CQE2

Name: C & K PCB Slide Switch DPDT Latching 6A Nylon 28V DC 250V AC 1000 Series 1201M2S3CQE2
Brand: C & K
SKU: 217710
Price: 19.84 USD
Availability: InStock



Category Slide Switch Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Operating Temperature Range	-30 to +65°C
Length	12.7mm
Model	1201M2S3CQE2
Depth	12.7mm
Width	11.43mm
Mount Type	PCB
Series	1000
Maximum Operating Temperature	65°C
Contact Configuration	DPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	CSA, UL
Switch Operation	Latching
Contact DC Voltage	28V dc
Switch Contact Current	6A
Mechanical Life	40000Cycles
Contact AC Voltage	250V ac
Actuator Material	Nylon
C & K Panel Slide Switch DPDT Latching 6A NylonBrand	C & K

Key Features

This slide switch features a double pole double throw (DPDT) contact configuration.
It supports a switch contact current of 6 amperes for robust applications.
Nylon actuator material ensures durability and insulation.
Suitable for through hole PCB mounting with a compact size of 12.7mm length, 11.43mm width, and 12.7mm depth.
Operates within -30°C to +65°C temperature range for diverse environmental conditions.
Mechanical life rated at 40,000 cycles guarantees long-term reliability.
Switch configuration is On-None-On with latching operation type.
Contact voltage ratings are 28V DC and 250V AC for versatile use cases.

Product Description

C & K 1201M2S3CQE2 PCB Slide Switch DPDT Latching 6A Nylon is a high-quality miniature slide switch designed for printed circuit board applications requiring reliable latching operation and robust current handling.

This switch belongs to the 1000 series and features epoxy sealed terminals suitable for bottom wash cleaning, enhancing durability and performance in demanding conditions.

The switch has a double pole double throw (DPDT) contact configuration and supports a maximum current rating of 6 amperes, making it ideal for various electrical and automation equipment.

The actuator is made of durable nylon, and the switch case uses Diallyl Phthalate material complying with UL 94V-0 flammability standards, ensuring safety during extended operations.

With compact dimensions of 12.7mm length, 11.43mm width, and 12.7mm depth, it fits well in space-constrained PCB applications. The through hole terminal type facilitates straightforward soldering and secure mounting.

Operating temperature ranges from -30°C to +65°C, making it suitable for use in harsh environments including industrial, automation, telecommunications, and computer peripherals. Double Pole Double Throw (DPDT) contact configuration for versatile switching.

6A switch contact current for reliable power handling. On-None-On switch configuration with latching operation. Nylon actuator and UL 94V-0 rated case material for safety and durability. Epoxy sealed terminals suitable for bottom wash cleaning processes.

Mechanical life of 40,000 cycles ensures long-term reliability. Wide temperature operating range from -30°C to +65°C. Certified approvals from UL and CSA.

This C & K slide switch series is widely adopted in electrical automation, test and measurement equipment, telecommunications, and computer hardware due to its dependable performance and compact design.
