| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.65mm |
| Length | 1.7mm |
| Model | BZT52C2V7T-7 |
| Mount Type | Surface |
| Series | BZT52C2V7T |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 20μA |
| Nominal Zener Voltage Vz | 2.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |
| Typical Voltage Temperature Coefficient | -1.75mV/°C |
| Surface Mount case | SOD-523 |

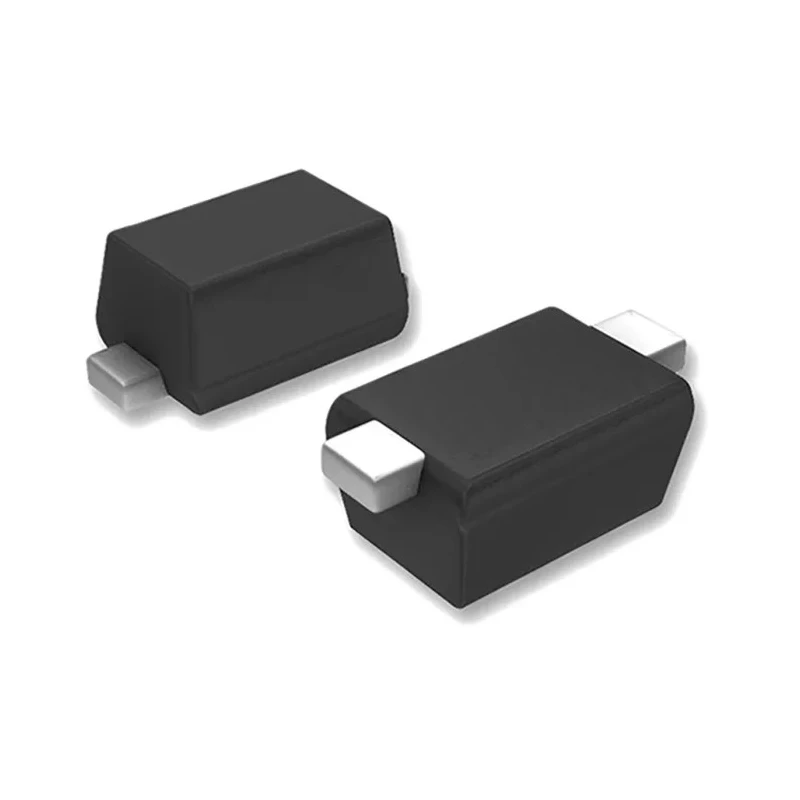

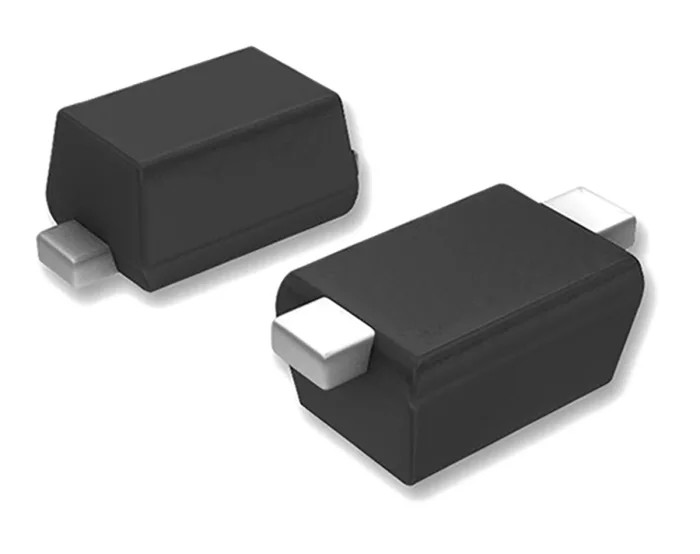

DiodesZetex BZT52C2V7T-7 is a surface mount Zener diode designed for precision voltage regulation applications. This single configuration diode supports a nominal Zener voltage of 2.7 volts and can dissipate up to 300 milliwatts of power reliably. Its SOD-523 package makes it ideal for compact printed circuit board mounting in electronic devices.
The diode operates efficiently within a temperature range of -65°C to 150°C. It maintains low reverse leakage current at a maximum of 20 microamperes, ensuring minimal power loss in circuits. A test current of 5 milliamperes is used for evaluating diode operation and its impedance is optimized for voltage regulation with a maximum of 600 ohms.
With physical dimensions of 1.7 mm length and 0.65 mm height, this diode fits high-density electronic assemblies. It features a typical voltage temperature coefficient of -1.75 millivolts per degree Celsius, enhancing stability across temperature variations.
This Zener diode is manufactured in China and is supplied new. It is tailored for applications demanding precise voltage regulation such as industrial automation, communications, and consumer electronics equipment.
Key attributes include a compact surface mount package, high reliability over wide temperature ranges, and efficient voltage regulation characteristics. Single diode configuration designed for voltage regulation. Package type SOD-523 suitable for surface mounting on PCBs.
Maximum power dissipation of 300 milliwatts ensures reliability. Temperature tolerance ranges from -65°C to 150°C. Low maximum reverse leakage current of 20 microamps for efficiency. Test current preferred at 5 mA for optimal operation.
Maximum Zener impedance is 600 ohms, providing voltage stability. Typical voltage temperature coefficient of -1.75 mV per degree Celsius. Compact physical dimensions: length 1.7 mm and height 0.65 mm. Manufactured in China with new product condition.
This Zener Diode is important for engineers working in electronics manufacturing, repair, and design, supporting stable operation in a variety of industrial and commercial electronic systems. Browse related semiconductor components at EnvMart for comprehensive sourcing options.
