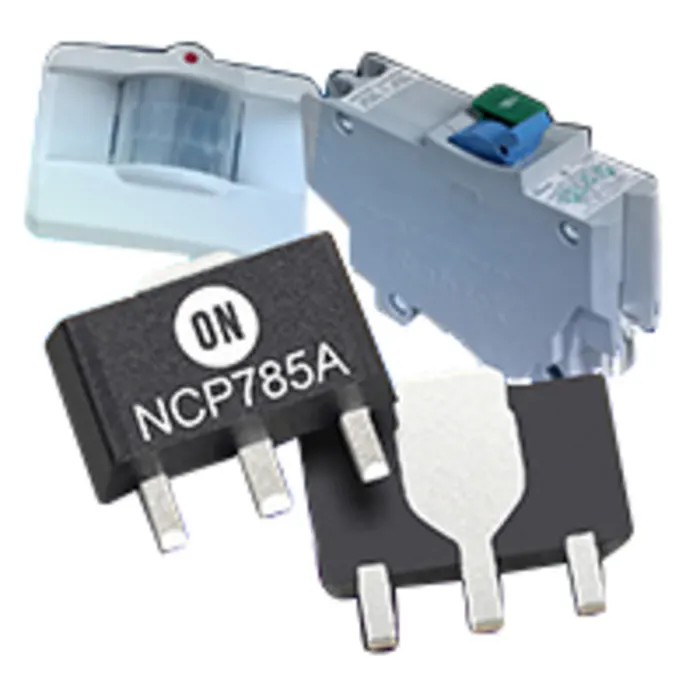

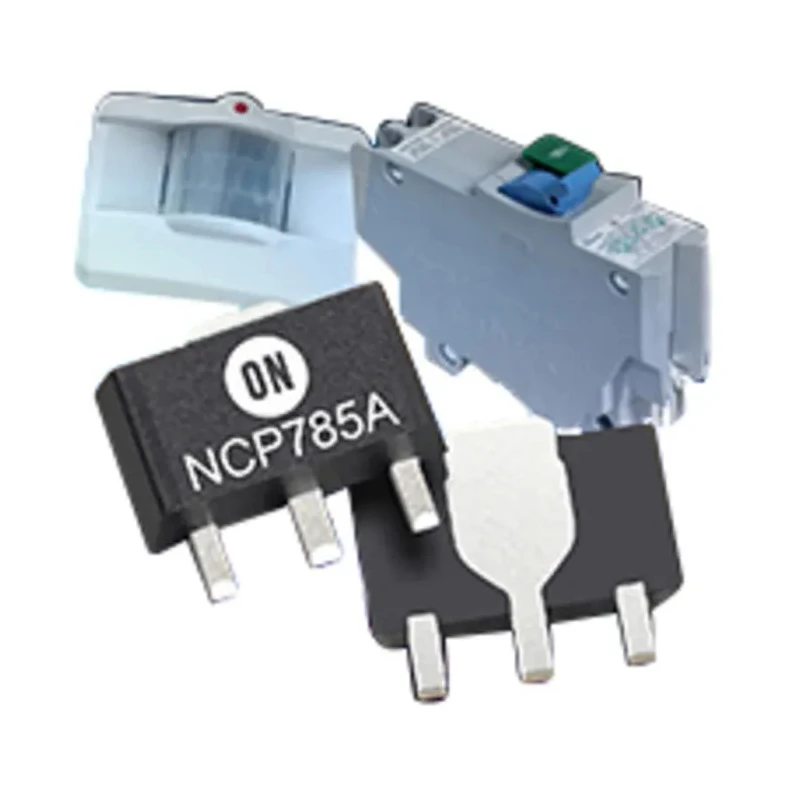

onsemi High-Performance Voltage Regulator 450V DC, 4-Pin SOT Package NCP785AH33T1G

onsemi NCP785AH33T1G Voltage Regulator offers a high-performance linear regulation solution with a wide operating input voltage up to 450 V DC and maximum input tolerance of 700 V DC. Packaged in a compact 4-pin SOT surface mount package, this regulator provides excellent output voltage accuracy within ±5%, ultra low quiescent current as low as 15μA typical, and high power supply rejection ratio of 80 dB at 120 Hz, effectively reducing ripple voltage from the input.

With an operating temperature range up to 150°C and automotive standard AEC-Q100 qualification, the NCP785AH33T1G is highly suitable for demanding applications including industrial and home automation systems, smart metering devices, and household appliances requiring stable voltage regulation under varying conditions.

The positive polarity device ensures ease of integration into existing designs while the surface mount SOT package enables efficient PCB space usage, making it ideal for space-constrained electronic products.

Stable output voltage with ±5% accuracy for precise regulation. Ultra low quiescent current (typical 15μA) for energy-efficient operation. High PSRR of 80 dB at 120 Hz to reduce input ripple effects. Wide input voltage range up to 450 V DC for high-voltage applications.

Compact 4-pin SOT surface mount package with positive polarity. Automotive standard AEC-Q100 qualified for reliability in automotive systems. Suitable for industrial, laboratory, construction, HVAC, manufacturing, smart metering, and commercial electronics.

Compact physical dimensions of 4.6 mm length, 2.6 mm width, and 1.6 mm height.

This onsemi Voltage Regulator is an excellent choice for engineers seeking a reliable, efficient, and compact voltage regulation component to ensure consistent performance in electrically demanding environments. Explore a wide range of power management ICs on EnvMart designed for industrial and commercial use.
