Samtec TSW Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-110-07-G-D

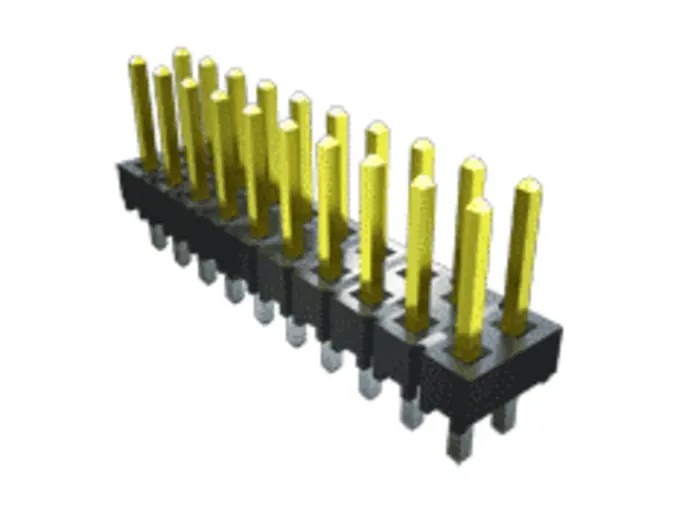

Samtec TSW-110-07-G-D is a high-quality TSW Series straight through hole pin header featuring 20 male contacts arranged in 2 rows with a standard 2.54 mm pitch. The connector is unshrouded and designed for through-hole mounting, making it fit for various industrial and electronic applications requiring reliable board-to-board or wire-to-board connections.

The housing material is glass filled polyester, providing robust insulation and mechanical support. Contacts are made of phosphor bronze with gold plating, ensuring high conductivity, durability, and resistance against corrosion. The connector supports a current rating of 4.7 A and voltage rating up to 465 V, suitable for many PCB connection requirements.

Operating temperature range from -55°C up to 125°C allows for use in harsh environmental conditions. The termination type is solder, offering a secure and stable electrical connection. The contact system utilizes a .025” (0.635 mm) square post design contributing to reliable contact performance and easy mating.

This connector is an Extended Life Product™, capable of enduring up to 2500 mating cycles and passing 10 years of Mixed Flowing Gas (MFG) testing, which makes it ideal for long-term industrial and electronic assembly usage.

Applications include industrial automation, manufacturing electronics, telecommunications, and any domain requiring dependable PCB connector solutions. Its rugged design and various plating options help optimize both cost and performance for bespoke designs.

The connector supports a current rating of 4.7 A for robust electrical performance. Housing is made of durable glass filled polyester for enhanced mechanical stability. The contacts consist of phosphor bronze with gold plating to ensure corrosion resistance and excellent conductivity.

Operating temperature ranges between -55°C and 125°C for versatile application environments. It supports board-to-board and wire-to-board connection systems with a vertical orientation. The pin termination is through-hole solder type, providing reliable mechanical and electrical connections.

The contact gender is male with a .025” (0.635 mm) square post contact system. This extended life product withstands up to 2500 mating cycles and includes features optimizing cost and performance with plating and ruggedizing options.
