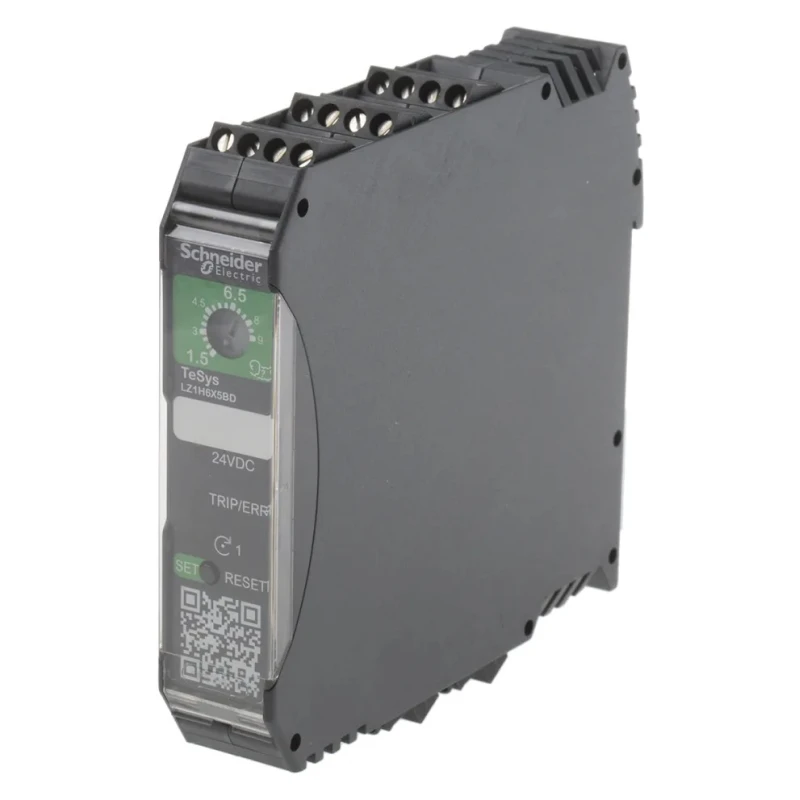

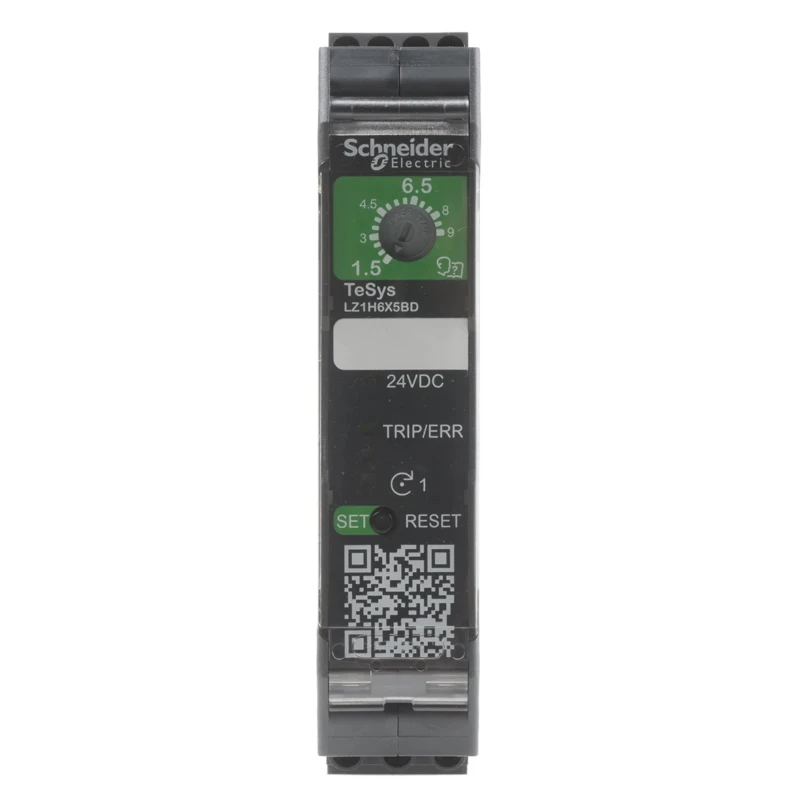

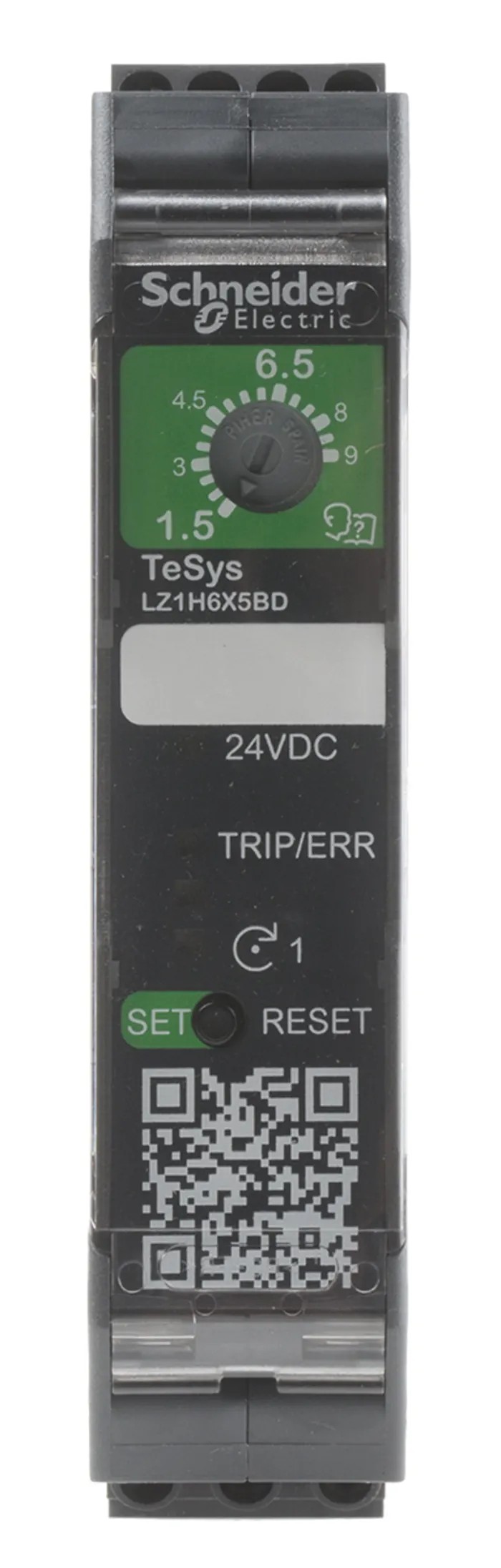

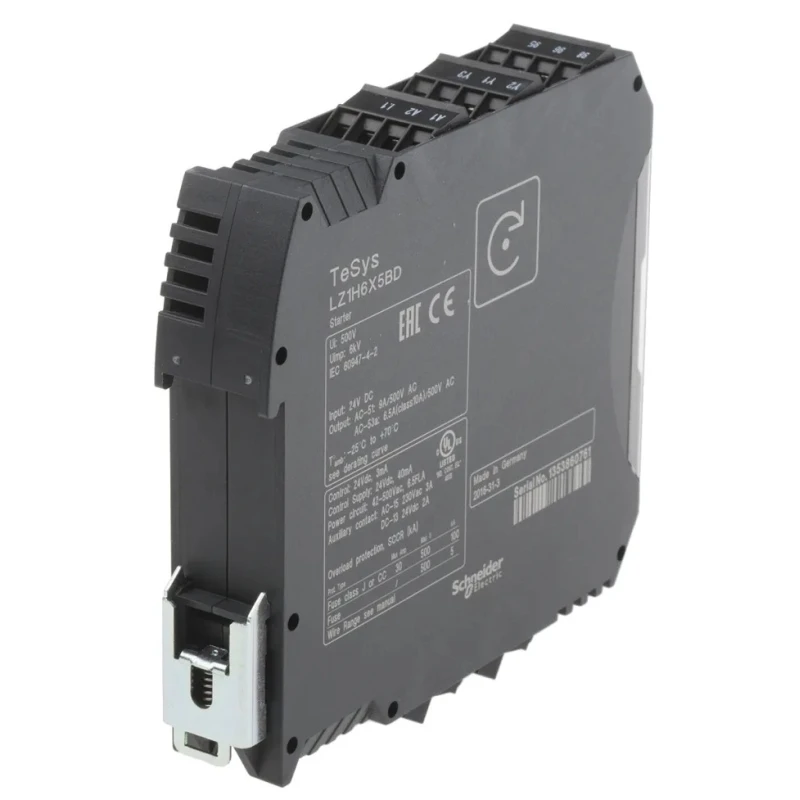

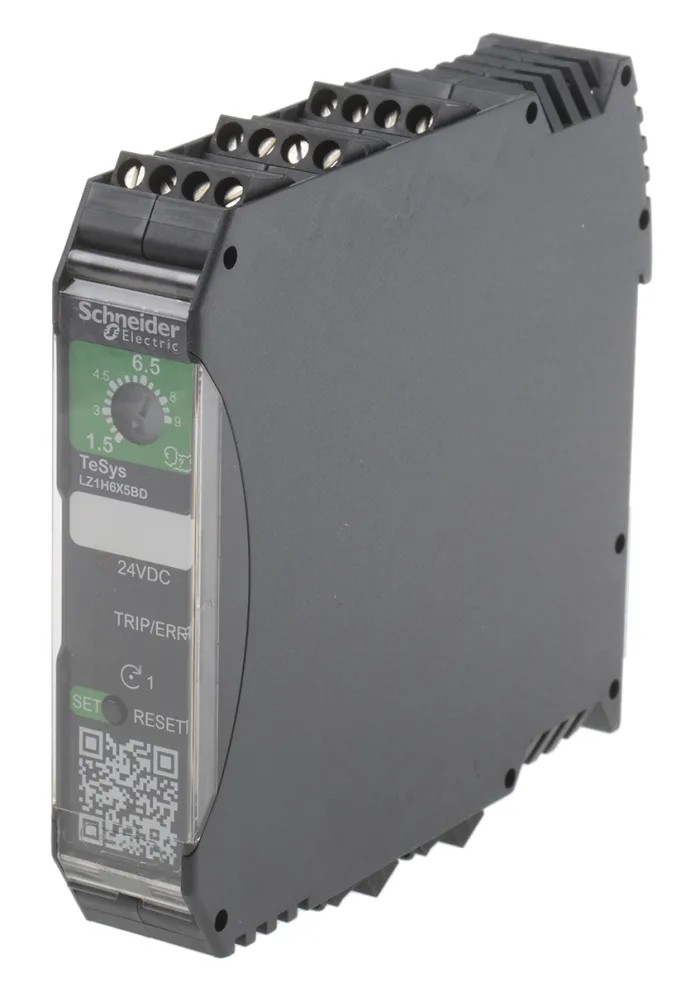

Schneider Electric TeSys H Advanced Motor Starter Direct on Line 30V 3 kW 3 Phase IP20 LZ1H6X5BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | LZ1H6X5BD |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Overall Length | 99mm |
| Current Rating | 6.5A |
| Series | TeSys H |
| Overall Width | 22.5mm |
| Power Rating | 3kW |
| Sub Type | Direct on Line |
| Number of Phases | 3 |
| Maximum Voltage | 30V |
| Number of Poles | 3 |
| Overall Depth | 114.5mm |
Key Features
- Suitable for three phase motors with a current rating of 6.5 A.
- Features a DIN rail mount type for simple and secure installation.
- Constructed with an IP20 rated enclosure protecting against objects larger than 12mm.
- Complies with international standards including ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1.
- Compact dimensions of 99 mm height, 22.5 mm width, and 114.5 mm depth save panel space.
- Designed for environments that may have volatile gases or explosive atmospheres.
- Offers screw clamp terminals providing firm wiring and minimal maintenance.
Product Description
Schneider Electric LZ1H6X5BD advanced motor starter is a direct on line (DOL) device designed for safe and efficient starting of single-speed, one-directional three phase motors at 3 kW power and 30 V operating voltage. It is built to offer protection against short circuits while supplying full voltage directly to the motor, ensuring robust and reliable start-up performance.
This motor starter is equipped with a DIN rail mount making installation quick and tool-free. The compact build, measuring 99 mm in height, 22.5 mm in width, and 114.5 mm in depth, helps save valuable space on crowded control panels. Its IP20-rated enclosure safeguards internal components from human contact and ingress of objects larger than 12 mm, suitable for industrial and commercial environments.
The unit supports manual, automatic, or electrical reset, enhancing operational versatility. It also features screw clamp terminals that hold wiring firmly while requiring minimal maintenance, improving wiring safety and reliability. Its electrical durability ensures a long service life with up to 30 million mechanical cycles.
Designed for use in harsh conditions, the starter is suitable for explosive atmospheres and complies with global standards such as ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1, ensuring compliance with safety and quality norms.
Compatible with rigid or flexible wiring with capacity from 0.2 mm² to 2.5 mm² wire diameter. Ideal for assembly lines, conveyor systems, medical and pharmaceutical equipment, and food and beverage industry machinery. Simple installation and maintenance reduce downtime in demanding industrial settings.
This motor starter is an excellent choice for industrial, manufacturing, and commercial HVAC applications requiring dependable motor control and protection with space-saving design. Explore more industrial Motor Starters and automation solutions on EnvMart for your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum power rating for this motor starter is 3 kW.
This model has a current rating of 6.5 A.
It features a DIN rail mount type for simple and secure installation.
The device has an IP20 rating, protecting against objects larger than 12 mm.
The operating voltage for this motor starter is 30 V.
The motor starter has compact dimensions of 99 mm in height, 22.5 mm in width, and 114.5 mm in depth.
It is compatible with rigid or flexible wiring with a capacity from 0.2 mm² to 2.5 mm² wire diameter.
It complies with international standards including ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1.
This model supports three phases.
It supports manual, automatic, or electrical reset options.
It offers electrical durability with up to 30 million mechanical cycles.
It is designed for use in harsh conditions, including environments with volatile gases or explosive atmospheres.
