TRACOPOWER TDR 2-2423SM 2W Surface Mount Dual Output Regulated Isolated DC-DC Converter 15V DC 67mA 36V/18V Input TDR 2SM

Free Delivery in India | Lowest Global Shipping Charges

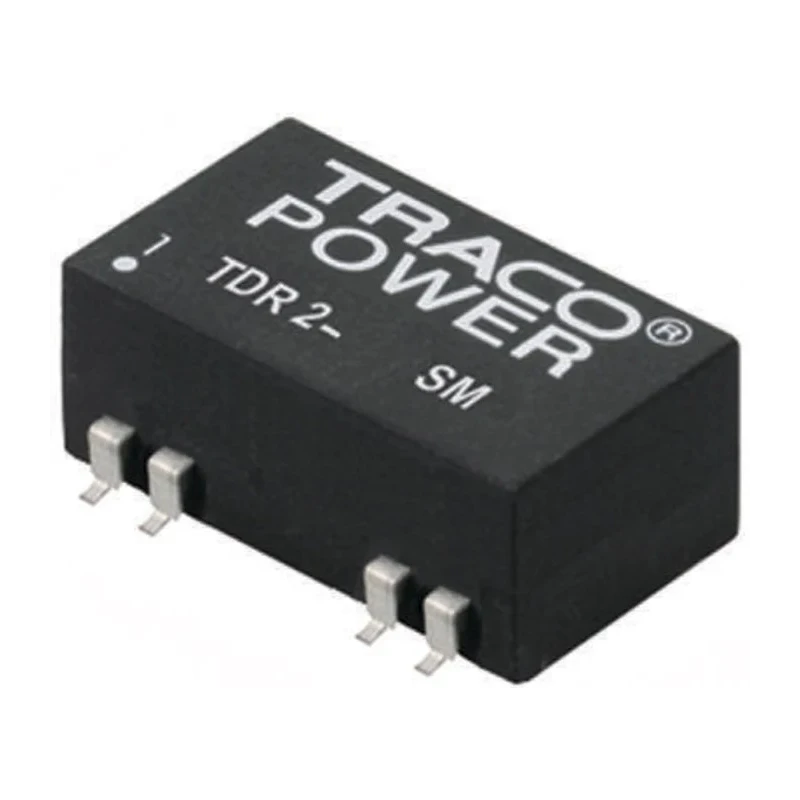

TRACOPOWER TDR 2-2423SM 2W Surface Mount Dual Output Regulated Isolated DC-DC Converter 15V DC 67mA 36V/18V Input TDR 2SM

Name: TRACOPOWER TDR 2-2423SM 2W Surface Mount Dual Output Regulated Isolated DC-DC Converter 15V DC 67mA 36V/18V Input TDR 2SM
Brand: TRACOPOWER
SKU: 216940
Price: 40.12 USD
Availability: InStock



Category DC-DC Converter Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters TRACOPOWER TDR 2SM DC/DC Converter, 15V dc/ 67 mA
Brand	TRACOPOWER
Efficiency	85%
Length	18.9mm
Model	TDR 2-2423SM
Depth	8.45mm
Mount Type	Surface
Series	TDR 2SM
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
MTBF	7100000h
Number of outputs	2
Maximum Output Power	2W
Maximum Input Voltage	36V dc
Standards/Approvals	RoHS
Minimum Input Voltage	18V
Number of Pins	14
Output Voltage 1	15V dc
Output Current 1	67mA
Isolation Voltage	1.5kV dc
Input Ratio	2:1
Input Ratio 2	1
Output Voltage 2	-15V dc
Wide 2	1 input voltage range
TDR 2-12xx	see stock number 745-1171
TDR 2-24xx	see stock number 745-1219
TDR 2-05xx	see stock number 745-1203

Key Features

Compact SMD design ensures easy PCB mounting and high reliability.
Isolated, regulated outputs with dual 15V DC outputs delivering 67mA current.
High efficiency operation reaching up to 85% with an MTBF of 7,100,000 hours.
Supports operating temperature range from -40°C to 85°C without performance derating.
Electrical isolation of 1.5kV DC for robust industrial and electronic use cases.
Surface mount package with 14 pins, 18.9mm length, and 8.45mm depth dimensions.
Designed for applications requiring remote On/Off control and short circuit protection.
RoHS compliant and qualified for lead free reflow solder processes according to IPC J-STD-020D.

Product Description

TRACOPOWER TDR 2-2423SM is a high-reliability 2W DC-DC converter designed for dual output regulation and isolation in industrial and electronic equipment. This compact surface mount package device supports a wide 2:1 input voltage ratio, ranging from 18V to 36V DC, making it suitable for various power supply environments.

The converter delivers dual regulated 15V DC outputs capable of supplying continuous current of 67mA while maintaining an efficiency of up to 85%. Its robust design includes 1.5kV DC isolation between input and output, ensuring protection against electrical interference and safety compliance.

Key operational features include a wide ambient operating temperature range from -40°C to 85°C without output power derating, allowing its use in diverse environments including industrial automation, manufacturing instrumentation, telecommunications, and power management systems. The unit also offers short circuit protection and remote On/Off capability for enhanced control.

The product utilizes a 14-pin surface mount package with compact size dimensions of 18.9mm length and 8.45mm depth. It complies with RoHS regulations and conforms to IPC J-STD-020D for lead free solder reflow processes, making it environmentally compliant and suitable for contemporary assembly processes.

Compact SMD package with wide 2:1 input range and dual regulated outputs. Electrical isolation at 1.5kV DC enhances safety and noise immunity. High efficiency and long MTBF of 7,100,000 hours ensure dependable operation.

Wide operating temperature range from -40°C to +85°C supports harsh environments. Suitable for industrial, laboratory, telecommunications, and power applications. Surface mount design facilitates integration into compact electronic assemblies.

RoHS compliant and lead-free solder process qualified.

TRACOPOWER TDR 2-2423SM DC-DC Converter is ideal for industrial power solutions requiring reliable, efficient, isolated power conversion in a compact form. Explore EnvMart's wide selection of DC/DC converters and power supplies for comprehensive solutions.
