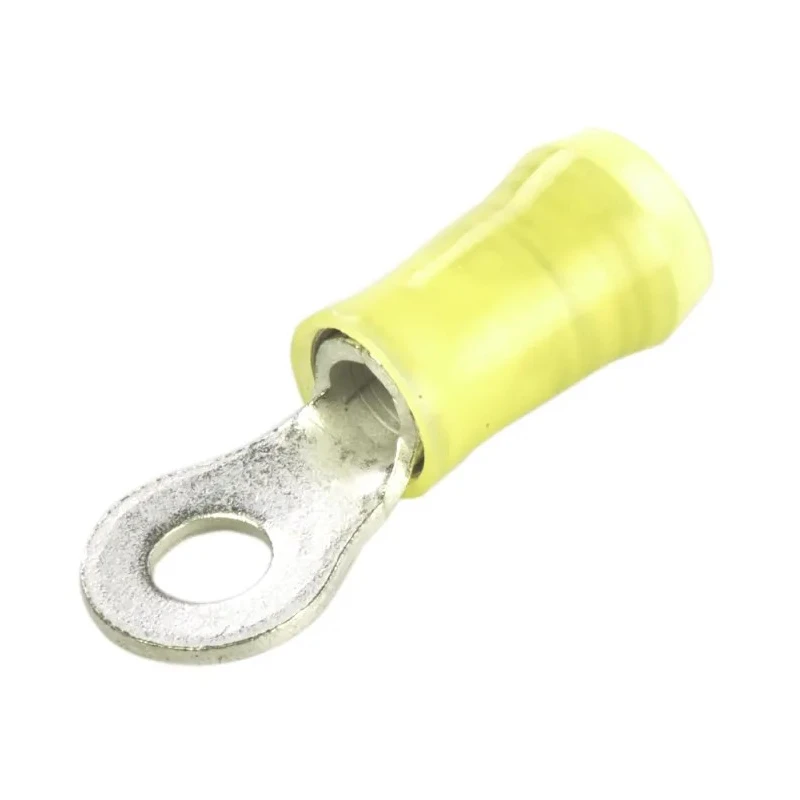

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 12 AWG to 10 AWG Nylon Yellow 35108
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 1.02mm |
| Model | 35108 |
| Insulation | Insulated |
| Overall Length | 27.51mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 9.52mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Features nylon insulated yellow outer sleeve for wire size identification.
- Designed with copper sleeve to support wire insulation and prevent fraying.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Funnelled wire entry simplifies fast wire insertion during production.
- Suitable for use in industrial, aerospace, transportation, and electrical panel applications.
Product Description
TE Connectivity 35108 PIDG Insulated Ring Terminal is engineered for dependable electrical connections with a M4 stud size suitable for wire sizes from 12 AWG to 10 AWG. The terminal features a high conductivity copper body with a tin-plated contact surface to resist corrosion and maintain conductivity reliability. The wire barrel includes serrations that secure maximum contact and tensile strength once crimped, enhancing connection durability under mechanical stress.
This ring terminal includes a nylon insulated outer sleeve colored yellow for easy wire gauge identification, aiding rapid assembly and maintenance operations. The copper sleeve inside the barrel reinforces wire insulation, protecting against fraying and mechanical damage. The funnelled wire entry keeps strands in place to speed up high-volume production processes.
Designed to meet or exceed demanding MIL-T-7928 requirements, this PIDG ring terminal is ideal for a broad range of applications including instrumentation, control systems, lighting, power supplies, electrical panel boxes, transportation equipment, lifting gear, motors, aerospace, and various appliances.
The construction ensures uniform and reliable crimps when used with the appropriate tooling, making it a versatile choice for industrial, manufacturing, and commercial electrical wiring tasks.
High conductivity copper body for superior electrical flow. Copper sleeve enhances insulation support and durability. Serrated barrel design increases crimp strength and connection reliability. Yellow nylon insulation sleeve facilitates wire size identification.
Funnelled entry allows quick and reliable wire insertion. Compliant with MIL specifications, suited for critical industrial use. The product is manufactured in the United States, reflecting industry-leading quality standards.
Explore similar TE Connectivity power connectors and Ring Terminals within the Electronics & Electricals category at EnvMart for comprehensive wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal accommodates wire sizes from 12 AWG to 10 AWG, which corresponds to a minimum wire size of 2.6 mm² and a maximum of 6.6 mm².
The stud size for this terminal is M4, making it suitable for various applications requiring this connection size.
The terminal features a high conductivity copper body with a tin-plated contact surface, and it is insulated with nylon.
The maximum operating temperature for this terminal is 105°C, allowing it to function effectively in various environments.
The serrated wire barrel design ensures maximum contact and tensile strength after crimping, enhancing the reliability of the electrical connection.
The funnelled wire entry simplifies fast wire insertion, which is particularly beneficial during high-volume production processes.
The insulation of this terminal is yellow, which aids in wire size identification during assembly and maintenance operations.
Yes, this PIDG ring terminal is designed to meet or exceed the demanding MIL-T-7928 requirements, making it suitable for critical applications.
The overall length of this ring terminal is 27.51 mm, providing a compact design for various installation needs.
The outer ring diameter is 9.52 mm, and the inner ring diameter is 4.34 mm, which are important for ensuring a proper fit on the stud.
This terminal is suitable for a wide range of applications including instrumentation, control systems, lighting, power supplies, and various industrial uses.
This terminal is manufactured in the United States, reflecting industry-leading quality standards.
