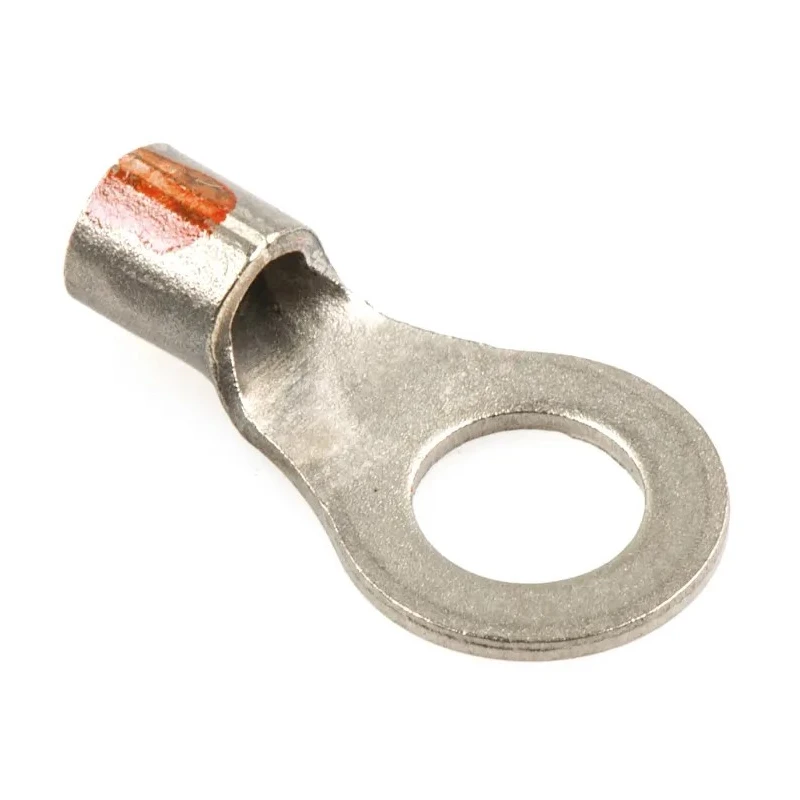

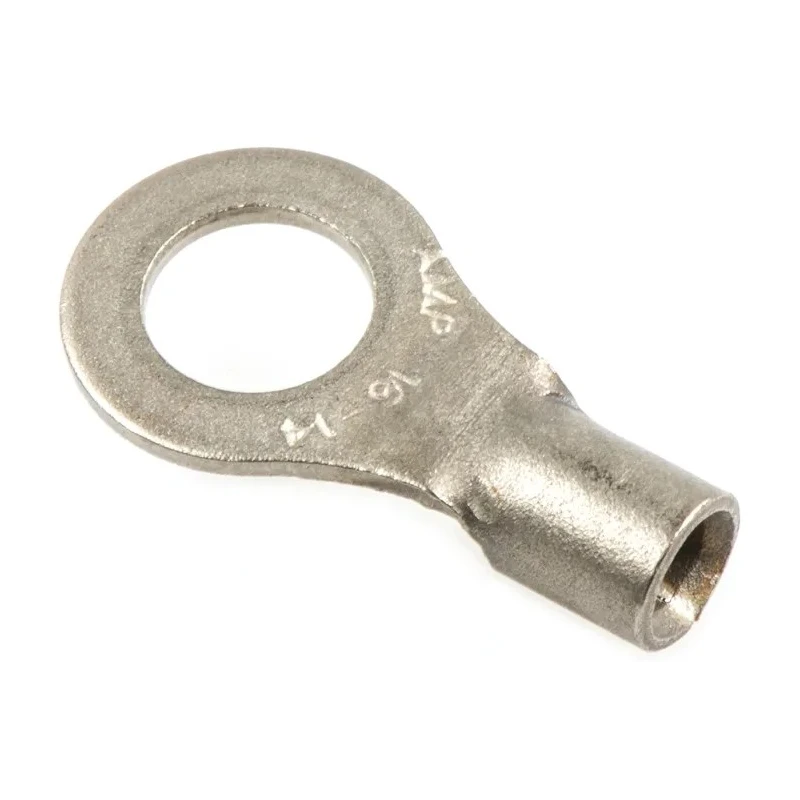

TE Connectivity STRATO-THERM Uninsulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire 322335
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 322335 |
| Insulation | Uninsulated |
| Overall Length | 16.15mm |
| Contact Material | Nickel |
| Series | STRATO-THERM |
| Maximum Operating Temperature | 649°C |
| Standards/Approvals | UL E13288, RoHS, CSA LR7189 |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed from solid nickel for high temperature resistance.
- Designed for termination of solid and stranded conductors.
- Maximum operating temperature of 649°C enables use in extreme environments.
- Features an 8.71 mm outer ring diameter and 5 mm inner ring diameter.
- Thickness of the terminal is 0.79 mm ensuring robust mechanical strength.
- Compatible with wire sizes from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
- Nickel plating enhances corrosion resistance and conductivity.
- Complies with UL E13288, RoHS, and CSA LR7189 standards.
Product Description
TE Connectivity 322335 STRATO-THERM uninsulated ring terminal is engineered for demanding electrical connections where standard insulated terminals cannot withstand high temperatures. Constructed from solid nickel, this ring terminal ensures high thermal resistance with a maximum operating temperature of up to 649°C (1200°F).
The terminal is designed for terminating both solid and stranded conductors, forcing the wire into serrations inside the barrel to maximize electrical contact upon crimping. With a stud size of M5 and wire size compatibility ranging from 16 AWG to 14 AWG (1 mm² to 2.6 mm²), this terminal provides flexible use across various wire gauges.
The ring terminal boasts an outer ring diameter of 8.71 mm and an inner diameter of 5 mm, thickness of 0.79 mm, and an overall length of 16.15 mm, combining compact size with mechanical durability. Nickel plating on the contact ensures enhanced corrosion resistance and reliable conductivity in harsh environments.
Compliance with UL E13288, RoHS, and CSA LR7189 guarantees safety and quality standards. This product is ideally suited for industrial electronics, automotive wiring, HVAC systems, and manufacturing equipment requiring durable, high-temperature capable connectors.
For optimal installation, compatible hand crimp tools are recommended (e.g., RS stock number 162-3159). This STRATO-THERM Ring Terminal is manufactured in the United States, assuring premium build quality and consistency.
Constructed from solid nickel for high temperature resistance. Compatible with wire sizes 16 AWG to 14 AWG. Maximum operating temperature up to 649°C. M5 stud size with 8.71 mm outer ring diameter. Nickel plating enhances corrosion protection.
Complies with UL, RoHS, and CSA standards. Compact 16.15 mm overall length ensures easy integration. Explore EnvMart’s extensive range of high-quality wire terminals and electrical connectors for industrial, automotive, and electrical engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this ring terminal is 649°C (1200°F), making it suitable for high-temperature applications.
This terminal is compatible with wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
The outer ring diameter is 8.71 mm, while the inner ring diameter is 5 mm.
The thickness of the terminal is 0.79 mm, ensuring robust mechanical strength.
It is constructed from solid nickel, which provides high thermal resistance and corrosion protection.
This product complies with UL E13288, RoHS, and CSA LR7189 standards, ensuring safety and quality.
The overall length of this ring terminal is 16.15 mm, allowing for easy integration in various applications.
The stud size for this terminal is M5, which is suitable for various mounting applications.
This terminal is uninsulated, designed for high-temperature electrical connections.
It is ideally suited for industrial electronics, automotive wiring, HVAC systems, and manufacturing equipment requiring durable connectors.
For optimal installation, compatible hand crimp tools are recommended, such as RS stock number 162-3159.
This ring terminal is manufactured in the United States, ensuring build quality and consistency.
