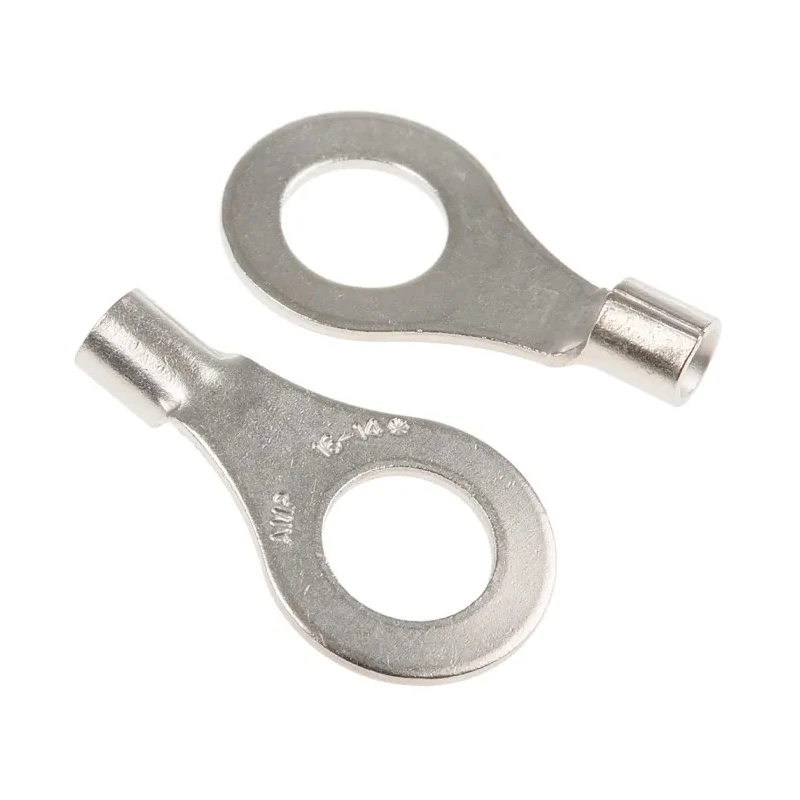

TE Connectivity STRATO-THERM Uninsulated Ring Terminal M6 Stud Size 16 AWG 14 AWG 21.72mm Length 322733
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 322733 |
| Insulation | Uninsulated |
| Overall Length | 21.72mm |
| Contact Material | Copper |
| Series | STRATO-THERM |
| Maximum Operating Temperature | 343°C |
| Standards/Approvals | CSA LR7189, RoHS, UL E13288 |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M6 |
Key Features
- Constructed from nickel-plated electrolytic copper for durability.
- Designed for operating temperatures up to 343°C ensuring heat resistance.
- Overall length of 21.72mm for precise fitting in electrical connections.
- Uninsulated design suits applications where insulation is not required.
- Inner ring diameter of 6.73mm and outer diameter of 11.91mm for M6 stud compatibility.
- Nickel plating improves corrosion resistance and electrical conductivity.
- Suitable for solid and stranded conductors with assured secure crimping performance.
- Compliance with CSA LR7189, RoHS, and UL E13288 standards ensures safety and quality.
Product Description
TE Connectivity 322733 STRATO-THERM uninsulated ring terminal is engineered for demanding electrical applications requiring reliable and heat-resistant wire terminations. Its construction from nickel-plated electrolytic copper provides excellent conductivity and corrosion resistance, making it ideal for industrial, commercial, and electrical environments.
This Ring Terminal fits an M6 stud size and supports wire sizes ranging from 16 AWG to 14 AWG, making it versatile for various wiring configurations. The terminal's overall length is 21.72mm, with an inner ring diameter of 6.73mm and outer diameter of 11.91mm, ensuring precise and secure fitment.
The STRATO-THERM series is designed for high-temperature applications, withstanding maximum operating temperatures up to 343°C, making it suitable for use in manufacturing, automotive, HVAC, and power distribution systems where elevated temperatures are a concern.
The uninsulated design is suited for environments where additional insulation is not needed or where space constraints exist. When crimped, the wire is firmly secured in the serrations within the barrel, optimizing electrical contact area and mechanical stability.
Constructed from nickel-plated electrolytic copper for reliable performance. Compatible with 16 AWG to 14 AWG wire sizes for flexible wiring solutions. M6 stud size fits standard screw terminals ensuring broad compatibility.
Heat resistant up to 343°C for use in high-temperature electrical systems. Complies with CSA LR7189, RoHS, and UL E13288 safety standards. Uninsulated type for applications where insulation is unnecessary. Designed for optimum crimping and electrical contact efficiency.
Ideal for industrial, laboratory, manufacturing, and HVAC wiring tasks.
For proper installation, use compatible hand crimp tools specified by RS Stock No. 162-3159. This terminal provides a dependable solution for secure and durable wire connections in challenging electrical environments.
Explore the wide range of TE Connectivity products in the power connectors category available on EnvMart for your electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can withstand maximum operating temperatures up to 343°C, making it suitable for high-temperature electrical applications.
This terminal supports wire sizes ranging from 16 AWG to 14 AWG, accommodating various wiring configurations.
The overall length of this terminal is 21.72mm, ensuring precise fitting in electrical connections.
The inner ring diameter is 6.73mm and the outer diameter is 11.91mm, designed for M6 stud compatibility.
It is constructed from nickel-plated electrolytic copper, which enhances conductivity and corrosion resistance.
It complies with CSA LR7189, RoHS, and UL E13288 safety standards, ensuring quality and safety in its applications.
No, this model is uninsulated, making it suitable for applications where insulation is not required.
The thickness of this terminal is 0.79mm, contributing to its structural integrity.
It is designed for optimum crimping and electrical contact efficiency, ensuring a secure connection when crimped.
It is ideal for industrial, laboratory, manufacturing, and HVAC wiring tasks due to its heat resistance and reliable performance.
For proper installation, it is recommended to use compatible hand crimp tools specified by RS Stock No. 162-3159.
This terminal is manufactured in India, ensuring compliance with international standards.
