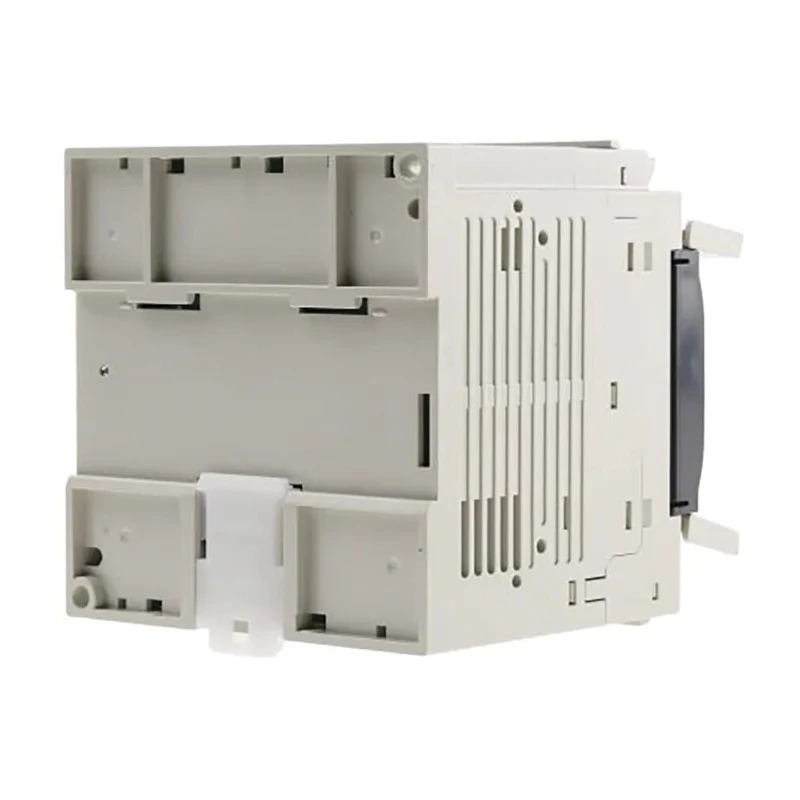

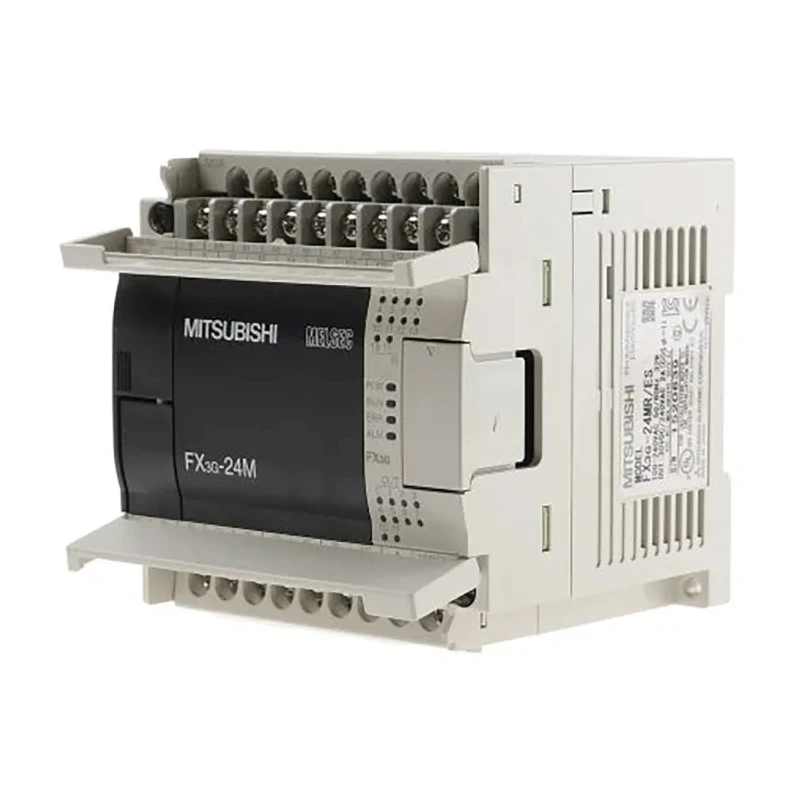

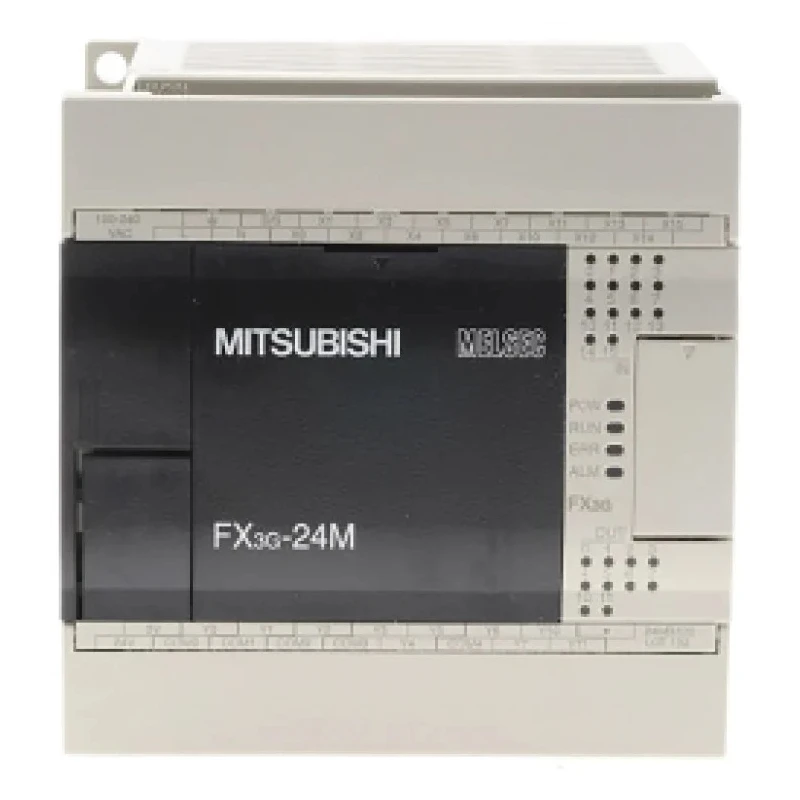

Mitsubishi Electric FX3G Series Logic Module 14-Input, Sink Input, 10 Transistor Outputs

Mitsubishi Electric FX3G-24MT/ESS is a sub-compact logic module in the FX3G series designed to replace FX1N PLCs with minimal redesign. It features 14 sink input channels and 10 transistor outputs suitable for controlling a variety of industrial automation processes. The unit supports a supply voltage range of 100 to 240V AC and includes communication ports RS232C, RS422, and RS485 for integration with other industrial devices.

This module supports fast program execution with a capacity of 32000 steps, enabling sophisticated automation programs. It includes a built-in battery backup to preserve the program and data during power interruptions. The module is mountable on DIN rails, with compact physical dimensions (90mm x 90mm x 86mm), making it ideal for space-constrained panels.

Operation is reliable within a temperature range of 0°C to 50°C, suitable for typical industrial environments. The output current rating of 800mA allows for driving various output devices. It comes with a display that offers clear status indications and diagnostics, enhancing system monitoring.

The programming language used is Ladder Logic, standard in PLC programming. This module is compliant with CE, cUL, and UL standards, ensuring safety and performance in critical industrial automation applications.

Typical applications include manufacturing process control, machine automation, HVAC systems, and other industrial control tasks requiring a robust and flexible logic module. Mitsubishi Electric's FX3G series provides backward compatibility with FX2N and FX3U modules, allowing easy upgrades in existing setups.

Supplies 100 to 240V AC operating voltage ensuring wide compatibility. Supports RS232C, RS422, and RS485 communication ports for flexible connectivity. Built-in battery backup maintains memory and operation during power loss.

Compact dimensions of 90mm length, 90mm width, and 86mm depth suited for DIN rail mounting. Operates efficiently within 0°C to 50°C temperature range for industrial environments. Program capacity of 32000 steps enables complex control tasks.

Output current capacity rated at 800mA for driving multiple loads. Equipped with display for easy monitoring and diagnostics. Programmable using Ladder Logic language for standard automation programming. Certified with CE, cUL, and UL standards for safety and reliability.
