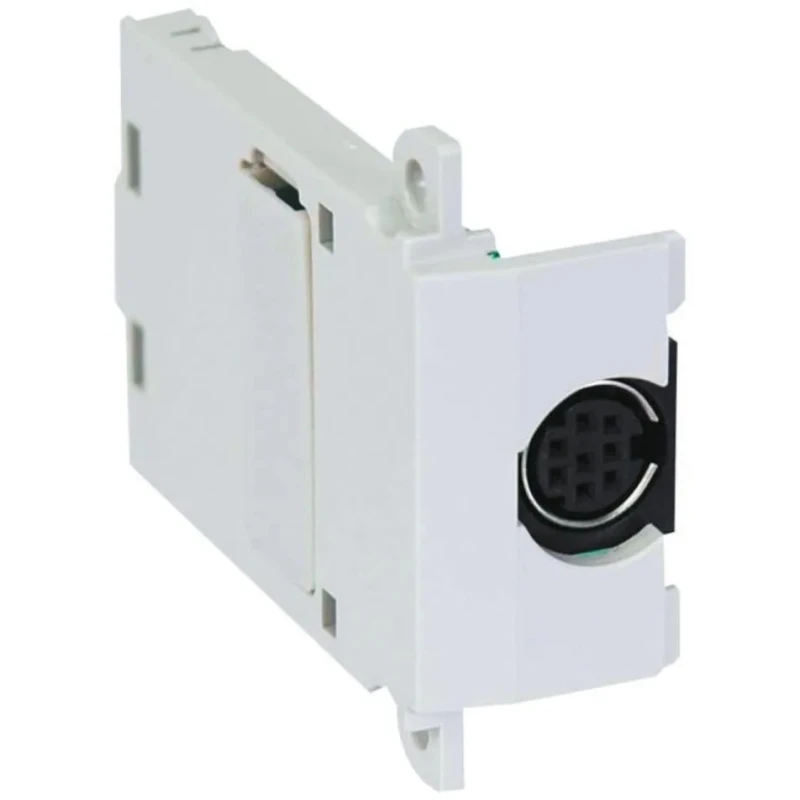

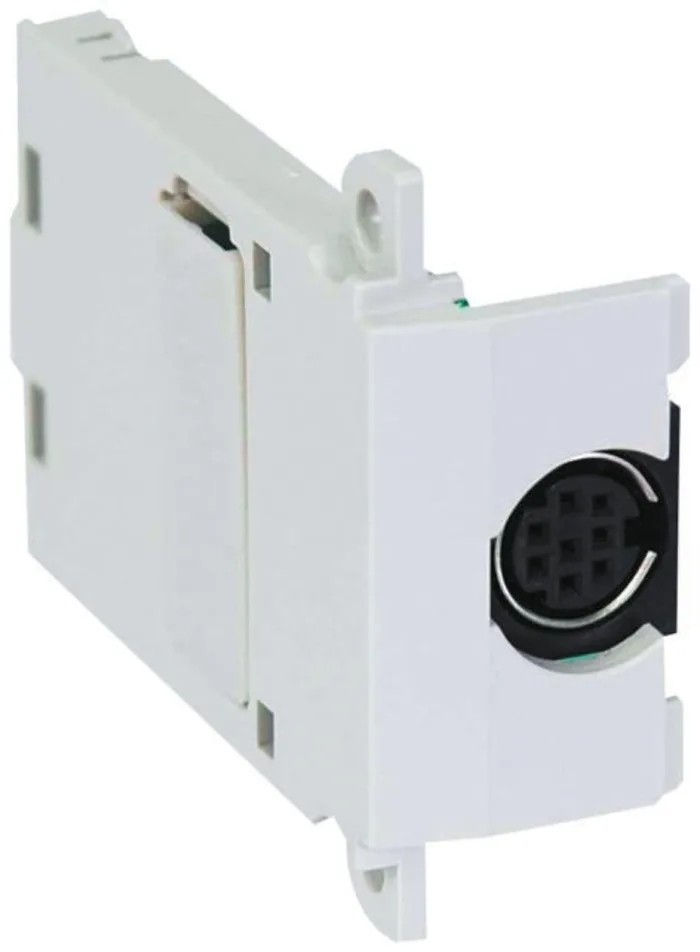

Mitsubishi Electric Base for use with FX3 Series FX3U-422-BD, CE Certified, 53.5mm Depth, 19.6mm Width FX3U-422-BD

Mitsubishi Electric FX3U-422-BD Base for use with FX3 Series is a CE-approved communication module designed to expand connectivity options on FX3U PLCs. It clips onto the front left corner of the base unit and provides an RS422 interface that allows a second programming port. This facilitates the connection of both an operator panel (HMI) and a programming PC simultaneously, improving operational efficiency.

The FX3U-422-BD is part of a range of six communication modules compatible with FX3U PLCs. These include ADP modules that attach to the left-hand side of the base unit and BD modules that clip into its front left corner. The communication modules support various interfaces such as RS232, RS422, RS485, and USB for diverse communication needs including PC, printer, barcode reader connectivity, networking of PLCs, and seamless connection to Mitsubishi inverter drives.

Designed for industrial automation systems, this base module is critical for expanding the capabilities of Mitsubishi FX3U PLCs, which are backward compatible with existing FX2N expansion modules. Its compact dimensions of 53.5mm depth and 19.6mm width make it ideal for space-conscious setups. The module draws power directly from the PLC base unit ensuring integrated functionality.

Compatible with FX3 Series PLC expansion modules. CE certified for industrial safety and quality assurance. RS422 interface for dual programming port support. Enables simultaneous connection of HMI and programming PC. Compact footprint at 53.5mm depth and 19.6mm width.

Manufactured in Japan ensuring high-quality standards.

This Mitsubishi Electric base module is suitable for industrial, manufacturing, automation, and control applications requiring reliable communication expansion. It supports seamless integration with Mitsubishi's FX3U PLCs and drives, optimizing automation system performance.
