Mitsubishi Electric Base for use with FX3 Series FX3U-485-BD

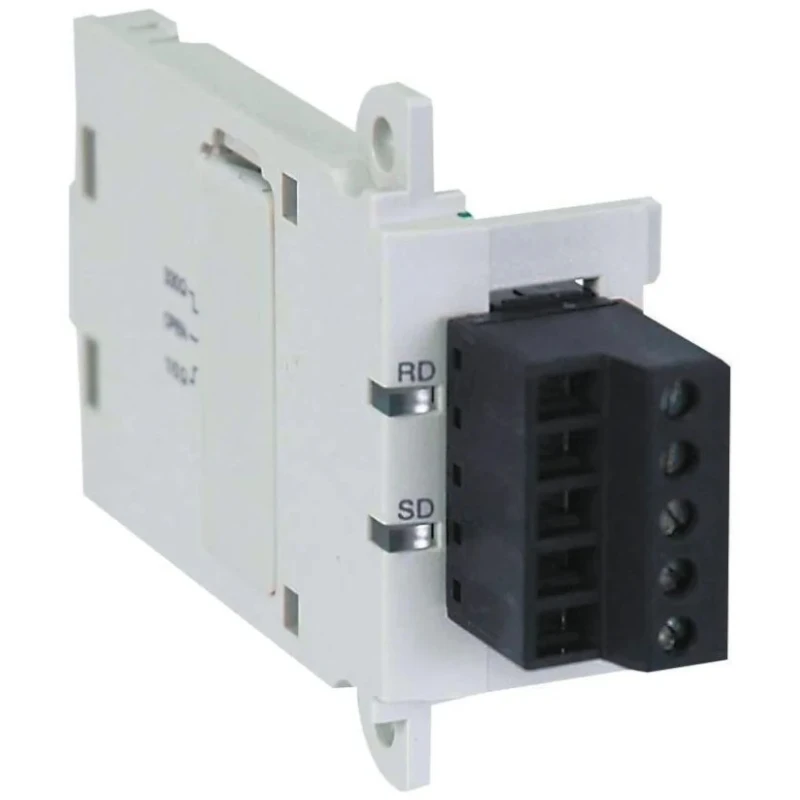

Mitsubishi Electric FX3U-485-BD Base is a precision communication module base designed specifically for use with the FX3 Series PLC expansion modules. It clips into the front left corner of the FX3U base unit, providing a robust mounting solution for communication modules that enhance the connectivity and versatility of the PLC system.

This base supports multiple types of communication interfaces including RS232, RS422, RS485, and USB, enabling diverse application needs. The RS232 interface allows easy communication with PCs, printers, or barcode readers, while the RS422 interface provides a second programming port. The RS485 interface allows networking of FX PLCs and a straightforward connection to Mitsubishi inverter drives through built-in protocol commands. The USB BD module facilitates PC connectivity for programming purposes.

The FX3U-485-BD base, together with compatible communication adapters such as FX3U-232-BD, FX3U-422-BD, FX3U-USB-BD, and FX3U-CNV-BD, offers flexible expansion options. Up to two ADP communication modules, or one ADP and one BD communication module, may be fitted simultaneously to a base unit with power supplied directly from the PLC base unit.

This product maintains compatibility with FX3U CPUs and offers a reliable replacement for FX2N PLCs, integrating seamlessly with existing expansion options. Its compact form factor, with a width of 19.6 mm and a depth of 69 mm, ensures minimal space usage in industrial control panels.

Manufactured in Japan and certified to CE standards, the Mitsubishi Electric FX3U-485-BD Base stands out in the industrial automation market for quality and functionality. It is suitable for industrial, manufacturing, HVAC, and other automation systems requiring reliable and expandable PLC communication interfaces.

The base fits on the front left corner of the FX3U PLC base unit. Supports RS232, RS422, RS485, and USB communication modules for versatile connectivity. Facilitates networking of FX PLCs and connection to Mitsubishi inverter drives via built-in protocol instructions.

Allows simultaneous connection of operator panel (HMI) and programming PC through dual programming ports. Meets CE standards, ensuring compliance with European safety and performance requirements. Compact dimensions: 19.6mm width and 69mm depth for space-efficient installation.

Manufactured in Japan, reflecting high quality and reliability standards. Explore more PLC Expansion Modules and industrial automation systems at EnvMart to enhance your automation infrastructure.
