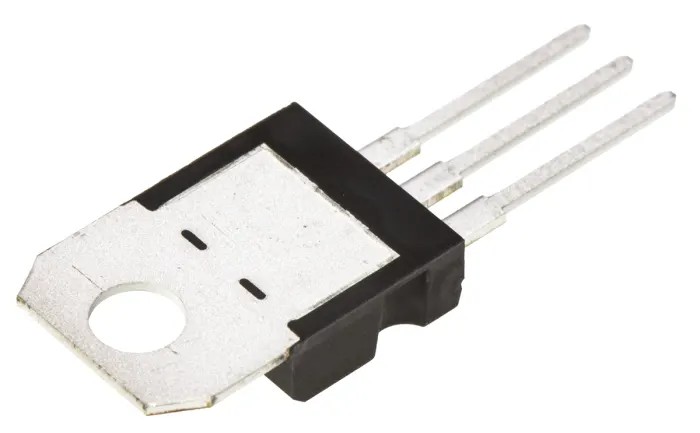

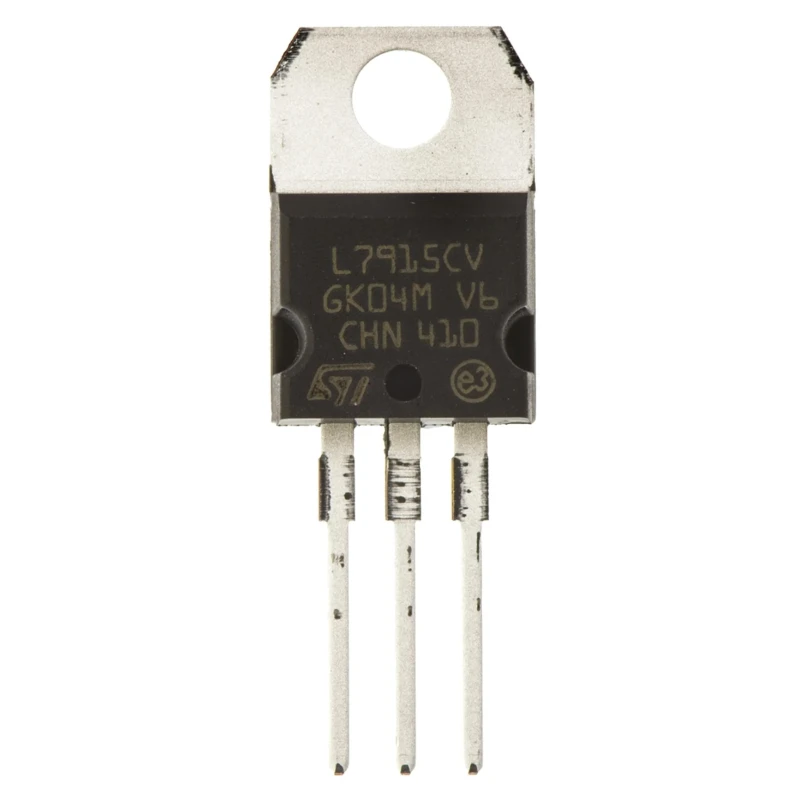

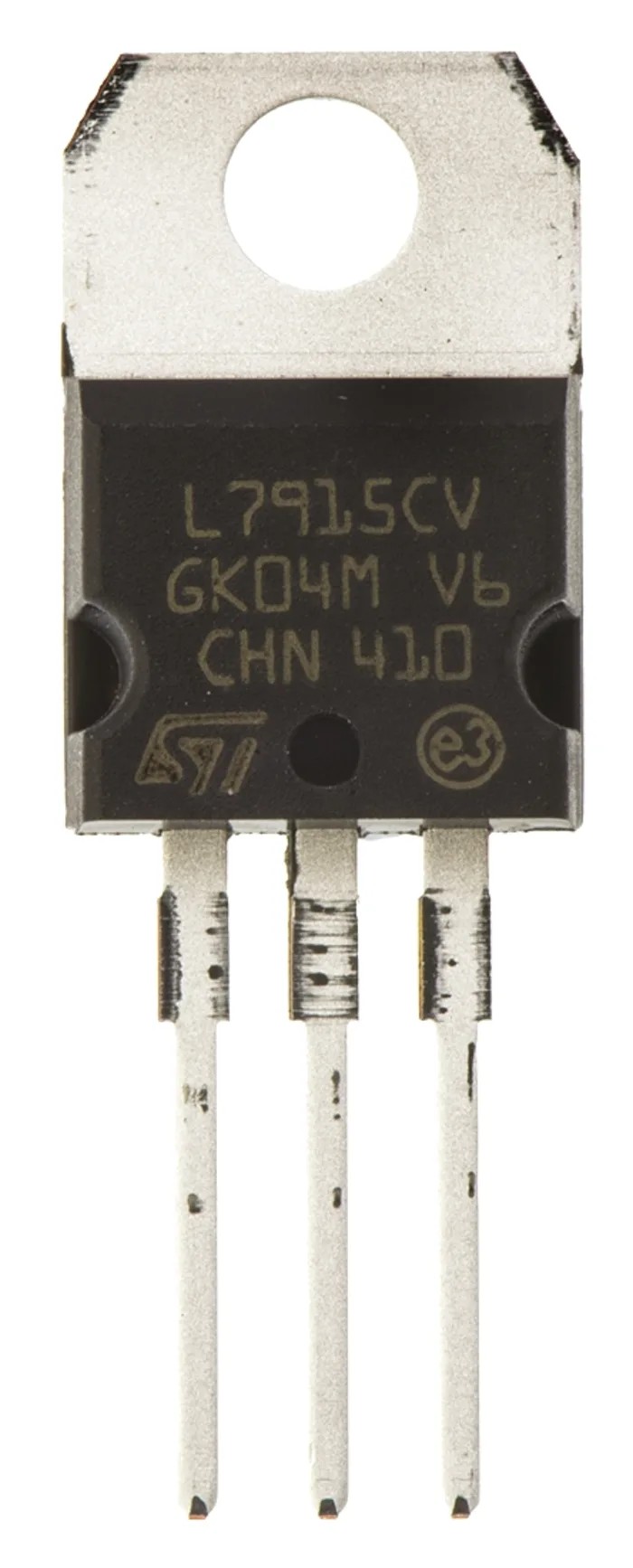

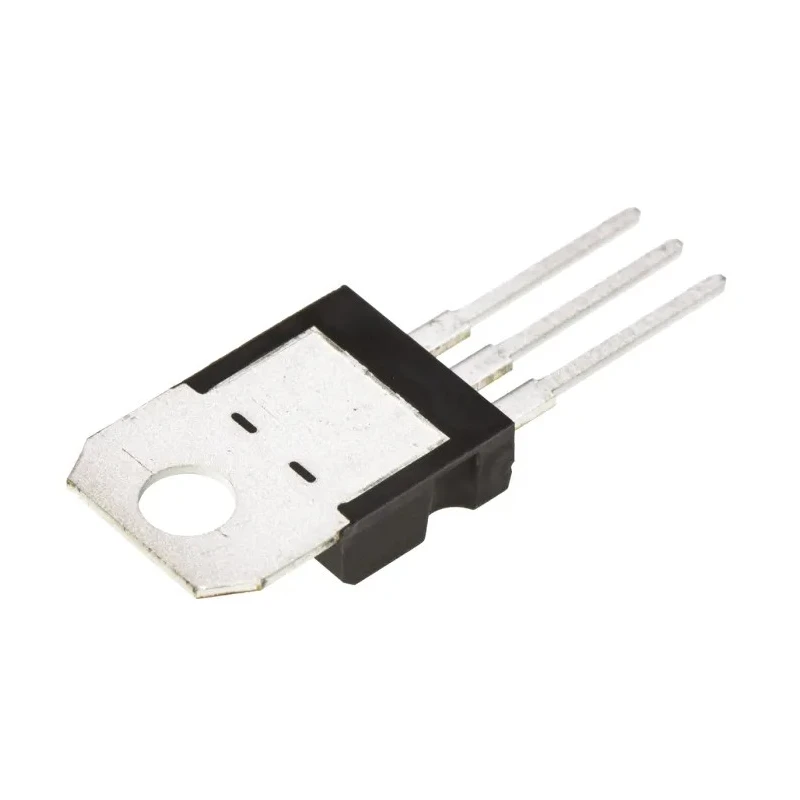

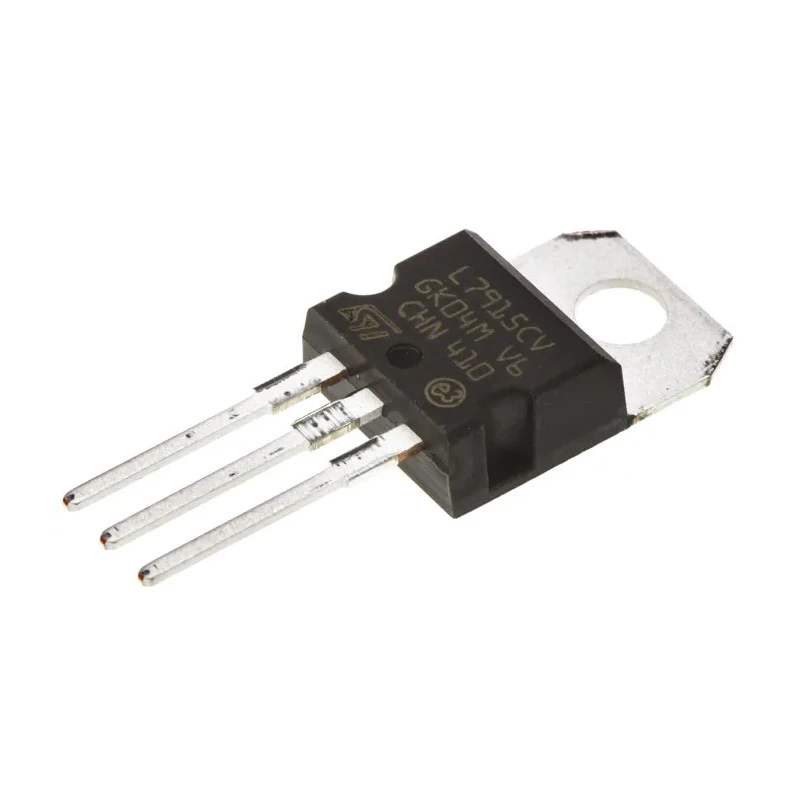

STMicroelectronics 5-Channel Linear Negative Voltage Regulator 1.5 A -15V TO-220 3-Pin L7915CV

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 5-Channel Linear Negative Voltage Regulator 1.5 A -15V TO-220 3-Pin L7915CV

Name: STMicroelectronics 5-Channel Linear Negative Voltage Regulator 1.5 A -15V TO-220 3-Pin L7915CV
Brand: STMicroelectronics
SKU: 123778
Price: 0.85 USD
Availability: InStock



Category Voltage Regulator Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Brand	STMicroelectronics
Height	9.15mm
Length	10.4mm
Model	L7915CV
Width	4.6mm
Mount Type	Through Hole
Output type	Fixed
Series	L79xx
Output Current	1.5A
Maximum Operating Temperature	150°C
Package Type	TO-220
Load Regulation	300 mV
Minimum Operating Temperature	0°C
Polarity	Negative
Regulator Type	Linear
Number of outputs	5
Maximum Input Voltage	-35V
Output Voltage	-15V
Quiescent Current	3mA
Line Regulation	300 mV
Standards/Approvals	RoHS
Pin Count	3

Key Features

Fixed output voltage of -15 volts designed for negative voltage regulation applications.
High reliability linear regulator with short circuit and thermal overload protection.
Package type TO-220 with 3 pins suitable for through-hole mounting.
Line and load regulation values of 300 mV ensure stable voltage output.
Quiescent current of 3 mA minimizes power loss during operation.
Operating temperature range from 0°C to 150°C for industrial applications.
Designed with negative polarity and fixed output type for precise DC voltage supply.
Compliant with RoHS standards ensuring environmental safety.

Product Description

STMicroelectronics L7915CV is a high-performance 5-Channel Linear Negative Voltage Regulator providing a fixed output voltage of -15 volts and delivering an output current of up to 1.5 amps. Packaged in a TO-220 3-Pin form factor, this linear regulator is designed for reliable and stable voltage regulation in various electronic circuits requiring negative voltage supply.

The device features integral short circuit and thermal overload protection, enhancing system safety and operational longevity. Its quiescent current is as low as 3 mA, making it energy efficient during standby or low-load conditions. With line and load regulation rated at 300 mV, the L7915CV ensures consistent voltage output despite variations in input or load.

Its negative polarity and fixed output design simplify integration into circuits requiring a stable negative voltage rail.

The device's dimensions - height 9.15 mm, length 10.4 mm, and width 4.6 mm - allow compact PCB layouts and easy through-hole mounting. It complies with RoHS regulations, ensuring it meets environmental and health safety standards.

This voltage regulator is ideal for power management applications where reliable negative voltage regulation is critical, including industrial systems, instrumentation, control circuits, and embedded electronics.

Fixed output voltage of -15 volts designed for negative voltage regulation applications. High reliability linear regulator with short circuit and thermal overload protection. Package type TO-220 with 3 pins suitable for through-hole mounting.

Line and load regulation values of 300 mV ensure stable voltage output. Quiescent current of 3 mA minimizes power loss during operation. Operating temperature range from 0°C to 150°C for industrial applications. Designed with negative polarity and fixed output type for precise DC voltage supply.

Compact dimensions: height 9.15 mm, length 10.4 mm, width 4.6 mm. Compliant with RoHS standards ensuring environmental safety. Suitable for power management and voltage regulation in electronic systems. Explore further products from STMicroelectronics and similar Voltage Regulators on EnvMart for your electronic design and manufacturing needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The L7915CV provides a fixed output voltage of -15 volts, specifically designed for negative voltage regulation applications.

This model can deliver an output current of up to 1.5 amps, making it suitable for various electronic circuits that require negative voltage supply.

The L7915CV is packaged in a TO-220 form factor with 3 pins, allowing for through-hole mounting on printed circuit boards.

It operates within a temperature range of 0°C to 150°C, making it suitable for industrial applications.

The line and load regulation values are both rated at 300 mV, ensuring stable voltage output despite variations in input or load conditions.

The quiescent current for this voltage regulator is as low as 3 mA, which helps minimize power loss during operation.

The maximum input voltage that this model can handle is -35V.

Yes, it complies with RoHS standards, ensuring it meets environmental and health safety requirements.

The dimensions of the L7915CV are 9.15 mm in height, 10.4 mm in length, and 4.6 mm in width.

It is a linear voltage regulator designed specifically for negative polarity and fixed output applications.

This model features 5 outputs, making it versatile for various power management applications.

It is ideal for power management applications, including industrial systems, instrumentation, control circuits, and embedded electronics that require reliable negative voltage regulation.
