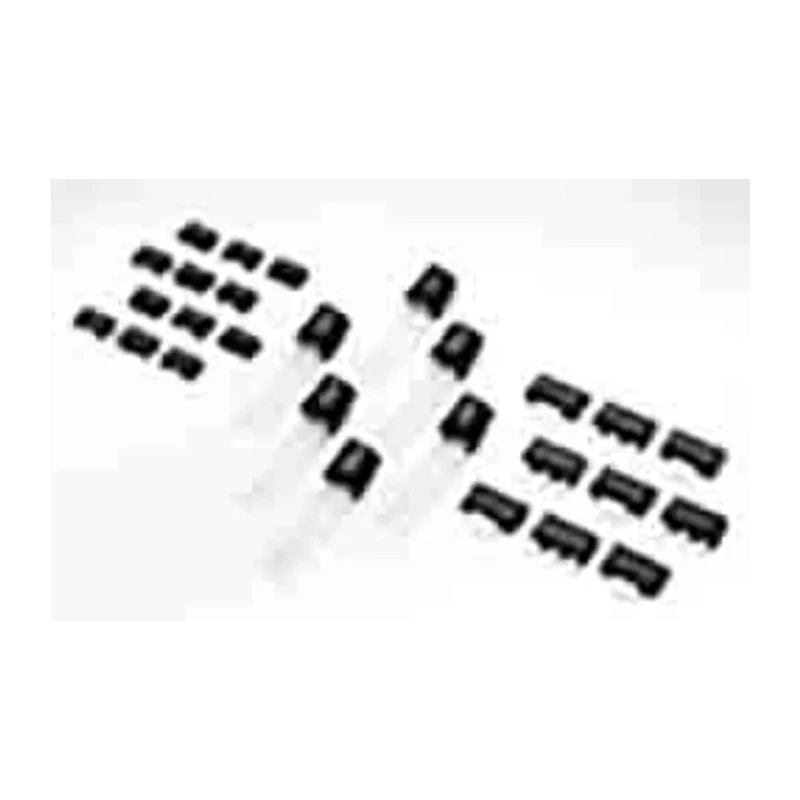

Littelfuse TRIAC Semiconductor 600 V 0.8 A 3 mA Gate Trigger Current 9.5 A Surge Current LX807MBRP

The Littelfuse LX807MBRP is a TRIAC semiconductor designed for reliable switching and control in electronic circuits. It is housed in a surface mount SOT-89 package with a compact 3-pin design ideal for space-constrained PCB layouts. This device supports a repetitive peak reverse voltage of 600 V and an average on-state current of 0.8 A, making it suitable for industrial and power electronics applications.

It features a maximum gate trigger current of 3 mA, allowing sensitive gate control, and a surge current capability of 9.5 A providing durability under transient overloads. The device operates efficiently with a peak on-state voltage of 1.6 V, minimizing conduction losses.

Temperature ratings from -40°C to 110°C ensure that the device can be reliably used in harsh environments. The maximum gate trigger voltage is specified at 1.3 V, and the maximum holding current is 5 mA, which helps maintain stable operation during switching cycles.

This TRIAC semiconductor series from Littelfuse is RoHS compliant and halogen free, aligning with modern environmental and safety standards. The LX807MBRP model is part of the LX8 EV series optimizing performance in switching applications requiring precise control and robustness.

Applications include industrial automation, electronic control systems, and power management circuits where controlled AC power switching is critical. The device features a maximum gate trigger current of 3 mA for sensitive triggering.

It supports a surge current rating of 9.5 A offering robustness during transient conditions. Construction includes a surface mount SOT-89 package with 3 pins for efficient PCB integration. Operating temperature range spans from -40°C to a maximum of 110°C ensuring wide industrial usability.

The peak on-state voltage is rated at 1.6 V, optimizing power efficiency. Its repetitive peak reverse voltage is rated at 600 V to withstand high voltage applications. Maximum gate trigger voltage is 1.3 V and the maximum holding current is 5 mA.

Littelfuse LX807MBRP is RoHS compliant and halogen free promoting environmental safety. Ideal for industrial, electronic, and power control applications requiring TRIAC semiconductor switches. Explore more semiconductor products and solutions on EnvMart for reliable and efficient electronic component sourcing.
