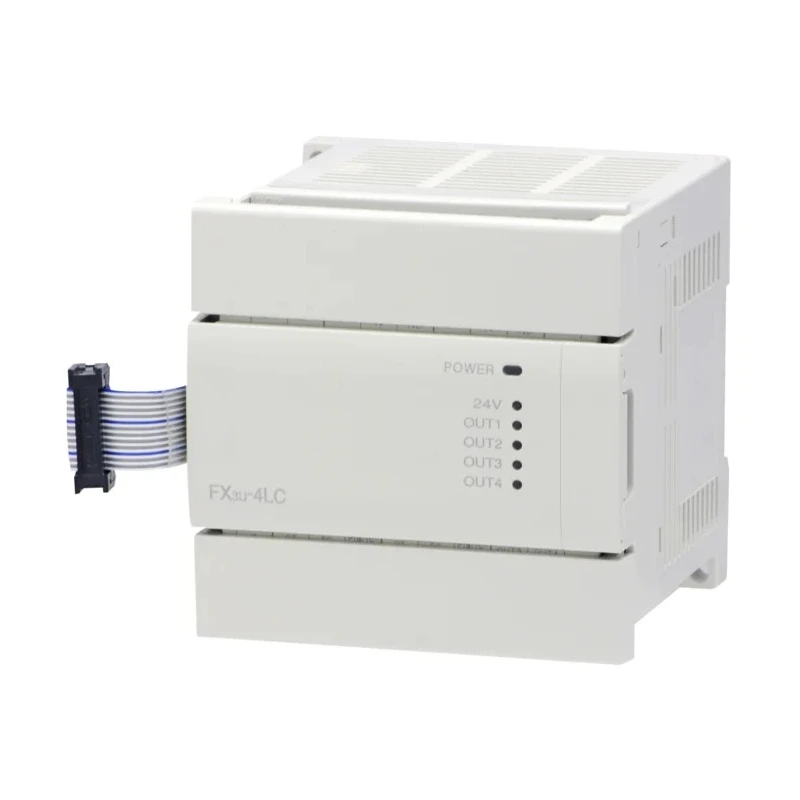

Mitsubishi Electric Analogue Module DC Transistor, 4 Inputs, 4 Outputs, DIN Rail FX3U

The Mitsubishi Electric FX3U-4LC Analogue Module DC Transistor is an advanced PLC expansion accessory engineered for precise signal processing and control tasks in industrial automation environments. Featuring 4 DC analogue input channels compatible with thermocouple, platinum resistance (PT), and mini voltage signals, this module supports flexible data acquisition for temperature and process control applications. Each channel is configured for high-resolution sensing, serving diverse industrial needs.

In addition to its input capabilities, the FX3U-4LC includes 4 transistor output channels, enabling users to drive actuators and control devices with rapid switching response and accuracy. The module integrates seamlessly into DIN rail-mounted system enclosures, supporting quick and secure installation. Its robust form factor and CE, cUL, UL approvals ensure safe, reliable operation in both new deployments and system upgrades.

This model is designed for direct use with Mitsubishi Electric iQ FX3U and FX3 PLC systems, leveraging their extensive expansion abilities. It is capable of advanced temperature control, including applications where internal PID routines may lack the needed speed or precision. The FX3U-4LC's channels support both heating and cooling commands, as well as cascade control strategies, delivering comprehensive process control solutions for manufacturing, HVAC, and laboratory automation.

With an 86 mm depth and 90 mm width, the module fits conveniently into standard control panels. It is part of the MELSEC family, ensuring full compatibility with legacy FX2N expansion modules and new FX3U ADP expansions. This ensures minimal disruption and greater flexibility for system retrofits or expansions. Built in Japan, the module assures exceptional electrical and mechanical durability for harsh environments.

Applications for the FX3U-4LC module include industrial temperature regulation, process monitoring, precision control of heating/cooling elements, automation line integration, and laboratory thermal systems. Industrial end-users benefit from enhanced process reliability, rapid installation, and seamless integration with advanced Mitsubishi Electric automation platforms.
