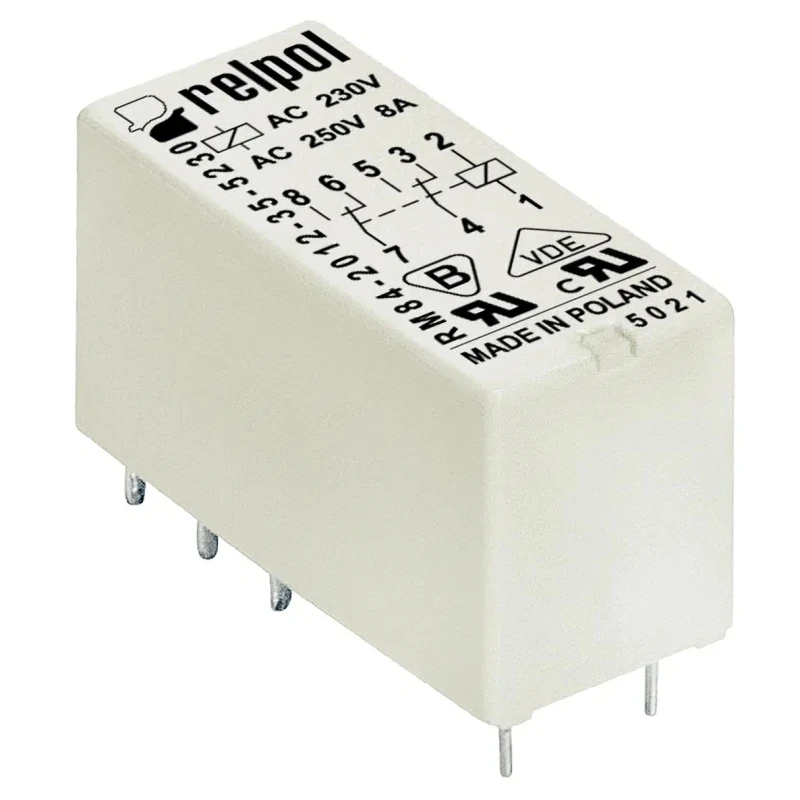

Relpol PCB Power Relay 9V DC Coil 8A Switching Current DPDT RM84-2012-35-1009

Free Delivery in India | Lowest Global Shipping Charges

Relpol PCB Power Relay 9V DC Coil 8A Switching Current DPDT RM84-2012-35-1009

Name: Relpol PCB Power Relay 9V DC Coil 8A Switching Current DPDT RM84-2012-35-1009
Brand: Relpol
SKU: 202388
Price: 5.24 USD
Availability: InStock



Category Power Relay Brand Relpol Condition New

Specifications

Country of Origin	Poland
Brand	Relpol
Height	15.7mm
Length	29mm
Model	RM84-2012-35-1009
Width	12.7mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	RM84
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	EAC, RoHS
Coil Resistance	200Ω
Coil Voltage	9V dc
Switching DC Voltage	24V dc
Switching AC Voltage	440V
Coil Power	480mW

Key Features

The relay operates with a coil voltage of 9V DC.
It offers a double-pole double-throw (DPDT) contact arrangement for versatile switching.
Designed for PCB mounting with PCB pin terminals for easy integration.
Switching power is rated at 2kVA, supporting AC voltages up to 440V and DC voltages up to 24V.
Coil resistance is 200Ω and coil power consumption is 480mW.
The relay withstands operating temperatures from -40°C to 85°C.
Contact material is silver alloy ensuring reliable conduction with a contact resistance of 100mΩ.
Manufactured in Poland and compliant with EAC and RoHS standards.

Product Description

The Relpol RM84-2012-35-1009 PCB Power Relay is a miniature industrial relay designed for general purpose applications requiring reliable circuit switching. Featuring a 9V DC coil, this relay has a double-pole double-throw (DPDT) contact configuration making it ideal for versatile switching needs in automation, electrical, and industrial control systems.

This relay is specifically designed for PCB mounting and uses PCB pin terminals to facilitate easy and secure installation into electronic assemblies. It operates efficiently on a coil voltage of 9V DC with a coil resistance of 200Ω and low coil power consumption of 480mW, ensuring energy-efficient operation.

With a switching current rating of 8A and switching power of 2kVA, it supports AC voltages up to 440V and DC voltages up to 24V, making it suitable for a broad range of power relay applications including control panels and signal conditioning.

The unit operates reliably across a wide temperature range from -40°C to 85°C, supporting harsh environments. Its contact material is silver alloy, providing excellent conductivity and durability with a low contact resistance of 100mΩ.

Physically, the relay has a compact form factor measuring 29mm in length, 12.7mm in width, and 15.7mm in height, which helps in space-constrained PCB integrations. The relay is manufactured in Poland and complies with EAC and RoHS environmental standards, ensuring high quality and eco-friendly production.

The relay is suited for professional industrial, automation, electrical, and HVAC applications requiring accurate and reliable switching. Its miniature size and robust design make it an optimal choice for integration into electronic control boards.

Perfect for use in manufacturing equipment, power distribution boards, and signal conditioning circuits.

For product selection and more detailed technical documents, customers can access datasheets and compliance certificates. Explore the full range of Power Relays available for industrial and commercial use at EnvMart.
