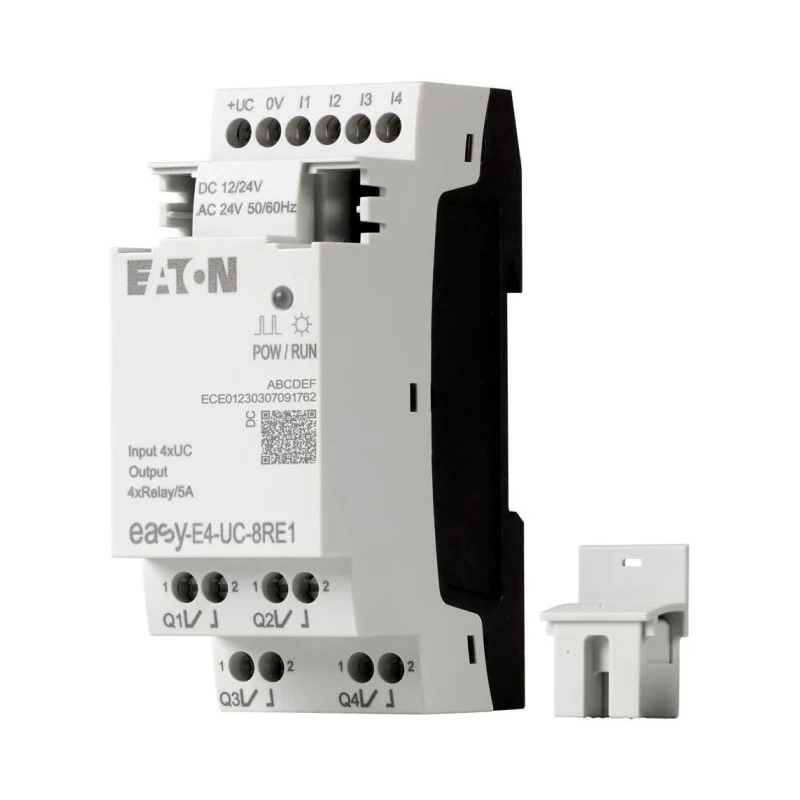

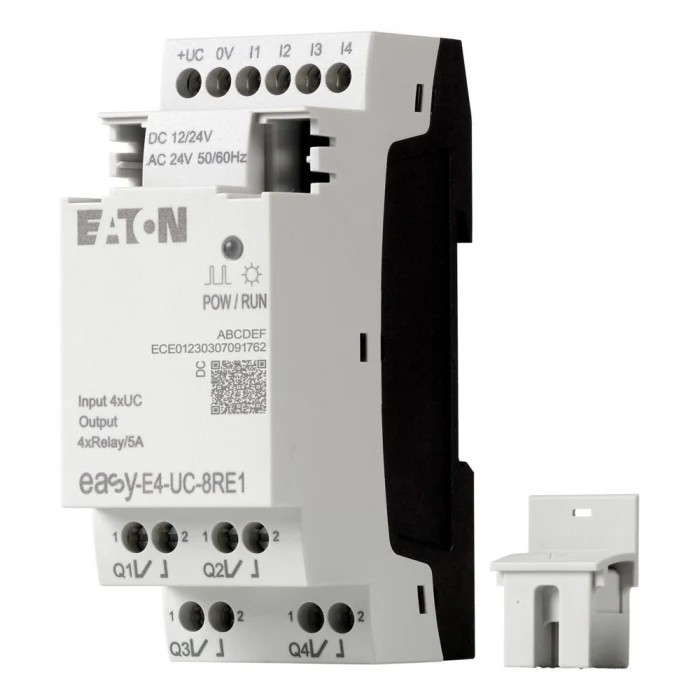

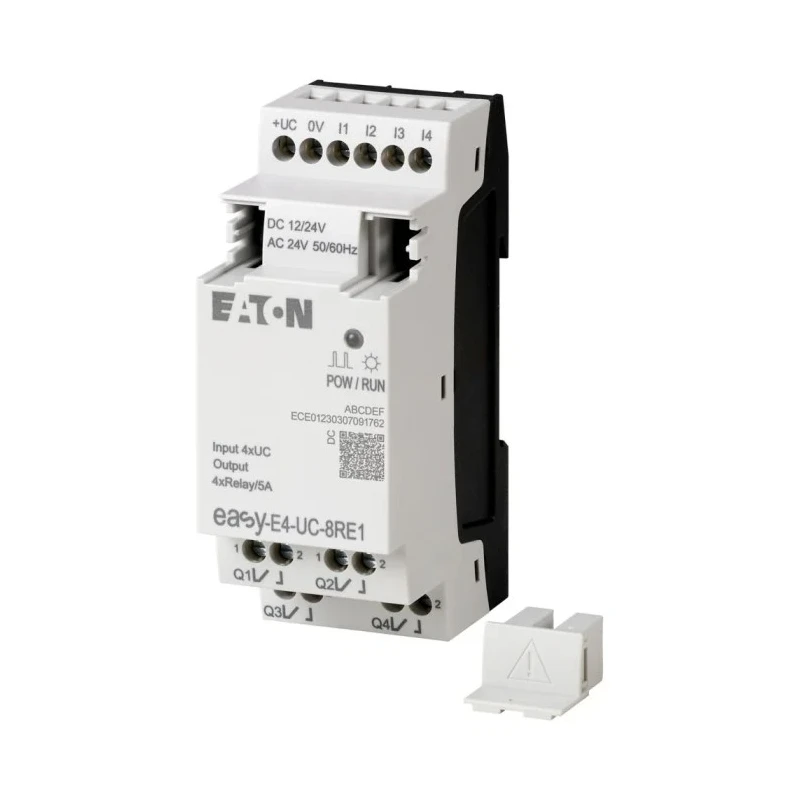

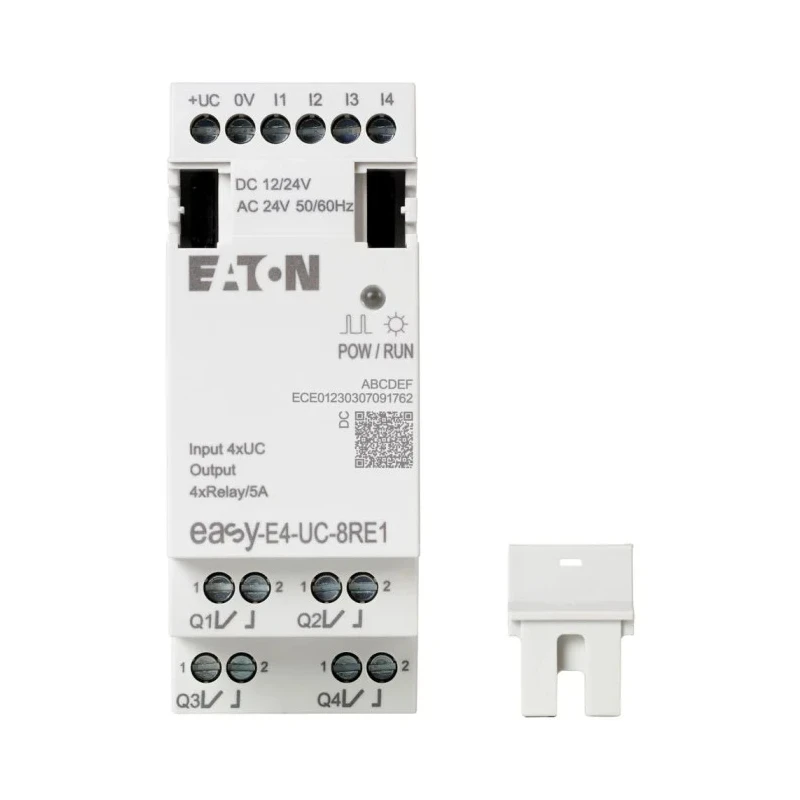

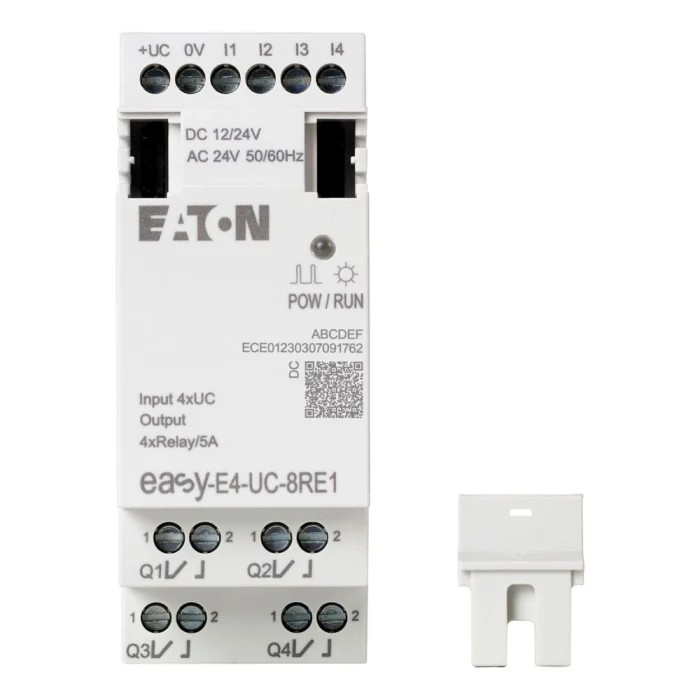

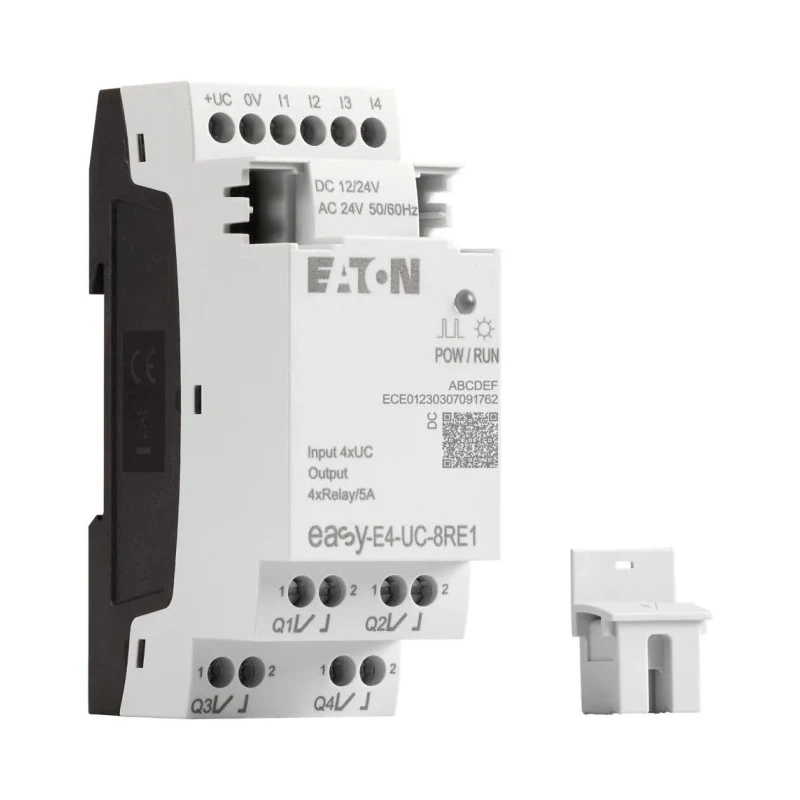

Eaton EasyE4 Series Logic Module 4-Input Digital, 4 Relay Outputs, 12/24V DC Supply Voltage EasyE4

The Eaton EasyE4 Series Logic Module model EasyE4 is a high-performance digital input and relay output control device designed for industrial automation tasks. Operating on a 12/24V DC supply, this compact module measures 35.5 mm in length, 58 mm in width, and 90 mm in depth, fitting easily into dense electrical panels.

With four digital inputs and four relay outputs, the module facilitates the control of multiple devices or process parameters. Eaton’s easySoft software, combined with support for multiple programming languages such as FBD, Ladder Diagram, Structured Text, and Easy Programming EDP, makes programming accessible and efficient.

Featuring Ethernet and NET communication interfaces, the EasyE4 module allows up to eight devices to communicate on the network, enabling complex automation scenarios. Its robust construction allows operation in a wide temperature range from -25°C to +55°C, suitable for demanding industrial environments.

The module includes battery backup for continued operation during power interruptions and an integrated display for user-friendly monitoring. It can be mounted on DIN rails or installed directly, offering flexible mounting options.

This Eaton logic module meets stringent international standards such as CSA C22.2 No.61010, cULus UL 61010, EN 50178, EN 61000-6-2, EN 61000-6-3, IEC 60068 series, and IEC 61131-2, ensuring compliance with safety and electromagnetic compatibility requirements.

The EasyE4 system supports expansion with up to 11 local expansion modules, allowing customization of system capabilities to match application needs. It is suited for industrial, manufacturing, automation, HVAC, and laboratory control environments requiring flexible programmable logic control solutions.

Set contains the Eaton EasyE4 Logic Module 4-Input Digital with 4 Relay Outputs. Explore the comprehensive range of Eaton programmable logic controllers and automation modules on EnvMart for optimized industrial control solutions.

Features four digital inputs and four relay outputs for versatile device control. Operates with a 12/24V DC supply voltage ensuring compatibility with standard industrial power sources. Compact dimensions of 35.5 mm length, 58 mm width, and 90 mm depth for space-saving installations.

Supports programming with FBD, Ladder Diagram, Structured Text, and Easy Programming EDP languages. Equipped with Ethernet communication ports enabling networked device connectivity. Operates reliably within a temperature range from -25°C to +55°C suitable for harsh environments.

Includes battery backup and an integrated display for enhanced operation and status monitoring. Mounts easily on DIN rails or directly, simplifying installation. Complies with multiple international standards including CSA, UL, and IEC for industrial safety.

Expandable up to 11 local expansion modules for scalable system configurations.
