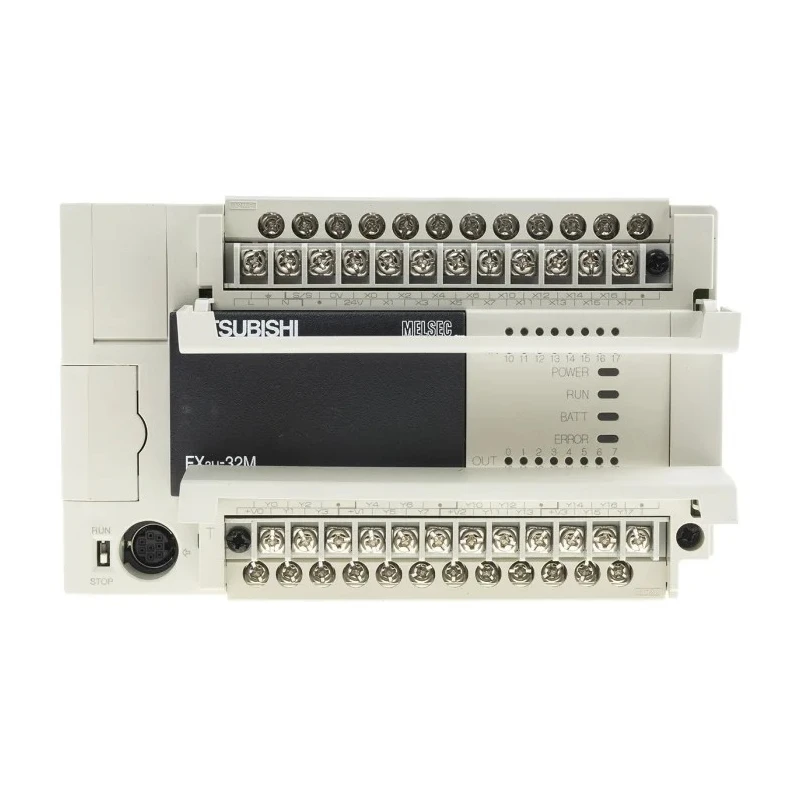

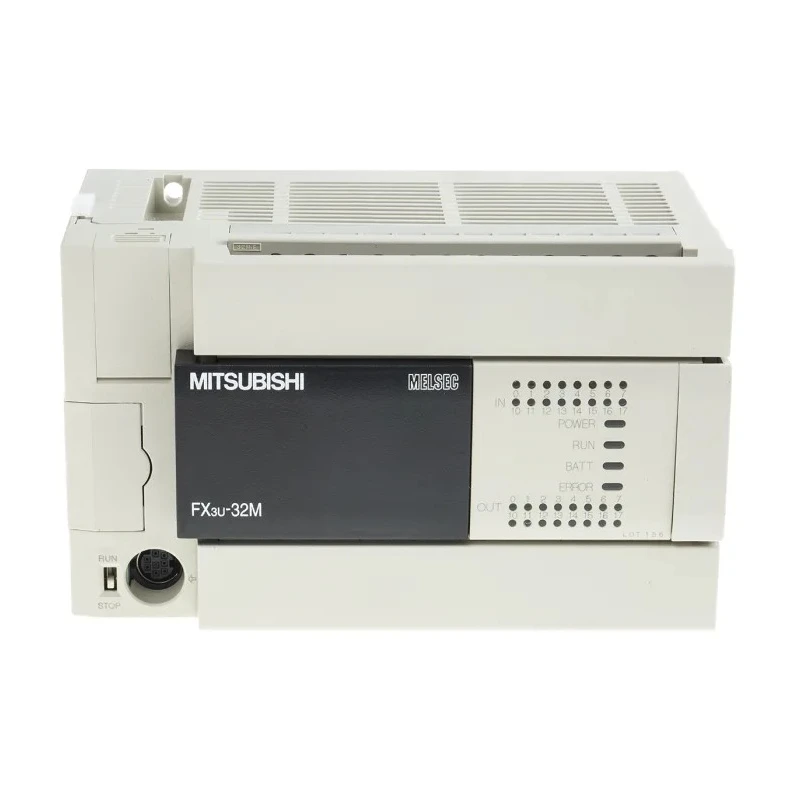

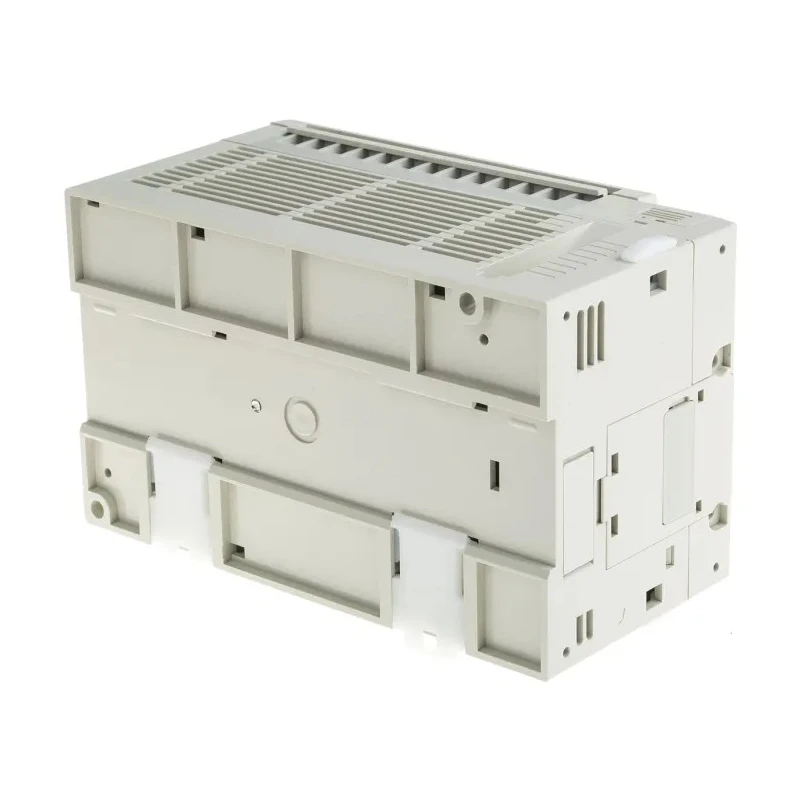

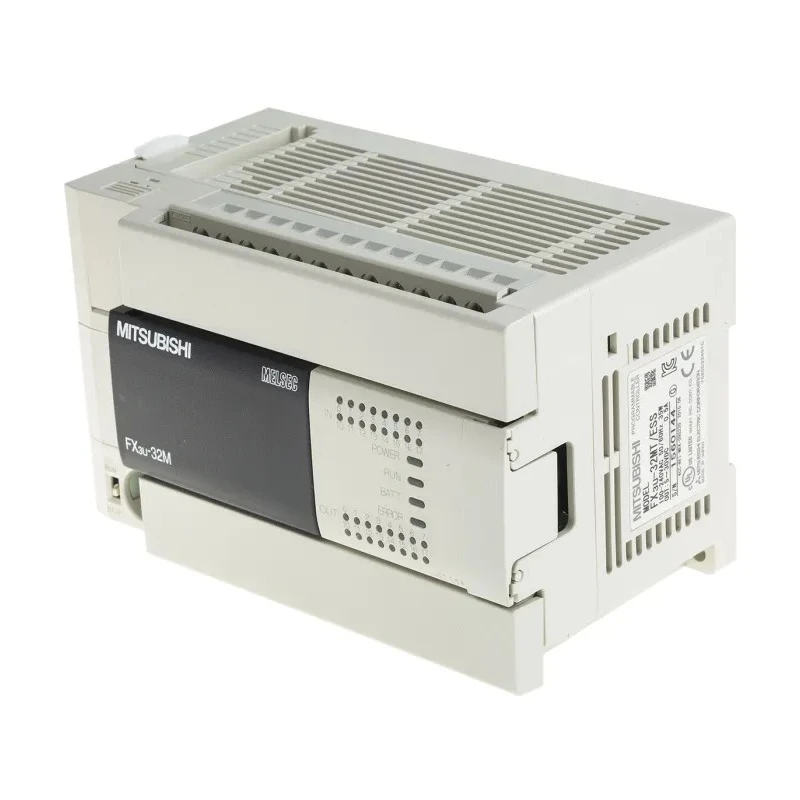

Mitsubishi Electric FX3U Series Logic Module 16-Input Sink Input 16 Outputs Transistor Output

Mitsubishi Electric FX3U-32MT/ESS Logic Module is designed for advanced industrial automation control systems, providing reliable 16-input sink type and 16 transistor output channels. Operating at 100 to 240V AC supply voltage, this module supports versatile communication options including RS232C, RS422, RS485, and USB, facilitating seamless integration with complex automation networks.

This logic module includes an integrated display to show input and output states, as well as a battery backup to preserve program data, ensuring system stability and robustness in critical environments. It uses Ladder Logic programming language with a substantial program capacity of 64,000 steps, suitable for complex automation tasks.

Compact in size with dimensions 150mm (L) x 90mm (W) x 86mm (D), the module mounts easily on DIN rails, making it convenient for industrial panel installations. The output current capacity of 800mA provides adequate power handling for various control applications. With operational temperature range from 0°C to 50°C, it guarantees dependable performance in typical industrial climate conditions.

The FX3U series Logic Modules are fully compatible with PROFIBUS/DP network and Ethernet connections, allowing upgrade and expansion with additional modules. It also features an integrated real-time clock for accurate timing and scheduling applications.

Mitsubishi Electric's FX3U-32MT/ESS model complies with UL and CE standards and is made in Japan, ensuring high quality and safety for industrial automation tasks. Features 16 sink inputs and 16 transistor outputs for efficient control.

Supports multiple industrial communication protocols including RS232C, RS422, RS485, and USB. Equipped with battery backup and real-time clock for system reliability. Compact dimensions enable easy DIN rail mounting. Operates within temperature range 0°C to 50°C ensuring environmental durability.

Program capacity of 64,000 steps for complex automation programming. Output current rated at 800mA suitable for various industrial control outputs. Complies with UL and CE approvals. Designed and manufactured in Japan for superior quality.

Ideal for industrial automation, manufacturing, electrical automation, and HVAC control systems. For related products, explore the Mitsubishi Electric FX3U series PLC I/O modules and expansion modules on EnvMart.
