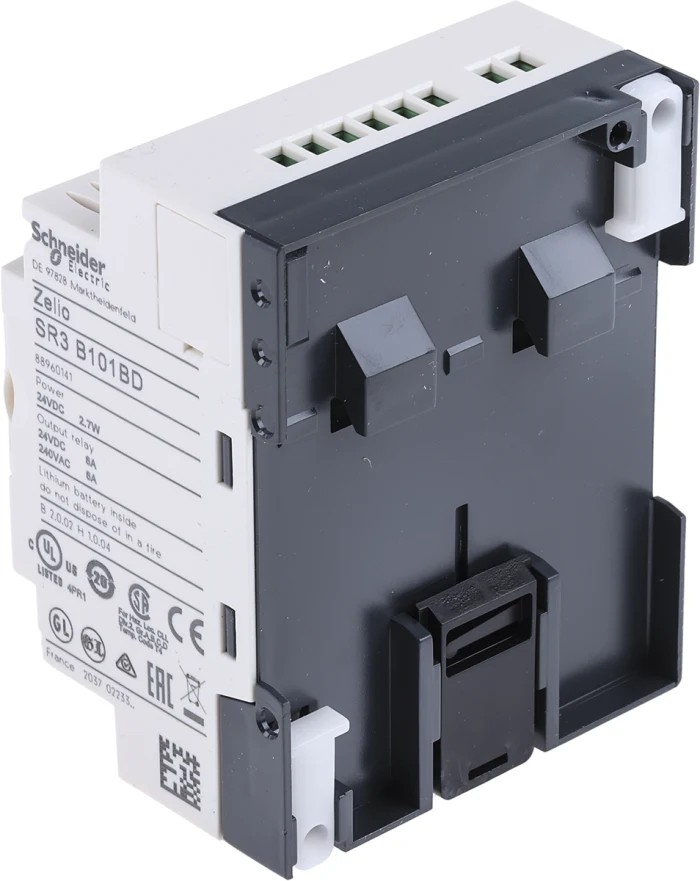

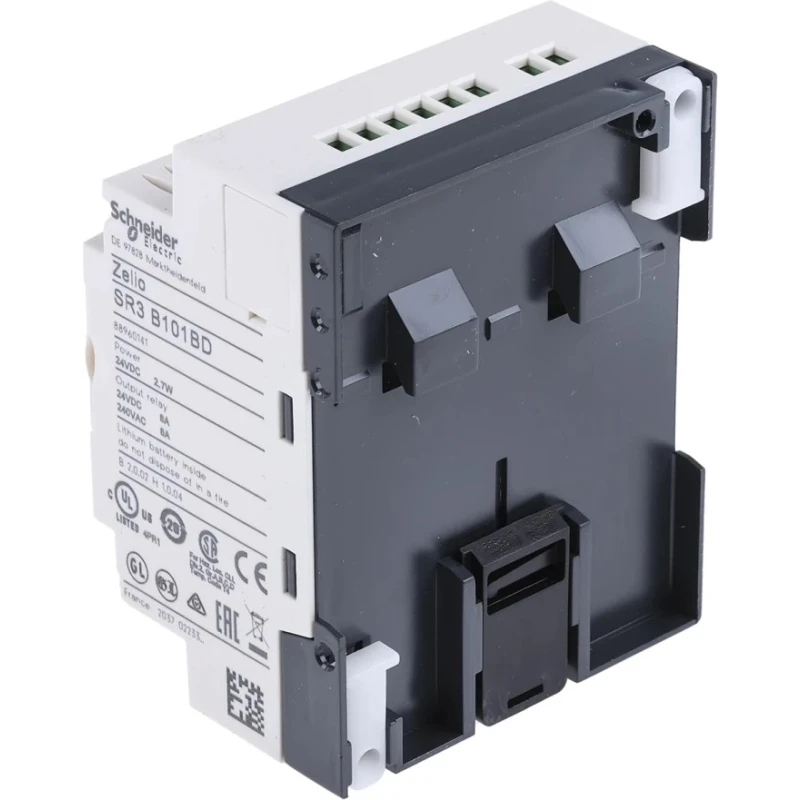

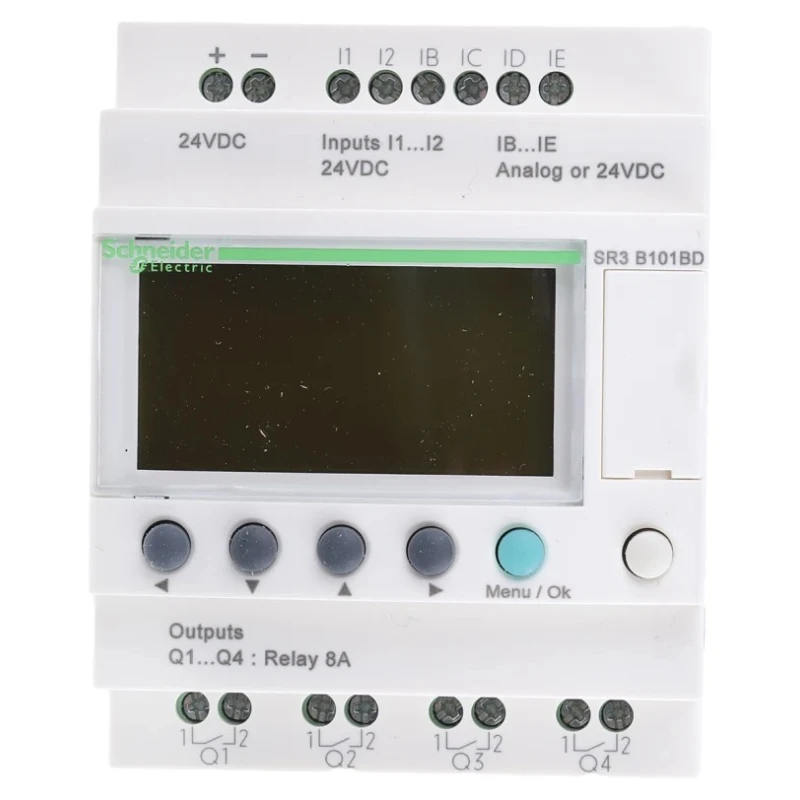

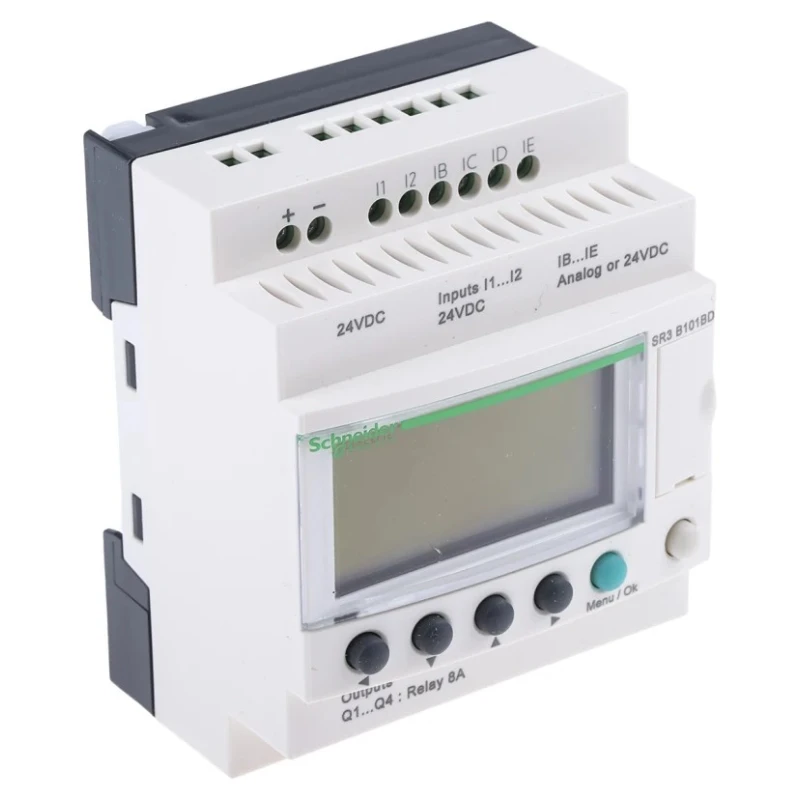

Schneider Electric Zelio Logic Series Logic Module 6-Input Analogue Input 4 Outputs Relay Output SR3B101BD

Schneider Electric SR3B101BD Zelio Logic Series Logic Module is engineered for simple and reliable automation in commercial and light industrial environments. Featuring 6 analogue inputs and 4 relay outputs, this device is optimized for controlling systems such as heating, ventilation, air conditioning, lighting and smaller machinery.

The module includes a backlit LCD display for intuitive monitoring and supports programming via Ladder Logic and function block diagram (FBD), offering flexibility for automation engineers. Programming can be performed via the device interface or remotely through a connected PC using the free downloadable software provided by Schneider Electric.

Its wide operating temperature range from -20°C to 55°C ensures dependable function in demanding industrial settings. Mounting options include DIN rail or panel installation, facilitating easy integration into existing control panels.

The module also incorporates a battery backup feature, protecting programmed data during power outages. Communication with the module is facilitated via a computer port, enabling diagnostics and configuration tasks.

Measuring 90 mm wide, 72 mm long, and 59.5 mm deep, this compact logic module fits efficiently within control cabinets. Schneider Electric, a renowned brand, manufactures this product in France abiding by global standards including UL, IEC, GL, and CSA certifications.

The module has 6 analogue inputs and 4 relay outputs. Backlit LCD interface enhances readability and operation. Supports Ladder Logic and function block diagram programming. Wide operating temperature range from -20°C to 55°C.

DIN rail or panel mounting options for flexible installation. Battery backup ensures retention of programmed configurations. Optimized for HVAC, lighting, and small machinery control. Computer communication port enables programming and monitoring.

Compact dimensions for space-constrained panels. Manufactured in France with international compliance standards.

This Logic Module is ideal for industrial automation tasks, laboratory controls, HVAC systems, manufacturing process controls, and commercial automation projects. For customers seeking efficient control solutions, Schneider Electric Zelio Logic Series offers a trusted product with robust performance.
