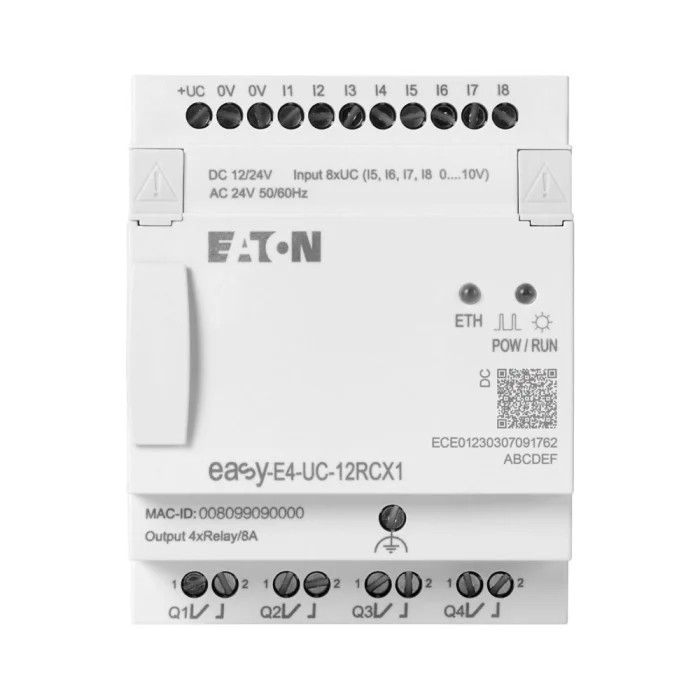

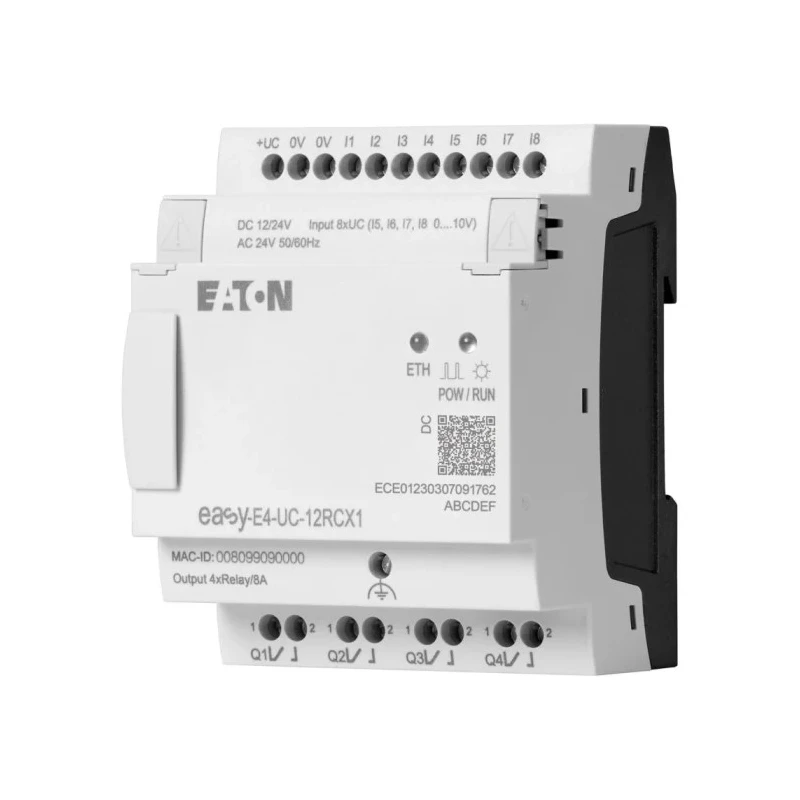

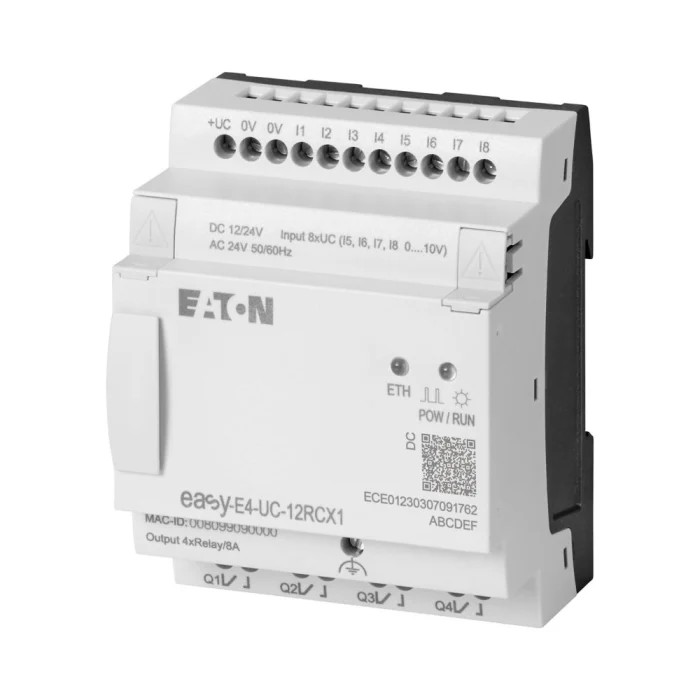

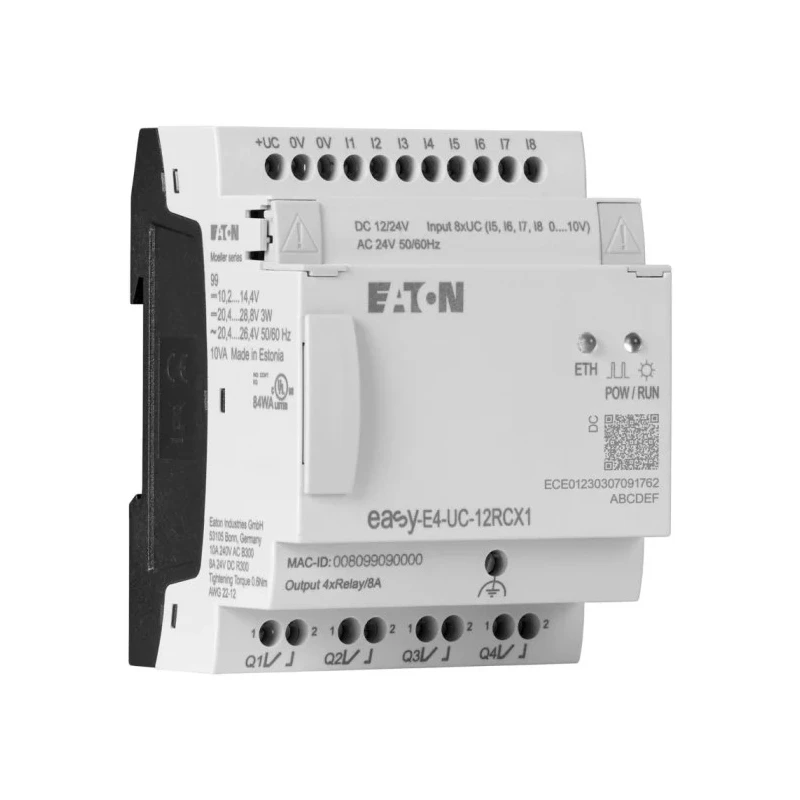

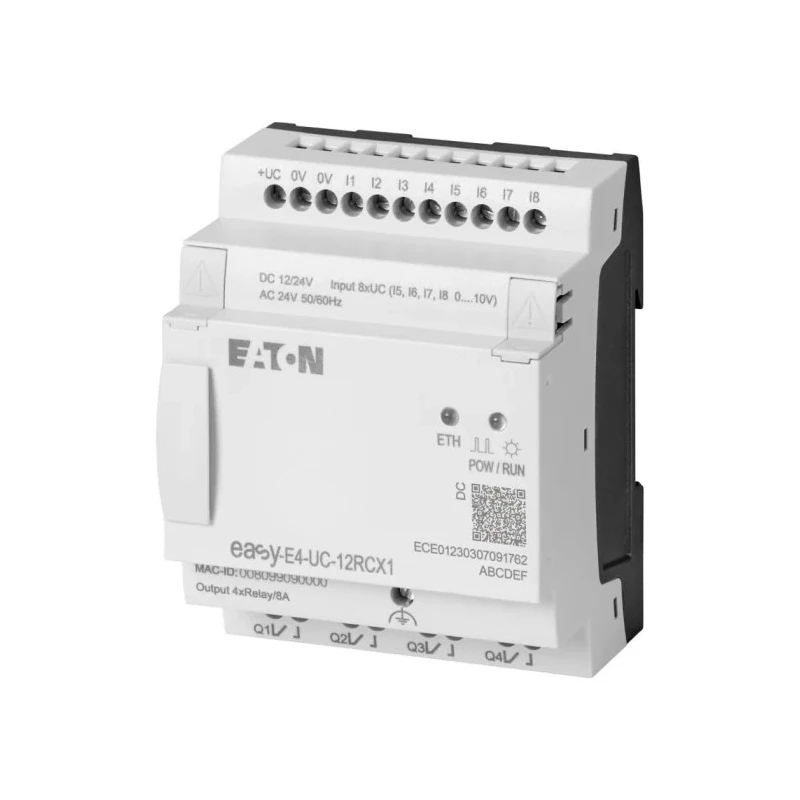

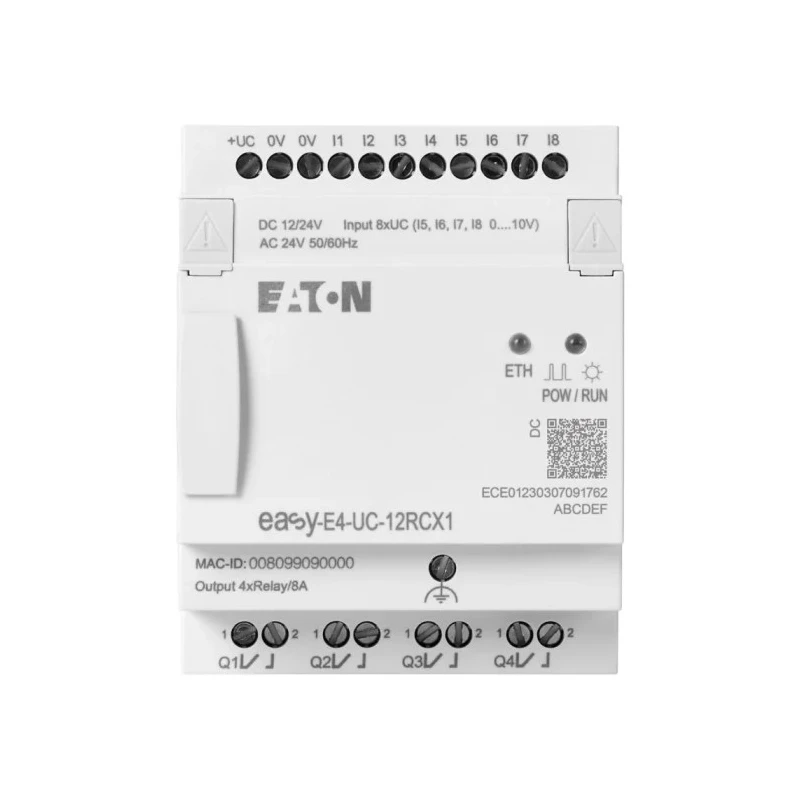

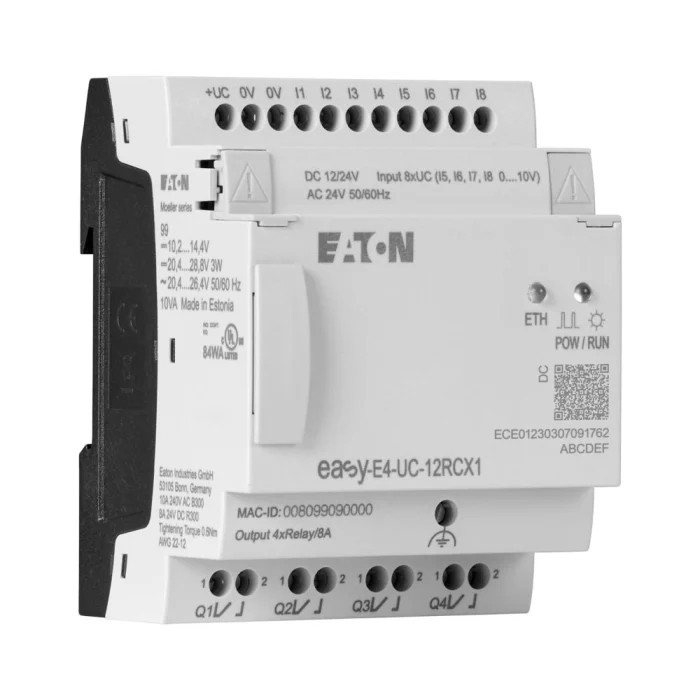

Eaton easyE4 Series Logic Module 8-Input Analogue Digital Input 4 Outputs Relay Output easyE4

Eaton easyE4 Series Logic Module easyE4 offers 8 inputs comprising analogue and digital inputs and 4 relay outputs, suited for controlling and monitoring industrial equipment. The module supports a supply voltage of 12 to 24 V dc and provides versatile connectivity through its integrated Ethernet port. It enables efficient communication and control in automated environments including manufacturing, HVAC, and industrial process control.

The compact design (71.5mm length, 58mm width, 90mm depth) allows flexible installation on DIN rails or surfaces, with vertical or horizontal orientation. The module features LED indicators for quick operational status monitoring and a display to assist diagnostics. It is built to withstand demanding environmental conditions with a wide operating temperature range from -25°C to +55°C and certifications including CSA C22.2 No.61010 and UL 61010.

The easyE4 series simplifies control system implementation with easySoft programming software supporting languages such as Structured Text (ST), Ladder Diagram, and Function Block Diagram (FBD). Expansion modules are available to extend input/output capabilities, enabling scalable automation solutions. Its shock and vibration resistance and operating pressure range of 795 to 1080 hPa ensure reliable performance in industrial settings.

Typical applications include industrial automation control, sensor parameter monitoring, and electrical equipment regulation. The relay outputs enable activation of devices like motors, valves, and alarms, while the analogue inputs allow precise sensor data acquisition. The Ethernet interface supports fast data transfer rates of 10/100Mbps for industrial communication protocols.

Offers 8 inputs with 4 of them switchable to analogue for versatile data acquisition. Provides 4 relay outputs to control external devices effectively. Supports programming in Structured Text, Ladder Diagram, FBD, and easy programming EDP languages.

Includes built-in Ethernet communication port for seamless integration with industrial networks. Wide operational temperature range from -25°C to 55°C suitable for harsh industrial environments. Compact dimensions (71.5mm length, 58mm width, 90mm depth) with DIN rail mount capability.

Equipped with battery backup and an integrated display for status monitoring. Compliant with multiple international standards including CSA, UL, EN, and IEC certifications. Designed for easy installation either clipped on DIN rail or screw-fixed surface mounting.

Explore the Eaton easyE4 series for efficient and scalable Logic Modules in industrial automation at EnvMart.
