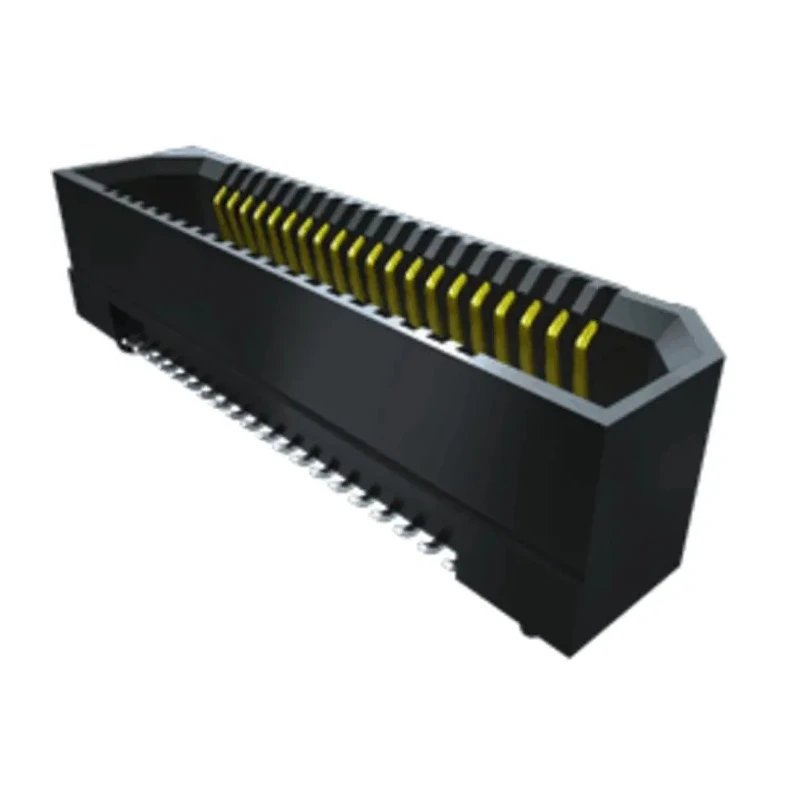

Samtec ERF8 Series Straight Surface PCB Socket, 60-Contact, 2 Row, 0.8 mm Pitch, 2.2A Current, 318V Voltage
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | ERF8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | ERF8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Positions | Up to 200 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Connector System | Board-to-Board |
| Stacking Height | 18mm |
| Row Pitch | 4.5mm |
| Stack Height | 7.00 mm - 16.00 mm |
Key Features
- Board-to-board mounting with solder termination ensures strong connectivity.
- Housing made of Liquid Crystal Polymer provides durability at high temperatures.
- Supports current up to 2.2 A with contact plating in gold for excellent conductivity.
- Operating temperature range from -55°C to 125°C suits varied industrial environments.
- Stack height of 18 mm and row pitch of 4.5 mm enable compact PCB designs.
- Connector system designed for board-to-board applications with straight orientation.
- Supports voltage rating of 318 V for reliable signal transmission.
- Bronze contact material offers sturdy electrical connection and wear resistance.
Product Description
Samtec ERF8-030-05.0-S-DV-L-K-TR is a Straight Surface PCB Socket featuring 60 contacts in 2 rows with a 0.8 mm pitch. It is crafted for board-to-board connectivity, ensuring robust solder termination suitable for high-speed electronic applications.
The housing consists of Liquid Crystal Polymer, offering excellent thermal and mechanical stability. The socket supports currents up to 2.2 A and voltages up to 318 V, making it ideal for demanding industrial electronic environments.
Operating reliably in temperatures ranging from -55°C to 125°C, this connector includes gold-plated bronze contacts for enhanced electrical performance and wear resistance. The connector's straight orientation and 18 mm stacking height fit compact PCB layouts efficiently.
Designed as part of the ERF8 series, this socket features a smooth and broad milled contact surface for increased wear life, supporting up to 200 positions and providing rugged Edge Rate® high-speed performance. It matches industry requirements for board-to-board connectors in electronic manufacturing, HVAC control systems, communication equipment, and industrial automation.
Board-to-board mounting with solder termination ensures strong connectivity. Durable Liquid Crystal Polymer housing withstands high temperatures. Supports currents up to 2.2 A with gold-plated bronze contacts. Wide operating temperature range from -55°C to 125°C.
18 mm stacking height for compact PCB design compatibility. Straight orientation suitable for standard board layouts. Rated voltage of 318 V ensures reliable signal performance. Robust construction for industrial electronics and manufacturing.
Compatible with high-speed electronic applications requiring up to 200 positions.
This product is made in the United States, representing high manufacturing standards. It is an ideal choice for electronics assembly, industrial automation, and board-to-board interconnections requiring durable and high-performance sockets.
Explore additional PCB Sockets and connectors at EnvMart for comprehensive electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 2.2 A.
The voltage rating for this socket is 318 V, ensuring reliable signal transmission.
It operates reliably within a temperature range of -55°C to 125°C.
This socket features 60 contacts arranged in 2 rows.
The pitch size of this model is 0.8 mm, which allows for compact designs.
The housing is made of Liquid Crystal Polymer, and the contacts are bronze with gold plating for enhanced conductivity.
The stacking height for this socket is 18 mm, suitable for compact PCB layouts.
It uses solder termination for strong connectivity in board-to-board applications.
This unit features a straight orientation, which is standard for many board layouts.
It can support up to 200 positions, making it versatile for various applications.
This product is made in the United States, adhering to high manufacturing standards.
It is designed for board-to-board interconnections in electronic manufacturing, HVAC control systems, and industrial automation.
