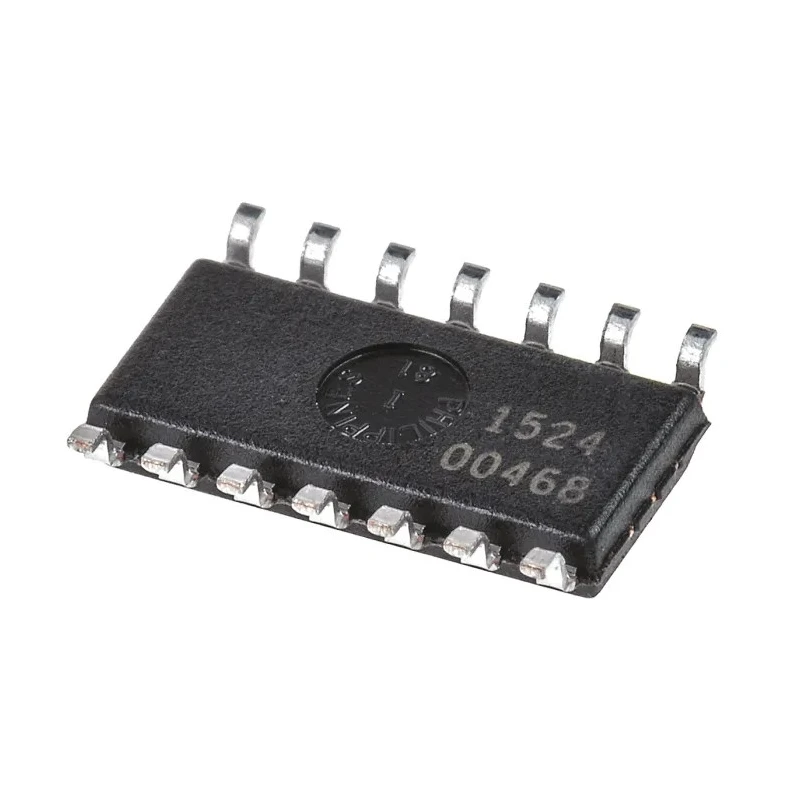

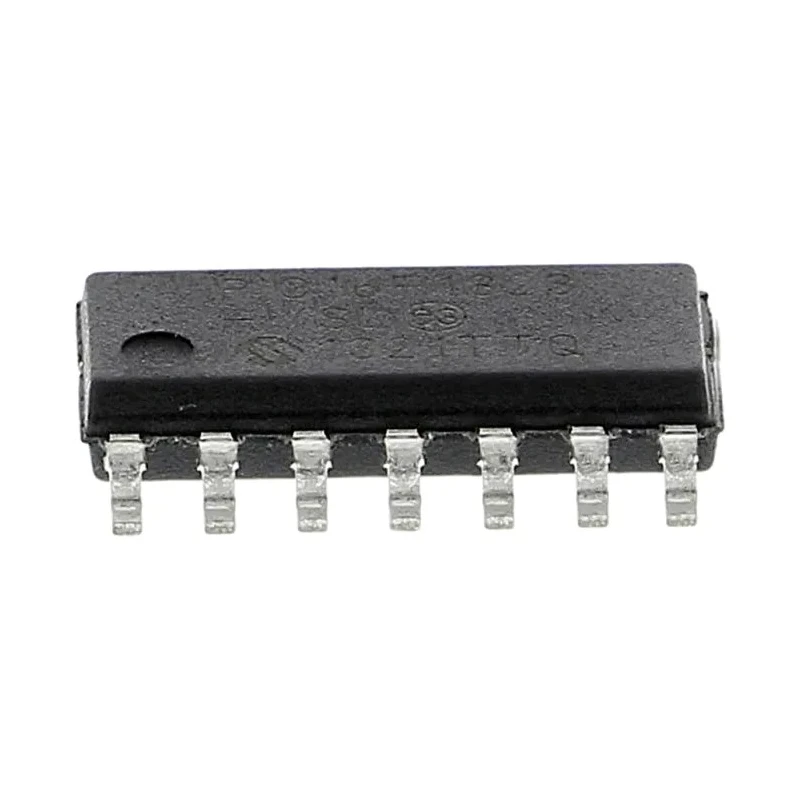

Microchip PIC16F1823-I/SL 8-bit PIC Microcontroller 32 MHz 3.5kB Flash 14-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F1823-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Operates at a maximum clock frequency of 32 MHz for efficient processing.
- Features 3.5kB of FLASH program memory for reliable program storage.
- Equipped with 128-bit RAM and 256-bit EEPROM for data storage and retention.
- Contains 12 programmable input/output pins for versatile interfacing.
- Includes 8-channel 10-bit ADC for analog signal conversion.
- Incorporates advanced peripherals like enhanced capture/compare/PWM modules.
- Operates within a wide supply voltage range from 1.8V to 5.5V.
- Designed with enhanced mid-range core architecture supporting 49 instructions and 16-level hardware stack.
Product Description
Microchip PIC16F1823-I/SL is an 8-bit PIC microcontroller featuring Microchip's enhanced mid-range architecture. It operates at a maximum clock frequency of 32 MHz and provides 3.5kB of FLASH program memory along with 128 bits of RAM and 256 bits of EEPROM. This 14-pin SOIC surface mount device offers 12 programmable I/O pins, enabling flexible interfacing options.
The microcontroller integrates a configurable internal oscillator factory-calibrated to ±1% accuracy for precise timing applications. It supports advanced peripherals, including an 8-channel 10-bit Analog to Digital Converter (ADC), two analog comparators, a 5-bit Digital to Analog Converter (DAC), and enhanced capture/compare/PWM modules, making it suitable for complex embedded systems.
Its operating voltage ranges from 1.8 to 5.5 volts, with operating temperature from -40°C to 85°C, ensuring robust performance across diverse environmental conditions. Additional features include low-voltage programming, brown-out reset, watchdog timer, and multiple timers for varied control requirements.
This microcontroller is ideal for industrial automation, laboratory instrumentation, automotive electronics, and HVAC systems requiring low power, high precision, and extensive interfacing capabilities. The compact 14-pin SOIC package measures 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height.
Operates at 32 MHz maximum CPU speed with a 16-level hardware stack and 49 instructions. Includes 12 programmable I/O pins for versatile device control. Features 3.5kB FLASH program memory with RISC architecture. Enhanced peripherals including 8-channel 10-bit ADC and capacitive sensing.
Supports low-voltage programming and brown-out reset for stability. Wide temperature range of -40°C to 85°C suitable for rugged environments. Compact 14-pin SOIC surface mount package ideal for space-constrained designs.
Package includes 1 Pc Microchip PIC16F1823-I/SL Microcontroller. Explore EnvMart's Electronics & Electricals category for more semiconductor and Microcontroller products to enhance your projects and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 3.5kB of FLASH program memory for reliable program storage.
This microcontroller includes 12 programmable input/output pins for versatile interfacing.
The operating voltage range is from 1.8V to 5.5V.
It includes an 8-channel 10-bit ADC and two analog comparators for analog signal processing.
The operating temperature range is from -40°C to 85°C, suitable for various environments.
It comes in a 14-pin SOIC package with dimensions of 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height.
This model includes three timers for varied control requirements.
It is equipped with 128 bits of RAM for data storage and retention.
Yes, it supports low-voltage programming along with features like brown-out reset.
It complies with RoHS standards, ensuring environmental safety.
It uses a RISC (Reduced Instruction Set Computing) architecture for efficient processing.
