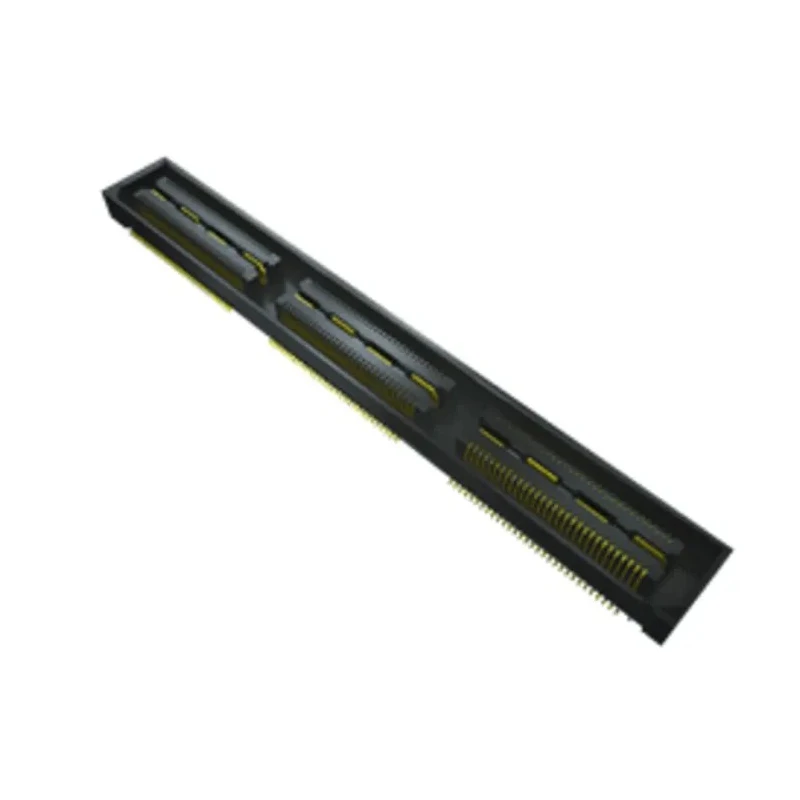

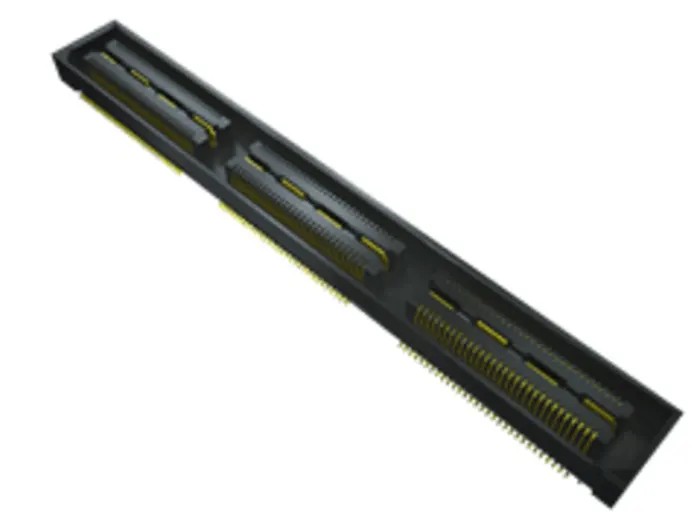

Samtec QSH Series Straight Surface PCB Socket 60-Contact 2 Row 0.5 mm Pitch Solder QSH-030-01-L-D-A-K
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 175V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 25A |
| Model | QSH-030-01-L-D-A-K |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | QSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Connector System | Board-to-Board |
| Stacking Height | 5mm |
Key Features
- Features 60 contacts arranged in 2 rows for compact connection.
- Offers a 0.5 mm pitch ensuring precise and tight spacing.
- Constructed with liquid crystal polymer housing for durability and stability.
- Supports current rating up to 25 amperes for high-power applications.
- Designed with gold-plated bronze contacts to ensure excellent conductivity.
- Surface mount type with straight orientation for easy PCB integration.
- Operates reliably within temperature range -55°C to 125°C.
- Supports voltage up to 175 volts for versatile electronic uses.
Product Description
Samtec QSH-030-01-L-D-A-K is a straight surface mount PCB socket from the QSH Series designed for board-to-board connections. This socket features 60 contacts arranged in 2 rows with a 0.5 mm pitch, providing precise alignment and high-density connectivity for electronic components.
The housing is made of liquid crystal polymer which ensures mechanical stability and durability under demanding environmental conditions. The contacts are bronze, gold-plated to enhance electrical performance and corrosion resistance, suitable for sensitive and high-frequency signal transmission.
This connector supports a current of up to 25 amperes and voltage up to 175 volts, making it ideal for industrial, commercial, and electronic applications where dependable power and signal integrity are critical. Its surface mount termination type and straight orientation facilitate easy PCB assembly and reliable soldering.
Operating temperature ranges from -55°C to 125°C, suitable for harsh environments and demanding operational scenarios. The 5 mm stacking height offers a low profile to save space on circuit boards without compromising performance.
Features 60 contacts arranged in 2 rows for compact connection. Offers a 0.5 mm pitch ensuring precise and tight spacing. Constructed with liquid crystal polymer housing for durability and stability. Supports current rating up to 25 amperes for high-power applications.
Designed with gold-plated bronze contacts to ensure excellent conductivity. Surface mount type with straight orientation for easy PCB integration. Operates reliably within temperature range -55°C to 125°C. Supports voltage up to 175 volts for versatile electronic uses.
Low profile design with 5 mm stacking height to save board space. Suitable for high-speed data transfer up to 9.5 GHz/19 Gbps.
This PCB socket is extensively used in various industrial, electronic manufacturing, telecommunications, and laboratory equipment applications requiring fast signal transmission and robust electrical contacts. It supports high-speed ground plane socket strips and is compatible with differential pair signaling for advanced electronics.
Explore the full range of PCB connectors and sockets at EnvMart for reliable component sourcing.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 25 amperes, making it suitable for high-power applications.
It supports a voltage of up to 175 volts, allowing for versatile electronic uses.
The contacts are arranged with a pitch of 0.5 mm, ensuring precise and tight spacing for high-density connectivity.
This unit operates reliably within a temperature range of -55°C to 125°C, suitable for harsh environments.
The housing is made of liquid crystal polymer, and the contacts are bronze with gold plating to enhance conductivity and corrosion resistance.
It features 60 contacts arranged in 2 rows, allowing for compact connections in electronic assemblies.
It utilizes a solder termination type, which is common for secure PCB assembly.
The stacking height is 5 mm, providing a low profile to save space on circuit boards without compromising performance.
Yes, it supports high-speed data transfer up to 9.5 GHz or 19 Gbps, making it suitable for advanced electronics applications.
It is designed as a board-to-board connector system, facilitating connections between different PCB layers.
This model has a straight orientation, which simplifies PCB integration and assembly.
The country of origin for this PCB socket is India.
