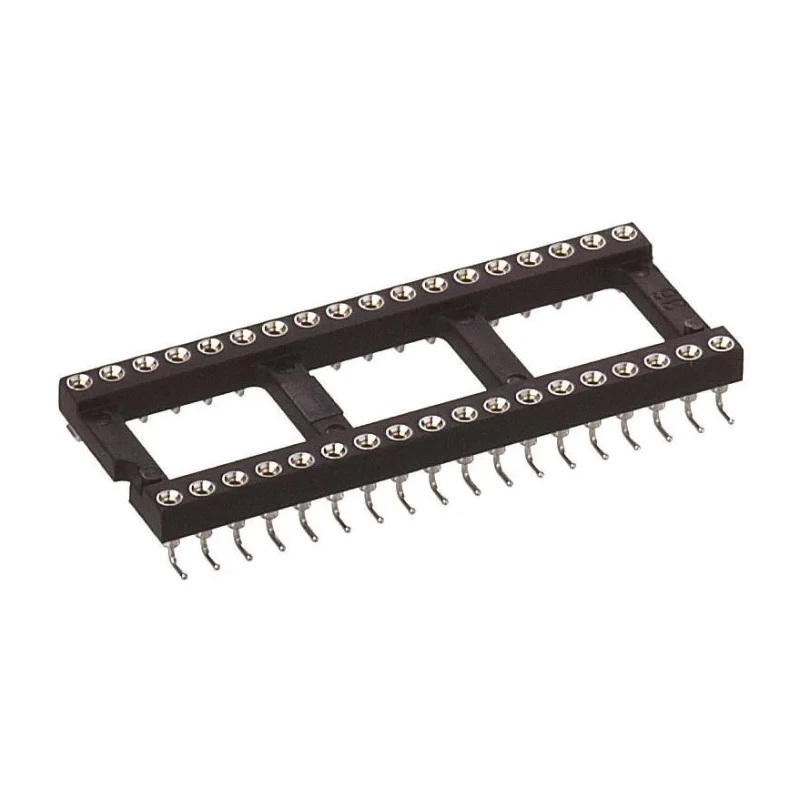

Preci-Dip Open Frame DIL Socket 32 Way, 2.54 mm Pitch, Vertical Orientation, Surface Mount, 1A Current 110-87-632-41-105101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip Open Frame DIL Socket 32 Way, 2.54 mm Pitch, Vertical Orientation, Surface Mount, 1A Current 110-87-632-41-105101

Name: Preci-Dip Open Frame DIL Socket 32 Way, 2.54 mm Pitch, Vertical Orientation, Surface Mount, 1A Current 110-87-632-41-105101
Brand: Preci-Dip
SKU: 215384
Price: 5.78 USD
Availability: InStock



Category DIL Socket Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	100, 150V ac
Brand	Preci-Dip
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	40.6mm
Depth	2.8mm
Width	17.7mm
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass, Beryllium Copper Alloy
Series	110
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold, Tin
Number of Contacts	32
Pin Type	Turned
Row Width	15.24mm
Stock numbers	702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar

Key Features

The socket supports a current rating of 1A for reliable electrical performance.
It uses gold and tin contact plating on brass and beryllium copper alloy materials for durability.
Its open frame design facilitates easy circuit board installation and inspection.
Operating temperature ranges from -55°C to 125°C, suitable for various industrial environments.
The socket measures 40.6 mm length, 17.7 mm width, and 2.8 mm depth for compact PCB footprints.
Termination is by solder with a vertical orientation for secure PCB attachment.
The housing is constructed from fibreglass reinforced polyethylene terephthalate for mechanical strength.
This product is manufactured in Switzerland with Swiss quality standards.

Product Description

Preci-Dip 110-87-632-41-105101 is a precision-engineered 32 way open frame DIL socket designed for electronic component interfacing on PCBs.

Featuring a 2.54 mm pitch and vertical orientation, this socket supports surface mount technology with solder terminations and provides reliable connections carrying up to 1A current.

The contact pins are made of brass and beryllium copper alloy with gold and tin plating, ensuring excellent conductivity and corrosion resistance. The open frame design allows for easy mechanical and electrical inspection.

This DIL socket operates efficiently across a temperature range from -55°C to 125°C, fitting diverse industrial applications and environmental conditions. The housing is crafted from fibreglass reinforced polyethylene terephthalate, offering robust mechanical strength and insulation properties.

Mechanical dimensions include a length of 40.6 mm, width of 17.7 mm, and a depth of 2.8 mm, making it compact for high-density PCB layouts. Manufactured in Switzerland, the product meets high standards expected in electronics and industrial equipment assembly.

The socket’s 32 contacts with 2.54 mm pitch are ideal for DIP IC mounting. Gold and tin contact plating enhances signal integrity and lifecycle. Surface mount configuration with vertical orientation supports modern PCB assembly.

Broad operating temperature ensures versatility across applications. Open frame construction simplifies inspection and maintenance. Robust housing material improves mechanical durability. This Preci-Dip DIL Socket is widely used in electronics manufacturing, testing equipment, industrial machinery, and other applications requiring reliable IC socket connections.
