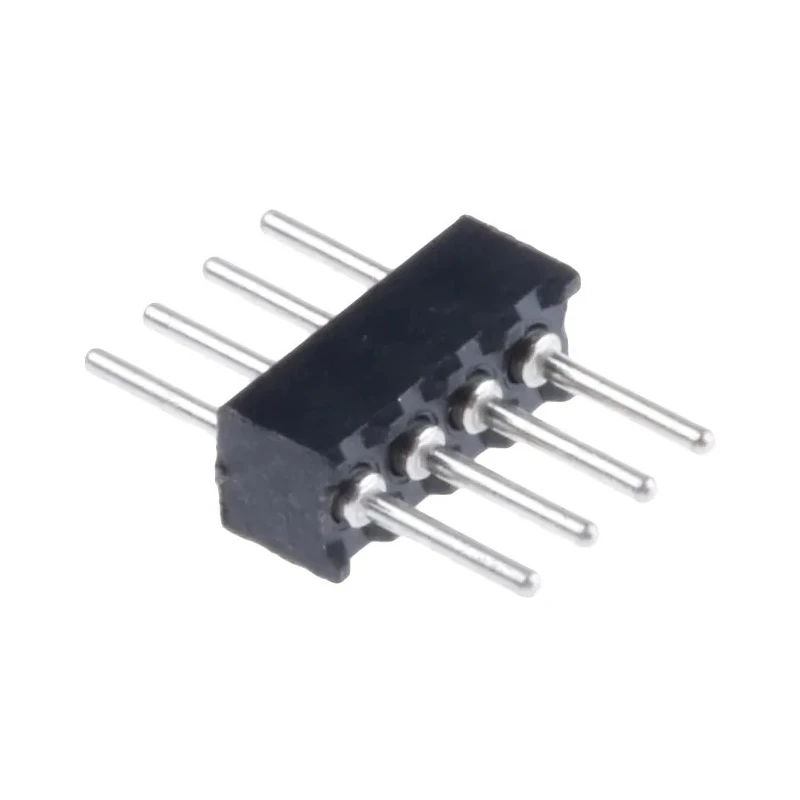

Preci-Dip 850 Series Straight Through Hole Pin Header, 4 Contacts, 1.27 mm Pitch, 1 Row, Unshrouded 850-80-004-10-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 850 Series Straight Through Hole Pin Header, 4 Contacts, 1.27 mm Pitch, 1 Row, Unshrouded 850-80-004-10-001101

Name: Preci-Dip 850 Series Straight Through Hole Pin Header, 4 Contacts, 1.27 mm Pitch, 1 Row, Unshrouded 850-80-004-10-001101
Brand: Preci-Dip
SKU: 215271
Price: 1.3 USD
Availability: InStock



Category PCB Headers Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	850
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

Features 4 male contacts with a pitch of 1.27 mm in a single row.
Made from fibreglass reinforced polyethylene terephthalate housing for durability.
Brass contacts with tin plating ensure reliable electrical conductivity.
Designed for through-hole solder mounting on PCBs.
Operates reliably from -55°C to 125°C temperature range.
Supports a maximum current of 1A and voltage up to 150V.
Unshrouded design allows easy access to contacts.
Precision Swiss engineering and quality with country of origin Switzerland.

Product Description

The Preci-Dip 850-80-004-10-001101 is a high-quality pin header from the renowned 850 series by Preci-Dip, designed specifically for electronic PCB connector applications. This model features a straight through hole mount with four male contacts arranged in a single row at a standard pitch of 1.27 mm, making it suitable for precise electronic assemblies.

Constructed with a housing made from fibreglass reinforced polyethylene terephthalate, it offers excellent mechanical strength and durability. The contacts are made of brass and plated with tin, providing reliable and stable electrical connections over time.

This pin header operates effectively within a temperature range of -55°C to 125°C and supports a current rating of 1 ampere with a maximum operational voltage of 150 volts. It is designed for through-hole solder termination, ensuring secure mount and highly reliable performance in demanding environments.

The unshrouded configuration provides easy access for connection and inspection. The compact body height measures approximately 2.2 mm with tail length of 2.9 mm, optimized for various circuit board layouts.

Engineered in Switzerland, the Preci-Dip 850 Series pin header matches industrial and laboratory requirements where precision and durability are critical. It is ideal for applications in manufacturing, testing equipment, communications hardware, and general electronics assembly.

High-quality fibreglass reinforced polyethylene terephthalate housing. Brass, tin-plated male contacts for enhanced conductivity. Standard 1.27 mm pin pitch in a single row. Operating temperature range from -55°C to 125°C.

Rated for 1A current and 150V voltage. Through-hole solder mount for stable connection. Unshrouded design for easy pin access. Compact size supports tight PCB layouts. Swiss engineered for high reliability. Applicable in industrial, laboratory, and manufacturing settings.
