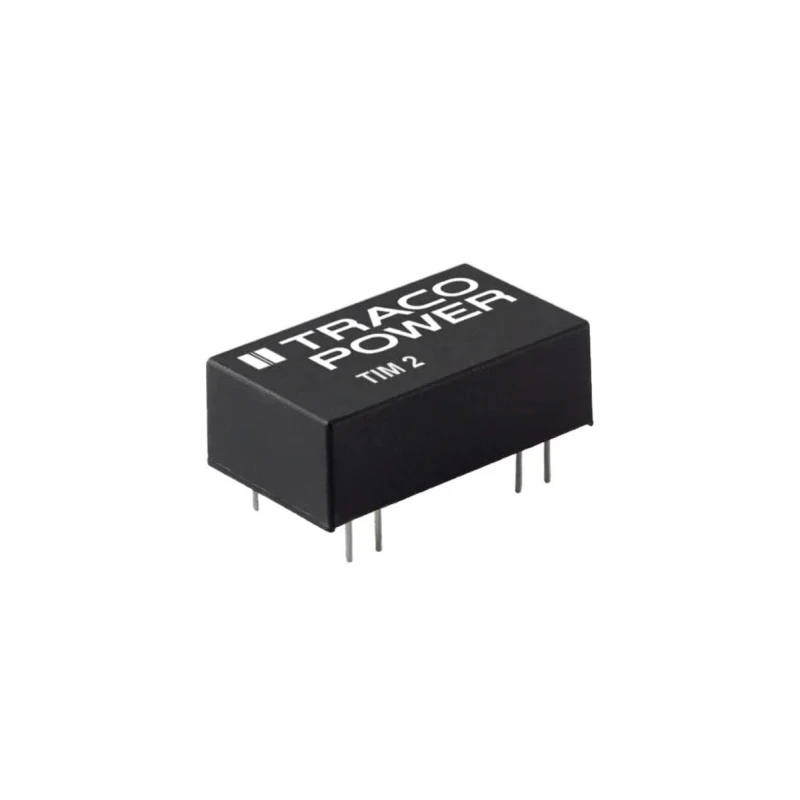

TRACOPOWER TIM 2 Medical/Reinforced I/O-Isolation DC/DC Converter 12V dc 167mA 2W Through Hole TIM 2-0912

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER TIM 2 Medical/Reinforced I/O-Isolation DC/DC Converter 12V dc 167mA 2W Through Hole TIM 2-0912

Name: TRACOPOWER TIM 2 Medical/Reinforced I/O-Isolation DC/DC Converter 12V dc 167mA 2W Through Hole TIM 2-0912
Brand: TRACOPOWER
SKU: 214992
Price: 444.59 USD
Availability: InStock



Category DC-DC Converter Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters TRACOPOWER TIM 2 DC/DC Converter, 12V dc/ 167 mA
Brand	TRACOPOWER
Efficiency	81%
Length	24.3mm
Model	TIM 2-0912
Depth	10.2mm
Width	14.4mm
Mount Type	Through Hole
Series	TIM 2
Maximum Operating Temperature	+105°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	6809000h
Number of outputs	1
Maximum Output Power	2W
Maximum Input Voltage	12V dc
Minimum Input Voltage	4.5V
Number of Pins	7
Output Voltage 1	12V dc
Output Current 1	167mA
Isolation Voltage	5kV ac

Key Features

This DC/DC converter features a compact DIP-16 package designed for medical and reinforced I/O-isolation applications.
Input voltage supports a wide range from 4.5V minimum to 12V maximum for versatile operation.
Isolation voltage up to 5000 VAC rms ensures high electrical safety compliance.
Efficient operation with an 81% efficiency rating and MTBF of 6,809,000 hours for reliable performance.
Rated for operation between -40°C and +105°C ambient temperatures suitable for demanding environments.
The package size measures 24.3mm length, 14.4mm width, and 10.2mm depth enabling easy PCB integration.
Includes certification to IEC/ES 60601-1 3rd edition and quality standards ISO 13485 and IPC-A-610 level 3.
Designed for medical, laboratory equipment, industrial, and power supply applications requiring reinforced safety isolation.

Product Description

TRACOPOWER TIM 2-0912 is a medical and reinforced I/O-isolation DC/DC converter designed for compact and safe power supply solutions delivering a 12V dc output at 167mA with a maximum power rating of 2W.

This model features a through hole DIP-16 package that supports an input voltage range from 4.5V to 12V, making it suitable for a variety of industrial and medical device applications.

Constructed to provide an isolation voltage rating of 5000 VAC rms, TIM 2-0912 ensures high electrical isolation safety between input and output circuits, compliant with IEC/ES 60601-1 3rd edition certification and reinforced for use in sensitive medical environments.

With an efficiency of 81% and a mean time between failures (MTBF) of 6,809,000 hours, this converter promises long operational reliability and stable performance across a temperature range of -40°C to +105°C.

Its small form factor (24.3mm length, 14.4mm width, 10.2mm depth) allows easy integration on printed circuit boards (PCBs) in tight spaces. The robust design includes an input filter that meets the EN55022 Class A standard, ensuring electromagnetic compliance.

This DC/DC converter is ideal for industrial equipment, medical instrumentation, laboratory devices, and applications requiring reinforced I/O isolation. The unit is backed by a 35-year product warranty highlighting TRACOPOWER’s commitment to quality and longevity.

Designed to handle 2:1 input voltage ratios with extended low input ranges, TIM 2-0912 supports various input voltages including 4.5-12V, 9-18V, 18-36V, and 36-75V variants. Typical output voltages include 5V, 12V, 15V, 24V, and ±12/±15V DC, catering to diverse power requirements.

With its developed compliance and reinforced safety features, this converter is an excellent choice for applications where high reliability and safety are crucial. Explore additional TRACOPOWER DC/DC converters and other power supply solutions on EnvMart for comprehensive industrial and medical power system integration.
