| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.7mm |
| Model | BZX384-B8V2,115 |
| Mount Type | Surface |
| Series | BZX384 |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 2.4 to 75 V (E24 range) |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 700nA |
| Nominal Zener Voltage Vz | 8V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 15Ω |
| Typical Voltage Temperature Coefficient | 4.6mV/K |
| Total power dissipation | max. 300 mW |
| Non-repetitive Peak reverse power dissipation | max. 40 W |
| Two tolerance series | +-2pct and approx. +-5pct |

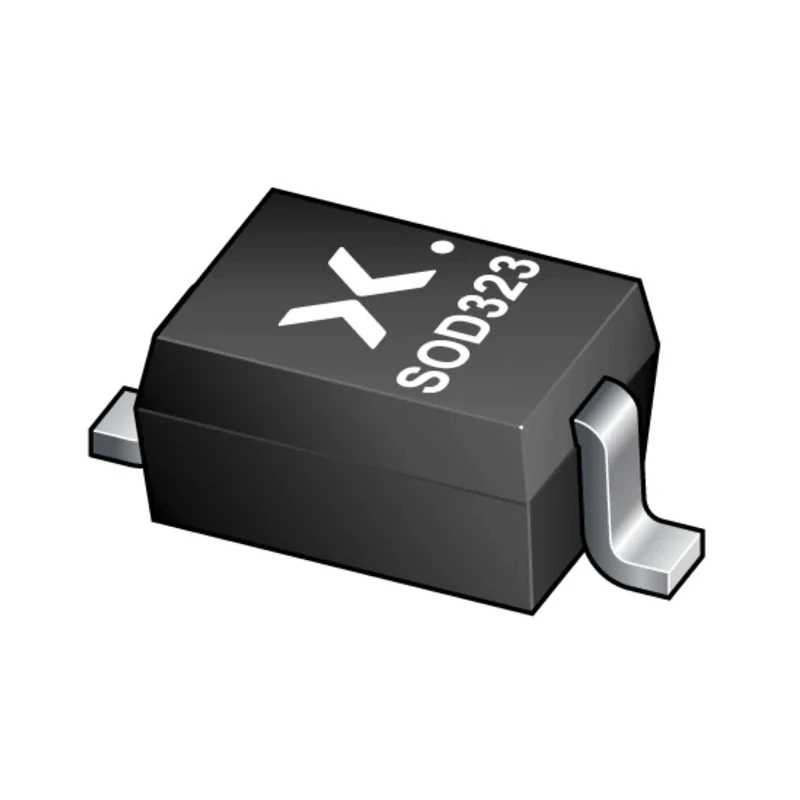

Nexperia BZX384-B8V2,115 is a single-element 8 V Zener diode designed as a voltage regulator with a maximum power dissipation of 300 mW. Encapsulated in a compact surface mount 2-pin SOD-323 package, it caters to precise voltage regulation needs in electronic circuits.
This diode operates reliably over a temperature range from -65°C to 150°C, supporting applications requiring robust thermal tolerance. It features a low maximum reverse leakage current of 700 nA and a maximum Zener impedance of 15 ohms at 5 mA test current, ensuring efficiency and stability in voltage regulation.
Compliant with the AEC-Q101 automotive standard, this device is suitable for demanding automotive environments. Its typical voltage temperature coefficient of 4.6 mV/K helps maintain voltage consistency under thermal variations.
The physical package dimensions are 2.7 mm in length and 1.1 mm in height, suitable for surface-mount technology on compact PCB layouts. The diode's maximum non-repetitive peak reverse power dissipation is rated at 40 W, providing transient protection capacity.
This Zener diode is part of the BZX384 series, known for its normalized E24 ±2 % voltage tolerance range and working voltages between 2.4 and 75 V, making it versatile for various electronic semiconductor designs.
The diode is constructed for voltage regulation in electronic circuits. The surface mount SOD-323 package allows space-efficient PCB integration. It provides reliable operation in automotive and industrial applications. Voltage tolerance of ±2 % guarantees precision in voltage regulation.
High temperature and power dissipation ratings ensure durable usage.
Choose this Nexperia BZX384-B8V2,115 diode for efficient and compact voltage regulation solutions in your electronics, automotive, and industrial semiconductor projects. Explore EnvMart's extensive range of electronic components for complementary products.
