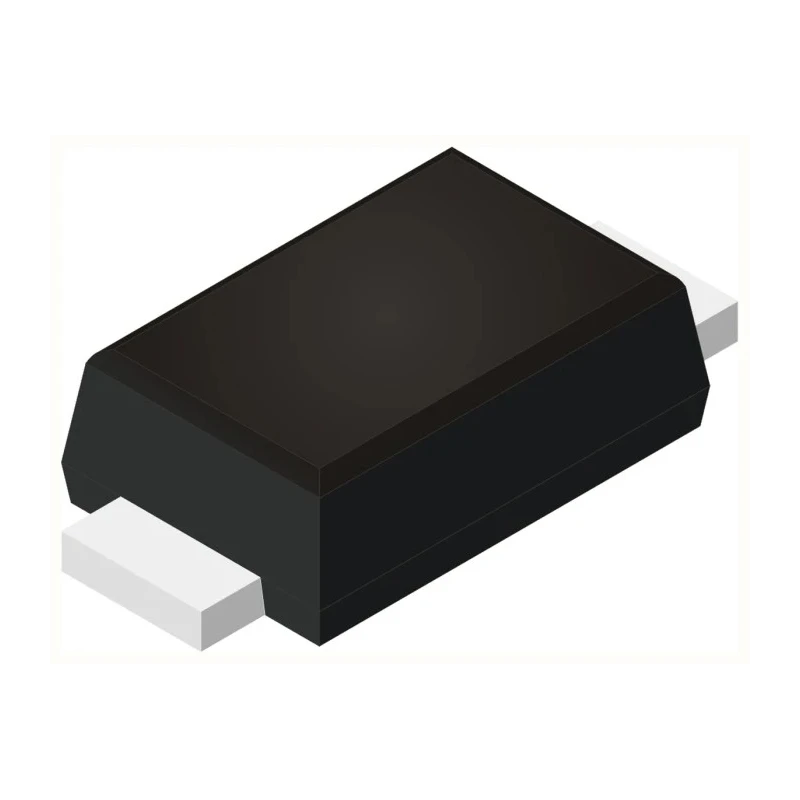

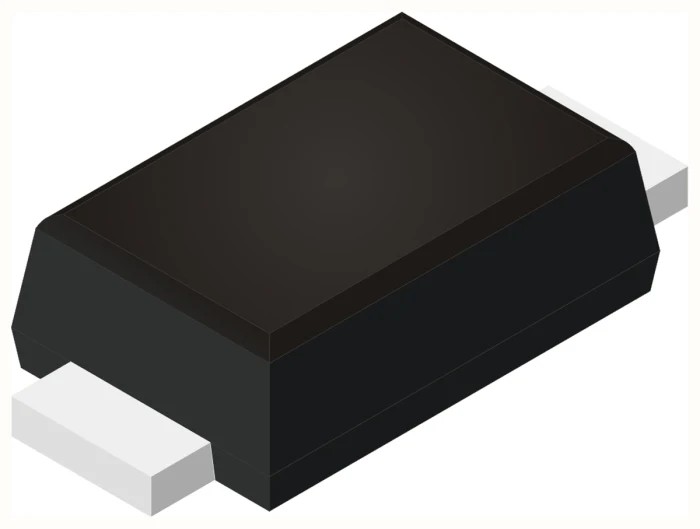

ROHM Schottky Diode 30 V 2 A Surface Mount SOD-123FL Package RBR2MM30BTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | RBR2MM30BTR |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 80μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.49V |
Key Features
- Designed for surface mount applications with SOD-123FL package type.
- Maximum continuous forward current of 2 amperes ensures reliable performance.
- Peak reverse repetitive voltage rated at 30 volts for robust rectification.
- Low forward voltage drop of 0.49 volts enhances efficiency.
- Peak non-repetitive forward surge current up to 30 amperes for transient tolerance.
- Compact dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height.
- Maximum operating temperature of 150°C suitable for demanding environments.
- High reliability small power mold type (PMDU) construction.
Product Description
The ROHM RBR2MM30BTR is a high-reliability Schottky diode designed for surface mount applications, housed in a compact SOD-123FL package. It offers a maximum continuous forward current of 2 A and a reverse repetitive voltage rating of 30 V, making it suitable for power rectification tasks in industrial, electronic, and automotive circuits.
This diode features a low forward voltage of 0.49 V, which minimizes power loss and heat generation, enhancing overall system efficiency. It can withstand peak non-repetitive forward surge currents up to 30 A, providing robustness against transient current spikes.
With dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height, the device is ideal for compact PCB layouts requiring reliable diode performance. The maximum operating temperature rating of 150°C ensures stable operation in challenging thermal environments.
The diode is configured as a single diode with two pins, designed to facilitate straightforward integration in surface mount assembly processes. Its small power mold (PMDU) type construction ensures durability and long-term reliability.
The product complies with the Restriction of Hazardous Substances (RoHS) standard, aligning with environmental safety requirements. Designed for surface mount applications with SOD-123FL package type. Maximum continuous forward current of 2 amperes ensures reliable performance.
Peak reverse repetitive voltage rated at 30 volts for robust rectification. Low forward voltage drop of 0.49 volts enhances efficiency. Peak non-repetitive forward surge current up to 30 amperes for transient tolerance. Compact dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height.
Maximum operating temperature of 150°C suitable for demanding environments. High reliability small power mold type (PMDU) construction. Compliant with RoHS environmental standards. Two-pin single diode configuration optimized for power and switching applications.
This ROHM diode is well suited for industrial electronics, power supply design, automotive electronics, and embedded systems requiring efficient and reliable Schottky rectification. Explore more Schottky diodes and rectifiers to meet diverse application needs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 amperes.
The peak reverse repetitive voltage rating is 30 volts.
The forward voltage drop is 0.49 volts, which enhances efficiency.
The diode has dimensions of 2.7 mm in length, 1.7 mm in width, and 0.9 mm in height.
The maximum operating temperature is 150°C, making it suitable for demanding environments.
The peak non-repetitive forward surge current is rated at 30 amperes.
This diode is housed in a SOD-123FL package type, designed for surface mount applications.
The diode features a two-pin configuration, optimized for easy integration.
This model is a Schottky rectifier, suitable for power and switching applications.
Yes, it complies with the RoHS environmental standards.
The peak reverse current is rated at 80μA.
This diode is suitable for industrial electronics, power supply design, automotive electronics, and embedded systems.
